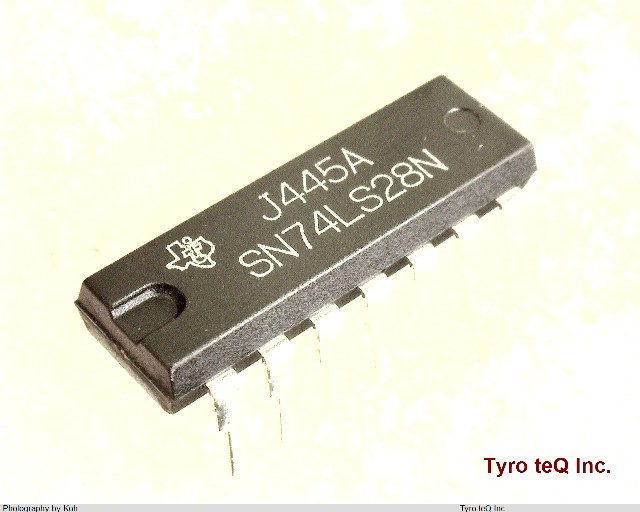

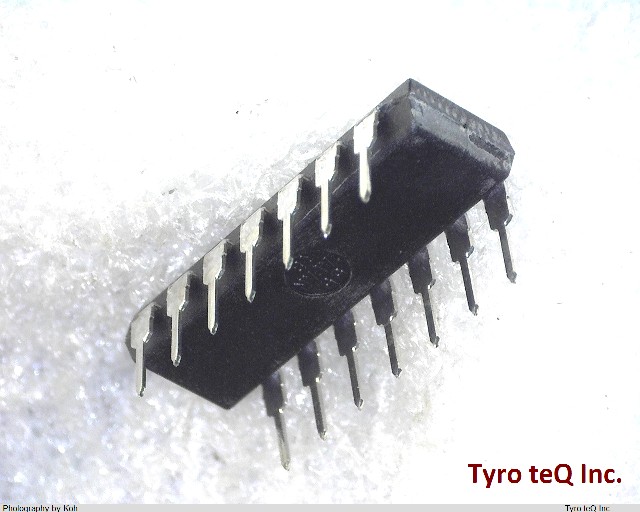

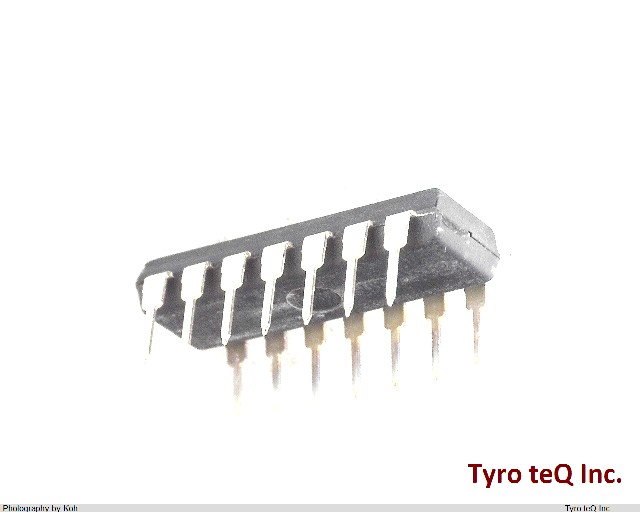

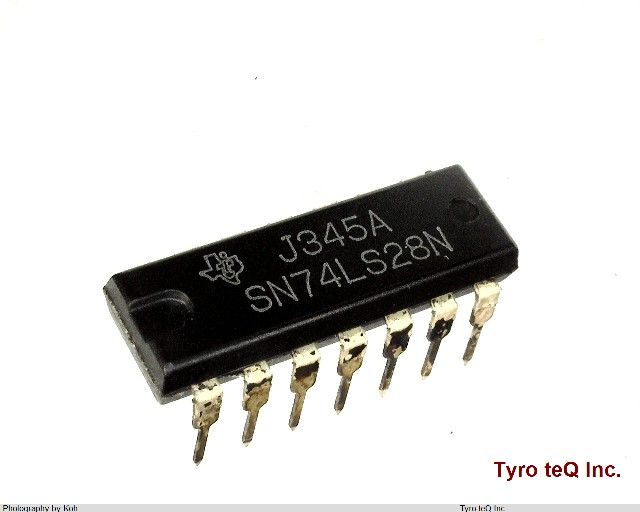

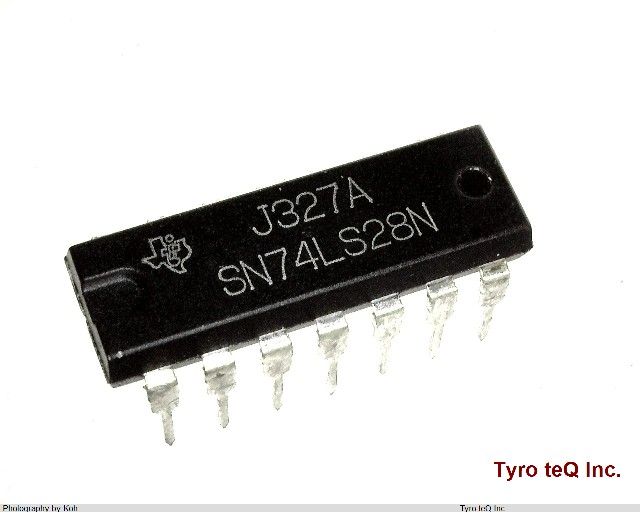

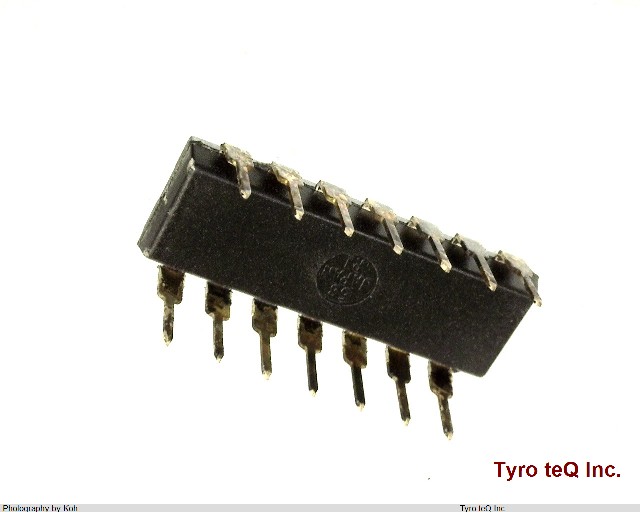

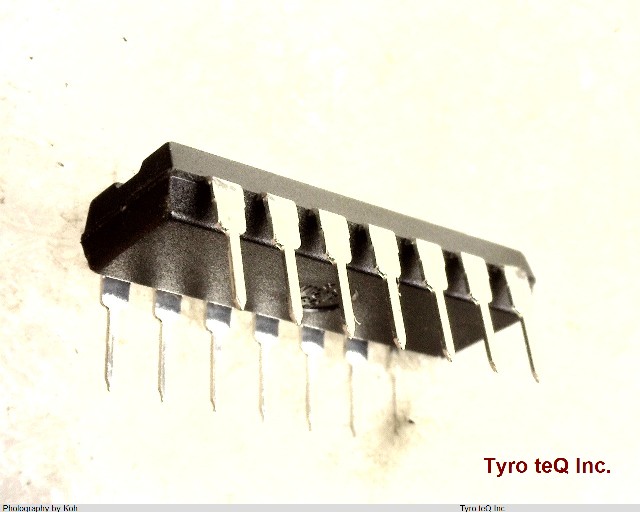

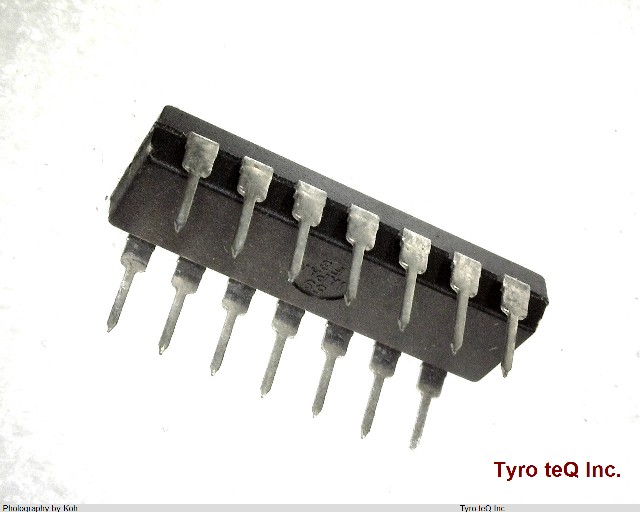

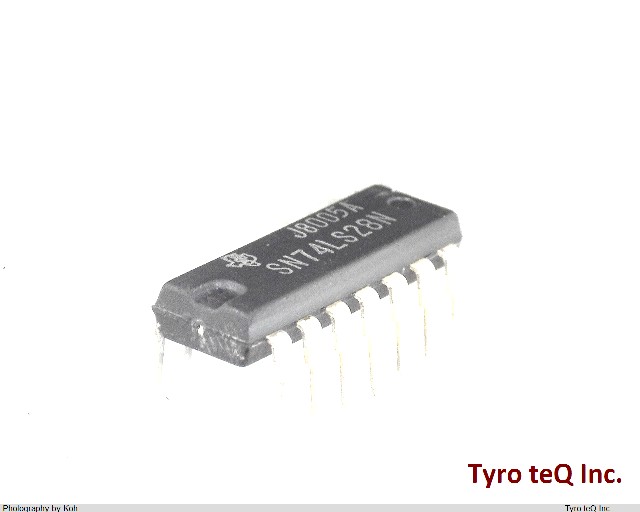

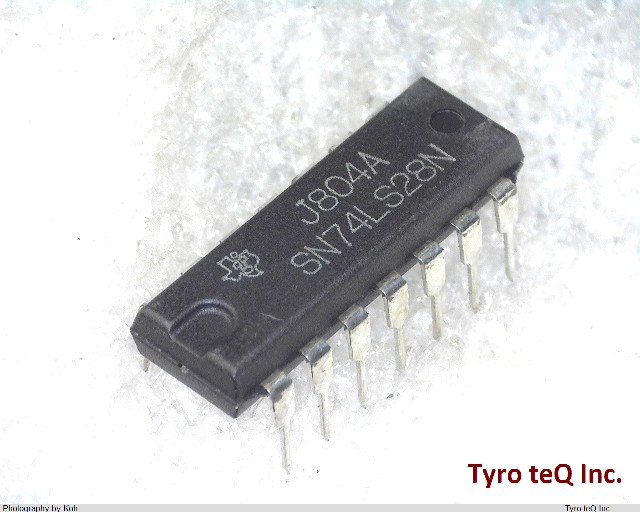

SN74LS28N

Name: SN74LS28N
Brand: TI
SKU: 290036836-0000-0000-0000

SN74LS28N - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS28N の詳細情報

型番	SN74LS28N
メーカー	TI
種別	アドバンストLS-TTL
Additional Feature	IOH =1.2MA @ VOH = 3.5V; IOL = 24MA @ VOL = 0.5V
Family	LS
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	18.86 mm
Load Capacitance (CL)	45 pF
Logic IC Type	NOR GATE
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	13.8 mA
Propagation Delay (tpd)	24 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	4.69 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
