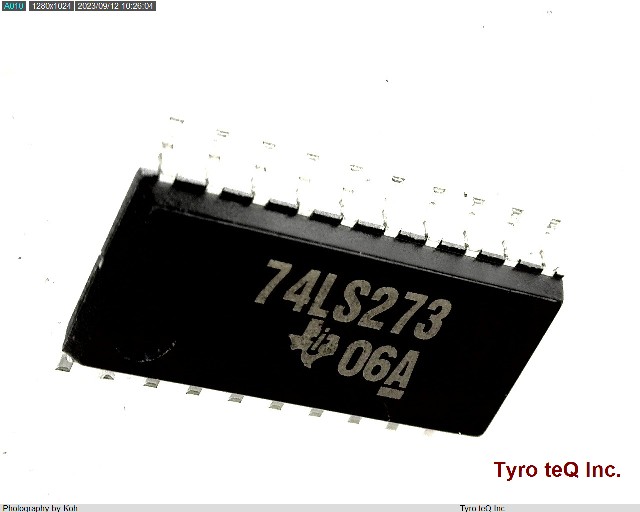

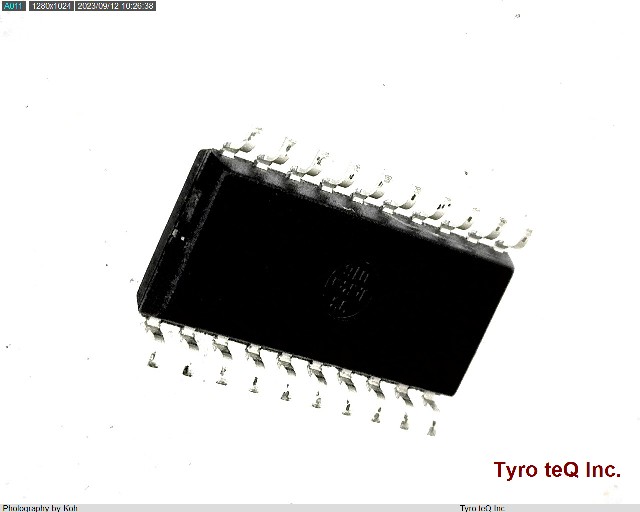

SN74LS273NSR データシート

Name: SN74LS273NSR
Brand: TI
SKU: 290002098-0000-0000-0000

SN74LS273NSR - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：SOP | 梱包：Tape and reel|動作温度 0℃ to 70℃

SN74LS273NSR の詳細情報

型番	SN74LS273NSR
メーカー	TI
種別	アドバンストLS-TTL
データシート
Family	LS
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	12.6 mm
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	30000000 Hz
Max I(ol)	0.008 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	27 mA
Propagation Delay (tpd)	27 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	5.3 mm
fmax-Min	30 MHz
