SN74LS181N データシート

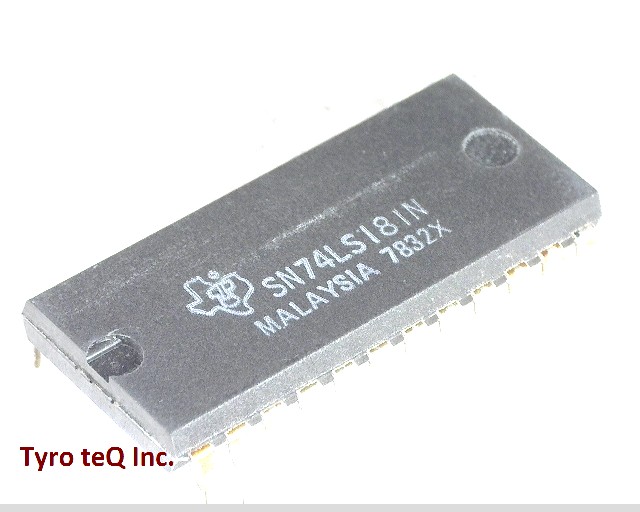

Name: SN74LS181N
Brand: TI
SKU: 290012422-0000-0000-0000

SN74LS181N - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS181N の詳細情報

型番	SN74LS181N
メーカー	TI
種別	アドバンストLS-TTL
データシート
Additional Feature	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS
Family	LS
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	31.75 mm
Load Capacitance (CL)	15 pF
Logic IC Type	ARITHMETIC LOGIC UNIT
Number of Bits	4
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	37 mA
Propagation Delay (tpd)	41 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Arithmetic Circuits
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
