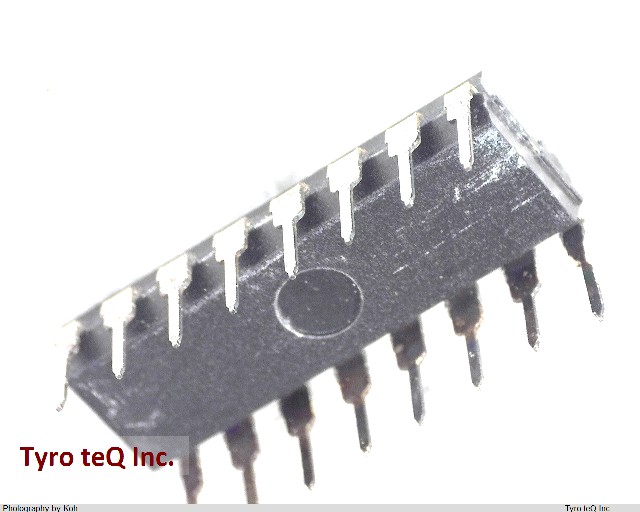

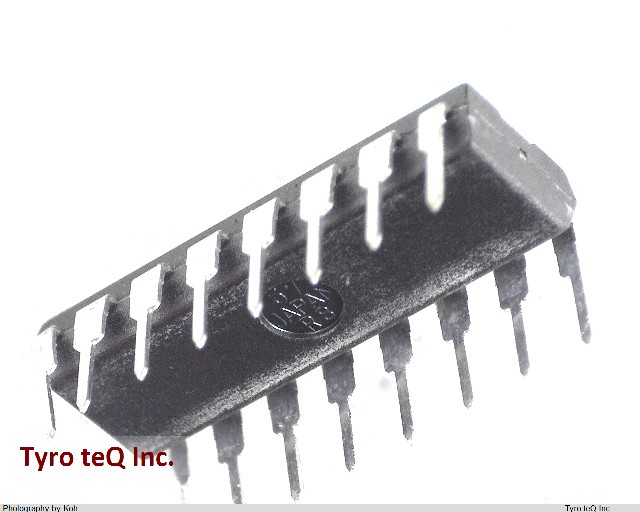

SN74LS139N データシート

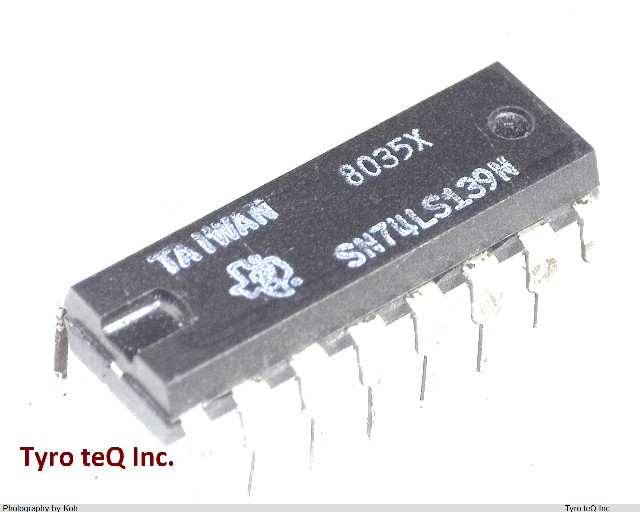

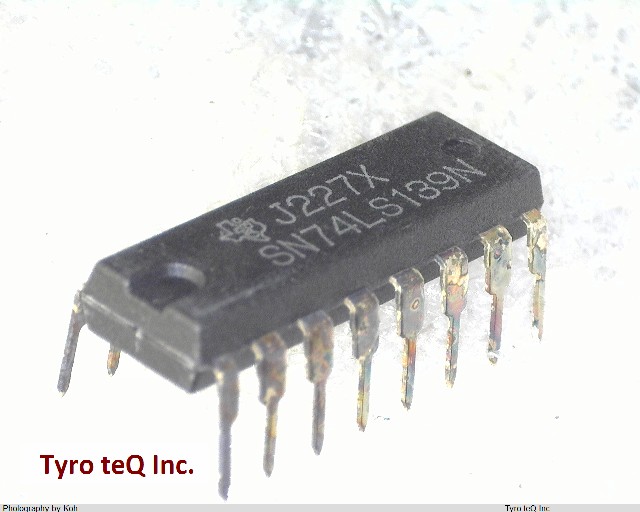

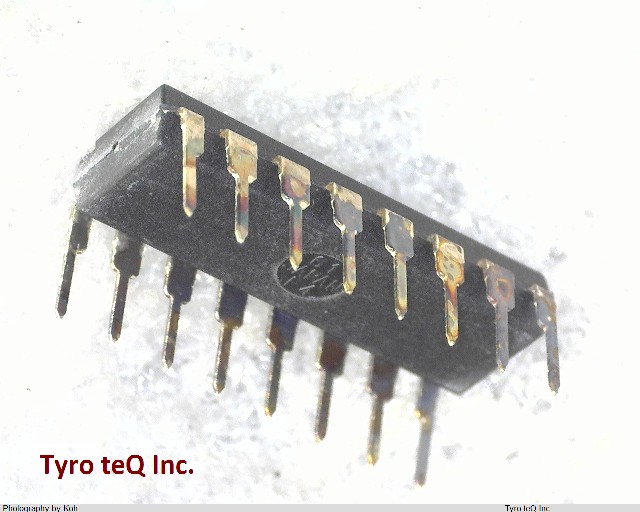

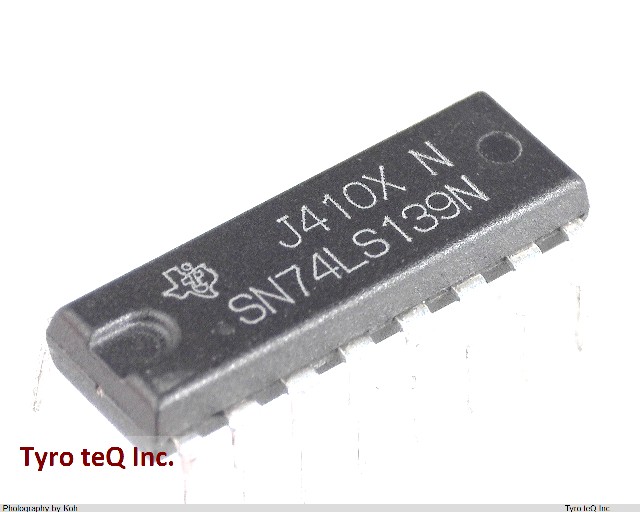

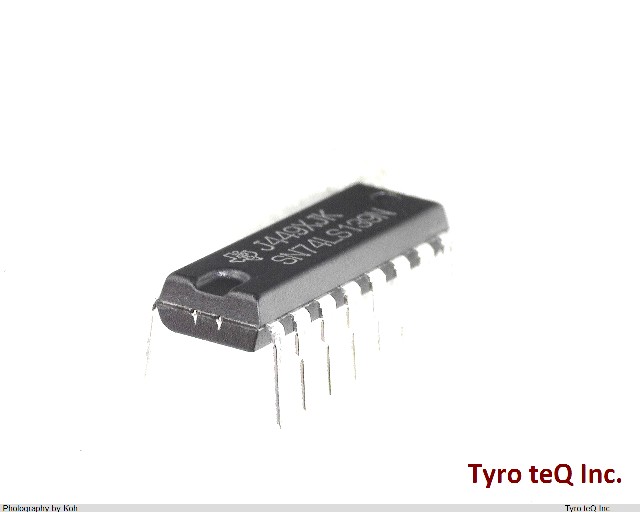

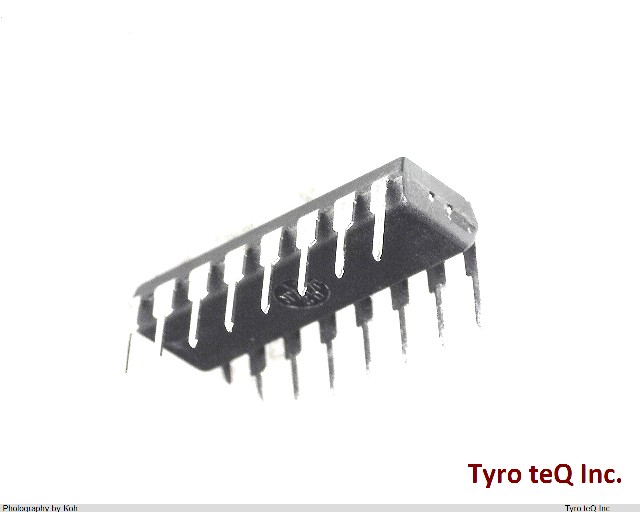

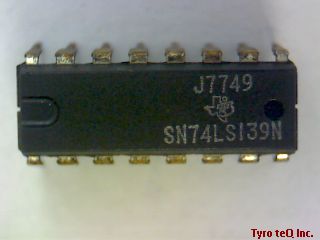

Name: SN74LS139N
Brand: TI
SKU: 290036563-0000-0000-0000

SN74LS139N - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS139N の詳細情報

型番	SN74LS139N
メーカー	TI
種別	アドバンストLS-TTL
データシート
Family	LS
Input Conditioning	STANDARD
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.175 mm
Load Capacitance (CL)	15 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.008 Amp
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	235
Power Supplies	5 V
Power Supply Current-Max (ICC)	11 mA
Prop. Delay@Nom-Sup	38 ns
Propagation Delay (tpd)	38 ns
Qualification Status	Not Qualified
Seated Height-Max	4.44 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
