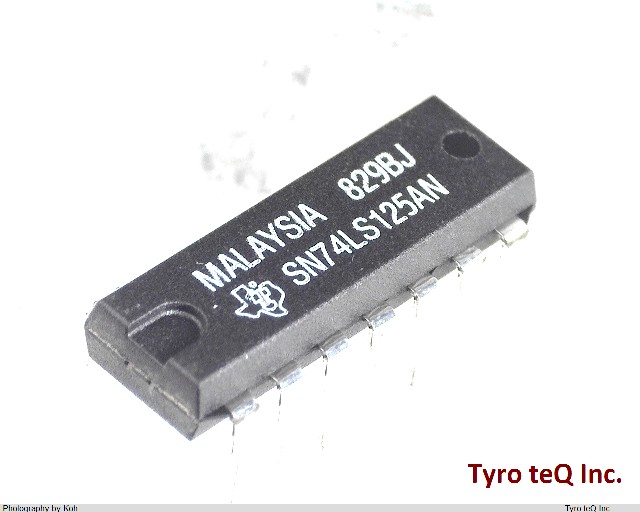

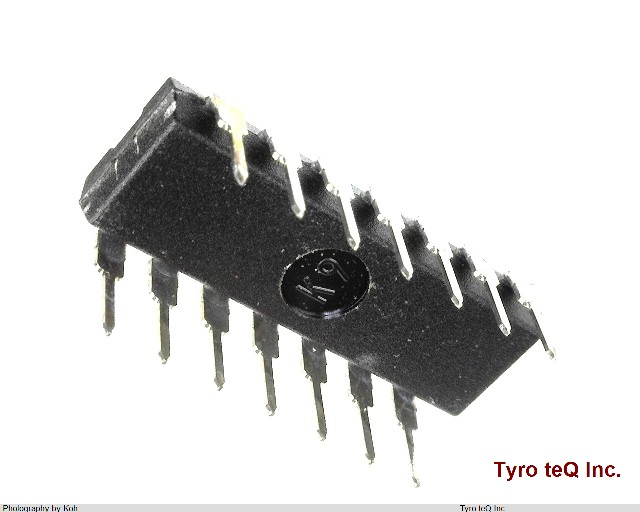

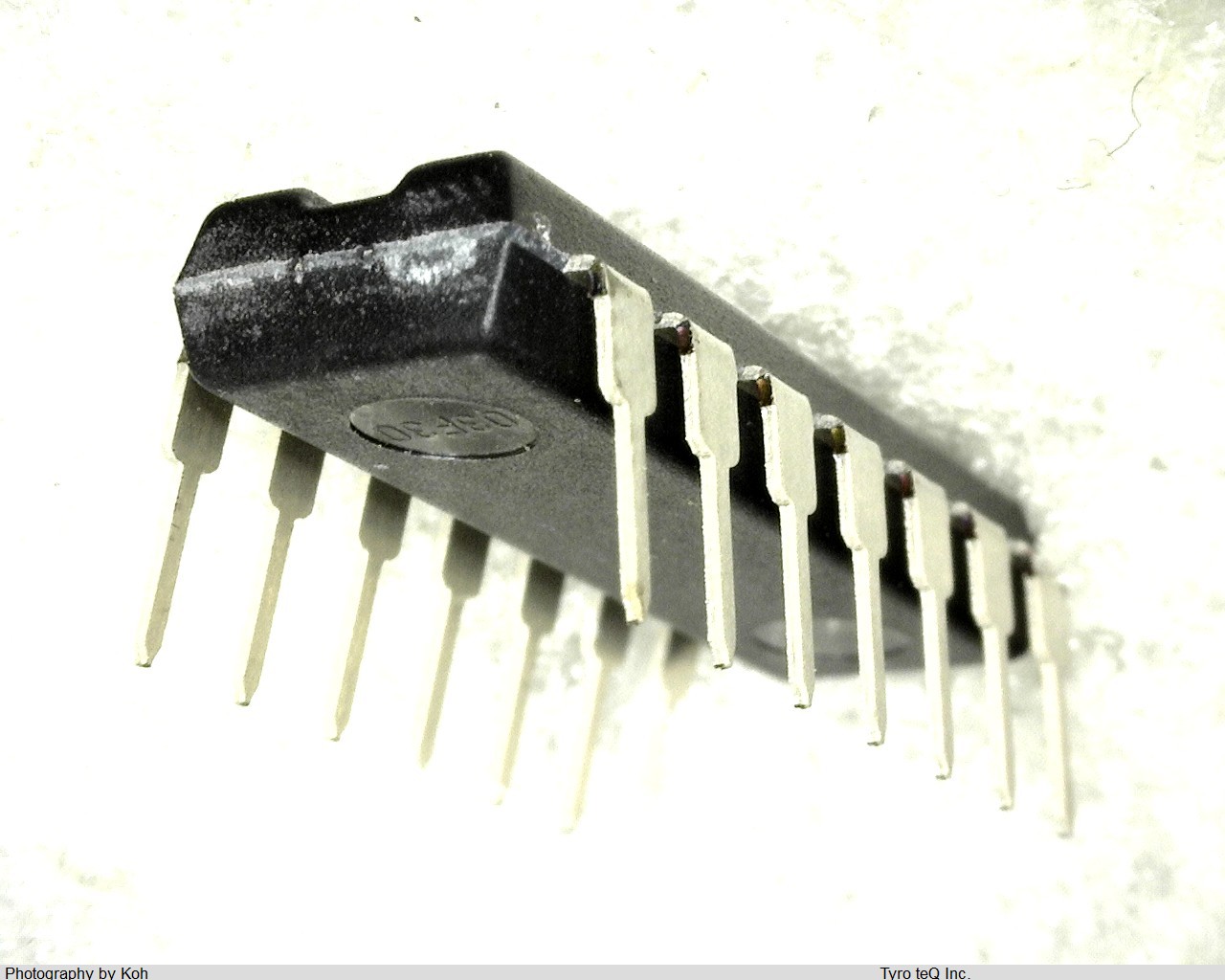

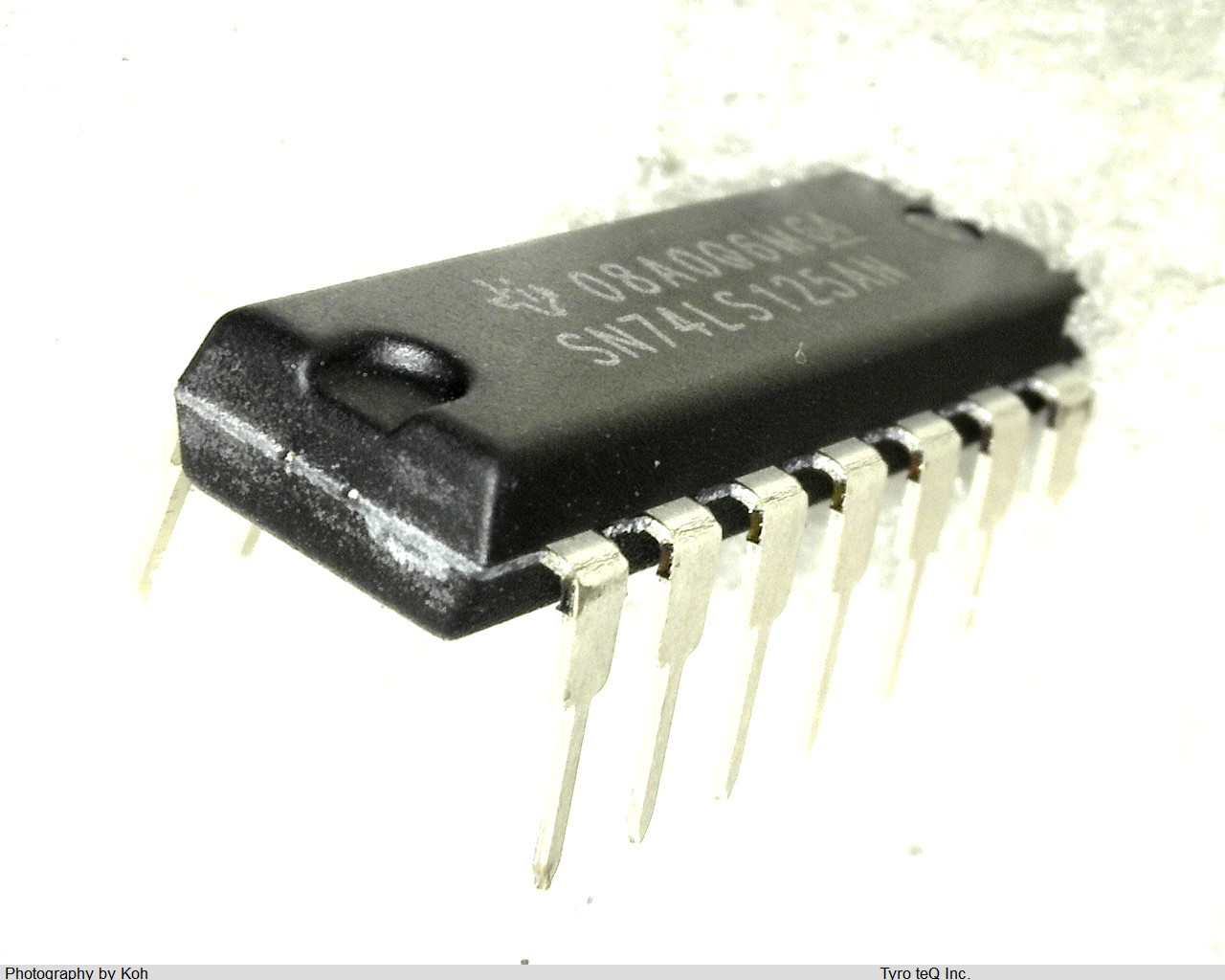

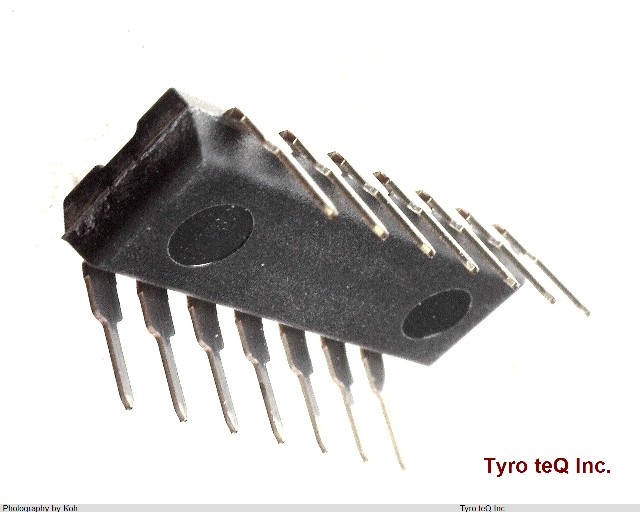

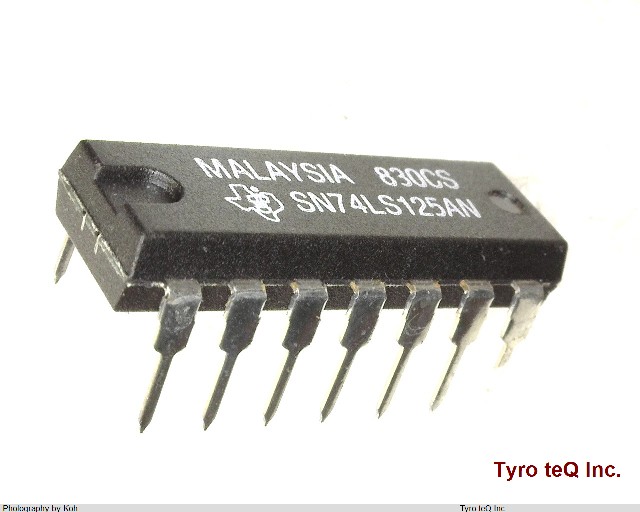

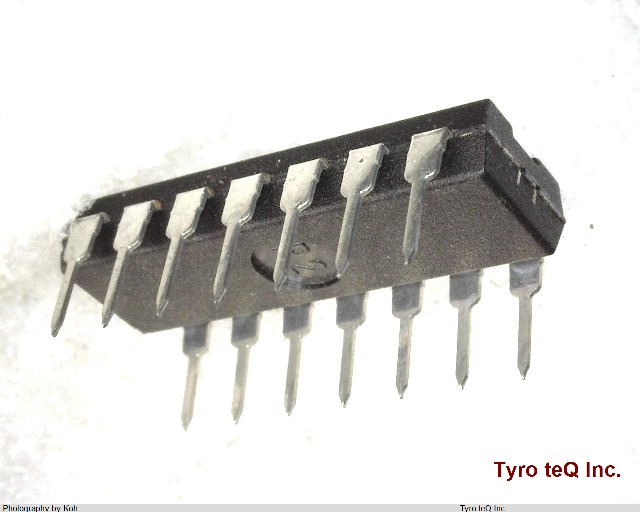

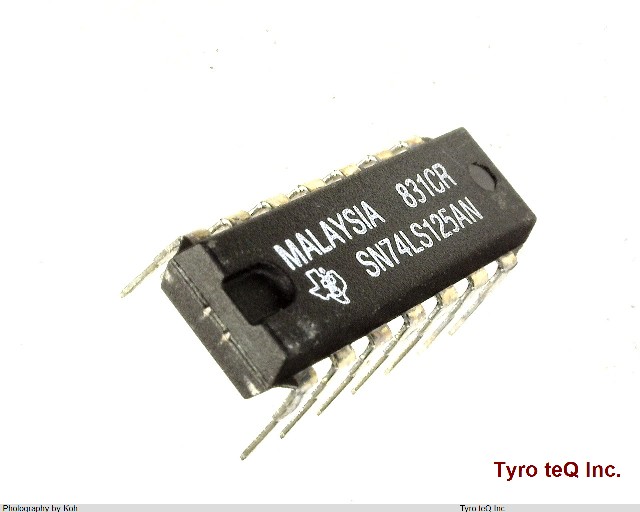

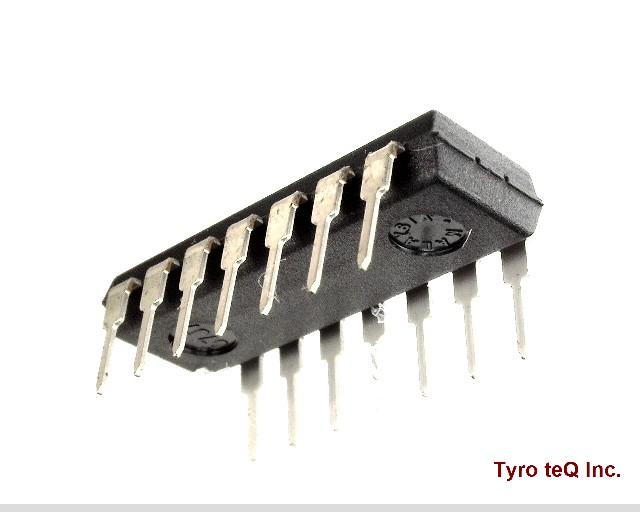

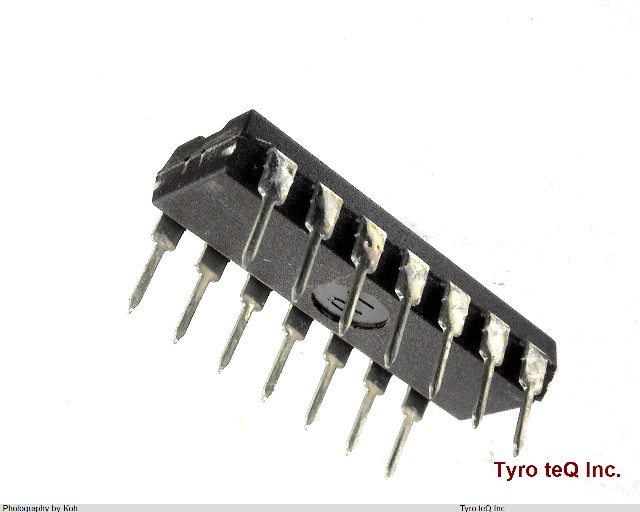

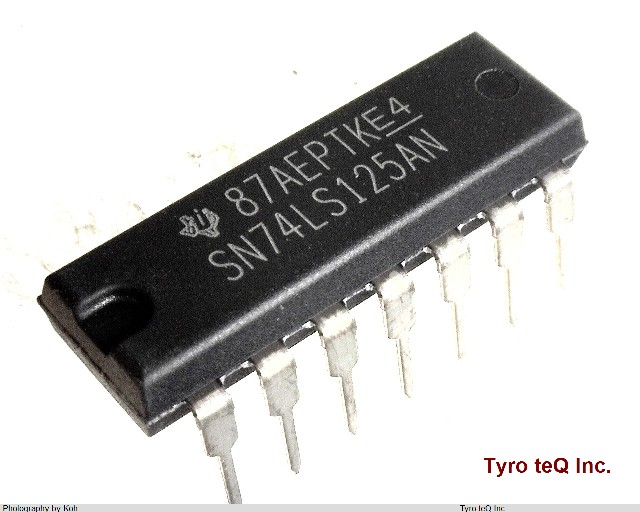

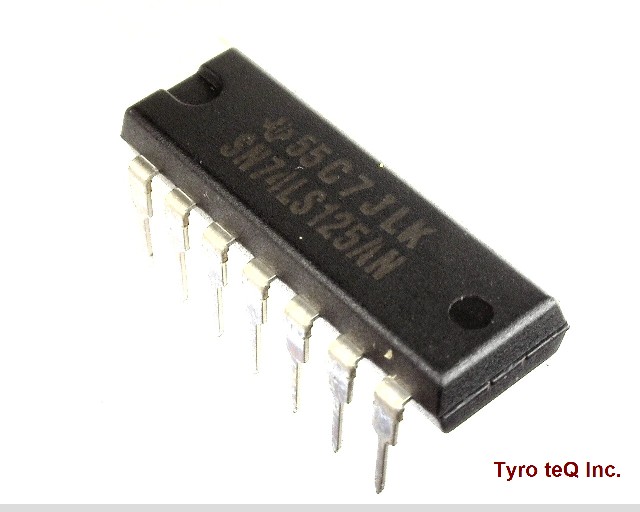

SN74LS125AN データシート

Name: SN74LS125AN
Brand: TI
SKU: 290001191-0000-0000-0000

SN74LS125AN - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS125AN の詳細情報

型番	SN74LS125AN
メーカー	TI
種別	アドバンストLS-TTL
データシート
Control Type	ENABLE LOW
Count Direction	UNIDIRECTIONAL
Family	LS
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	10.2 mm
Load Capacitance (CL)	45 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	1
Number of Ports	2
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	235
Power Supplies	5 V
Power Supply Current-Max (ICC)	20 mA
Prop. Delay@Nom-Sup	18 ns
Propagation Delay (tpd)	18 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Bus Driver/Transceiver
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	5.3 mm
