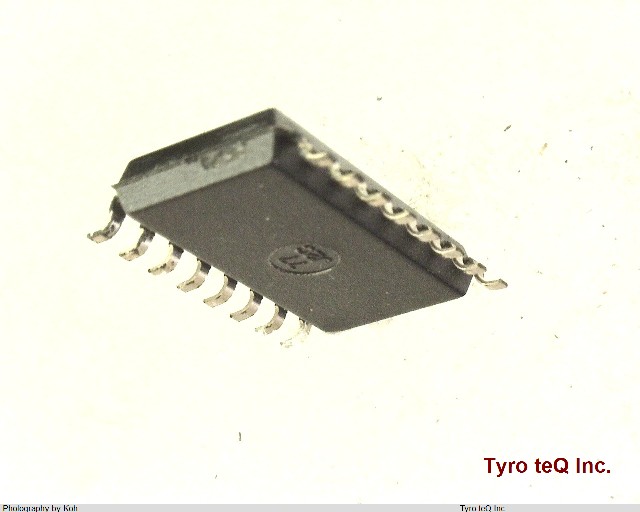

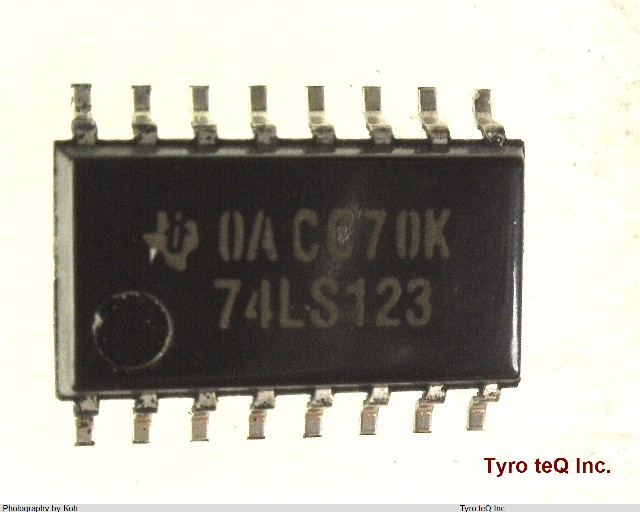

SN74LS123D データシート

Name: SN74LS123D
Brand: TI
SKU: 290012377-0000-0000-0000

SN74LS123D - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：SOIC | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS123D の詳細情報

型番	SN74LS123D
メーカー	TI
種別	アドバンストLS-TTL
データシート
Additional Feature	RETRIGGERABLE
Family	LS
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	6.2 mm
Load Capacitance (CL)	15 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Max I(ol)	0.008 Amp
Moisture Sensitivity Level	1
Number of Bits	2
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	235
Power Supplies	5 V
Power Supply Current-Max (ICC)	20 mA
Propagation Delay (tpd)	56 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
