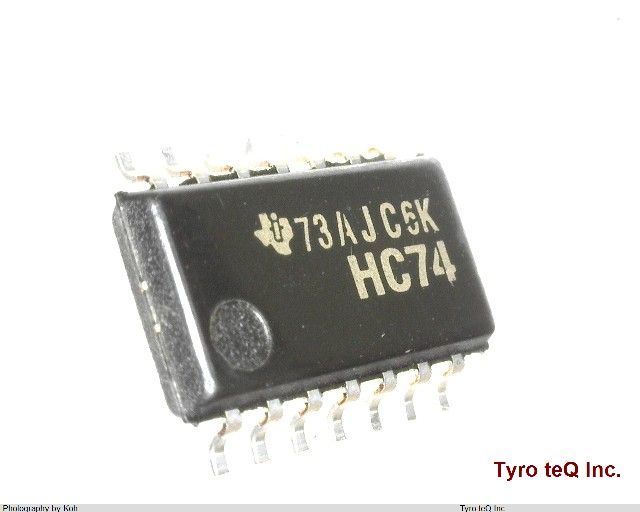

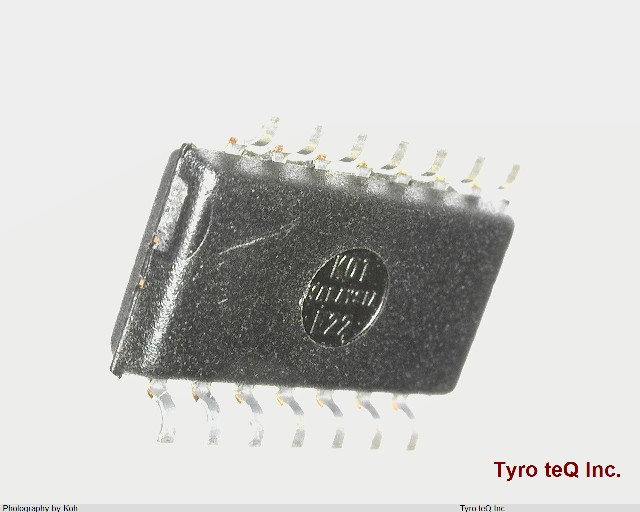

SN74HC74D データシート

Name: SN74HC74D
Brand: TI
SKU: 290012339-0000-0000-0000

SN74HC74D - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：SOIC | 梱包：Tube

SN74HC74D の詳細情報

型番	SN74HC74D
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Family	HC
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	6.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	25000000 Hz
Max I(ol)	0.004 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.04 mA
Propagation Delay (tpd)	44 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	3.9 mm
fmax-Min	25 MHz
