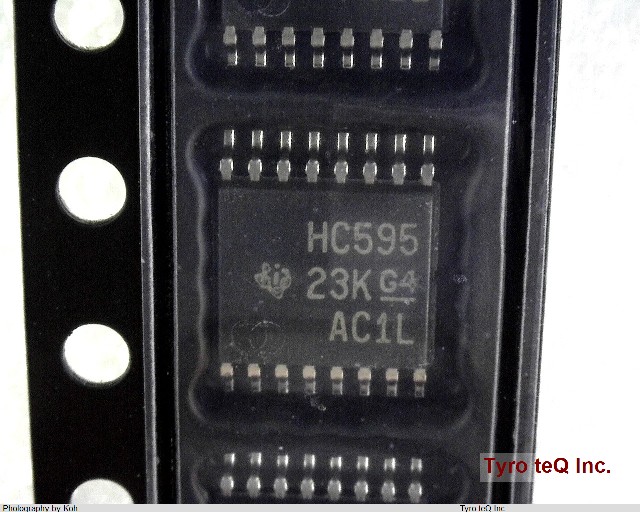

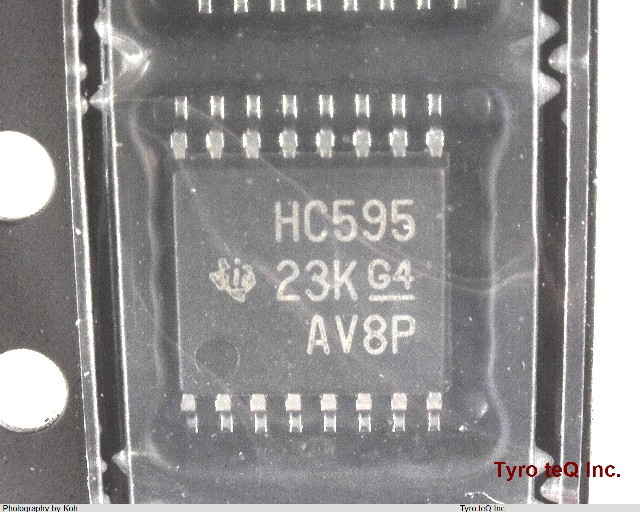

SN74HC595PW データシート

Name: SN74HC595PW
Brand: TI
SKU: 290116692-0000-0000-0000

SN74HC595PW - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ： TSSOP | 梱包：Tube

SN74HC595PW の詳細情報

型番	SN74HC595PW
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT
Count Direction	RIGHT
Family	HC
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	5 mm
Load Capacitance (CL)	150 pF
Logic IC Type	SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup	25000000 Hz
Max I(ol)	0.0078 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.08 mA
Prop. Delay@Nom-Sup	34 ns
Propagation Delay (tpd)	250 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.2 mm
Sub Category	Shift Registers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	4.4 mm
fmax-Min	29 MHz
