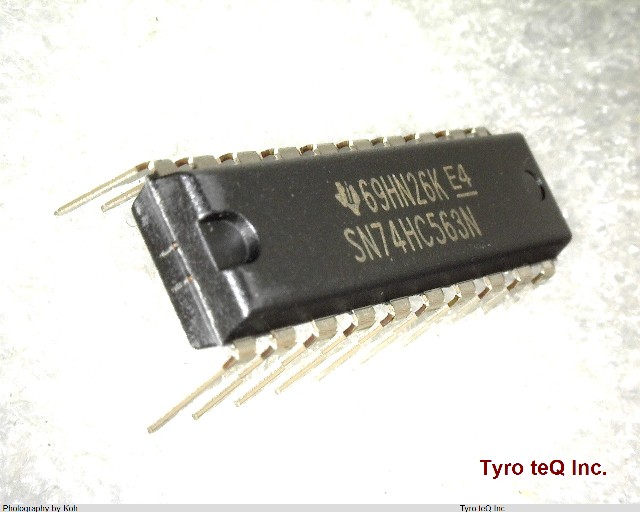

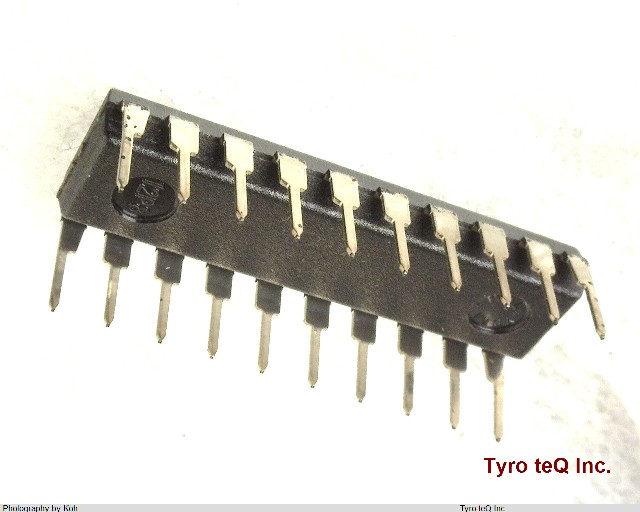

SN74HC563N データシート

Name: SN74HC563N
Brand: TI
SKU: 290012314-0000-0000-0000

SN74HC563N - TI の商品詳細ページです。
高速CMOS標準ロジックIC|パッケージ：PDIP | 梱包：Tube

22時間52分後以内に見積もり依頼を頂ければ、
04月30日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

SN74HC563N の詳細情報

型番	SN74HC563N
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	BROADSIDE VERSION OF 533
Control Type	ENABLE LOW/HIGH
Family	HC
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e4
Length	24.325 mm
Load Capacitance (CL)	150 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.006 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.08 mA
Prop. Delay@Nom-Sup	44 ns
Propagation Delay (tpd)	57 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Width	7.62 mm
