SN74HC390N データシート

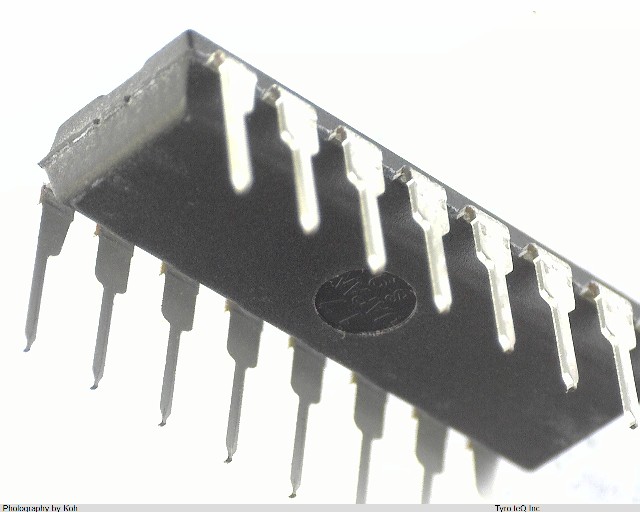

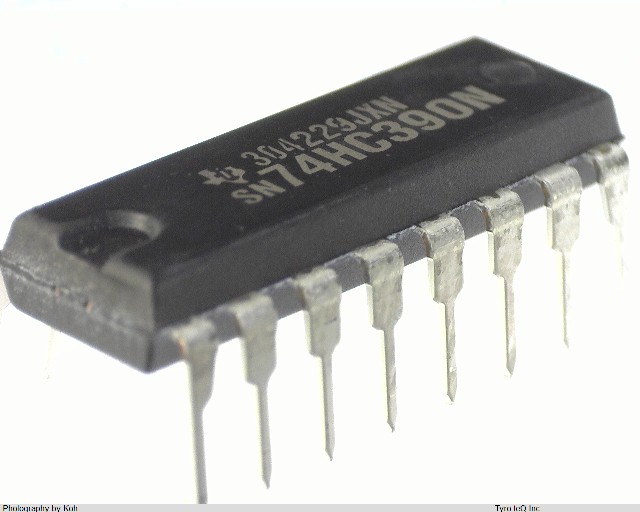

Name: SN74HC390N
Brand: TI
SKU: 290035959-0000-0000-0000

SN74HC390N - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：PDIP | 梱包：Tube

SN74HC390N の詳細情報

型番	SN74HC390N
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS
Count Direction	UP
Family	HC/UH
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.305 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	NO
Logic IC Type	DECADE COUNTER
Max Frequency@Nom-Sup	25000000 Hz
Max I(ol)	0.0052 Amp
Mode of Operation	ASYNCHRONOUS
Number of Bits	3
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Propagation Delay (tpd)	46 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	NEGATIVE EDGE
Width	7.62 mm
fmax-Min	25 MHz
