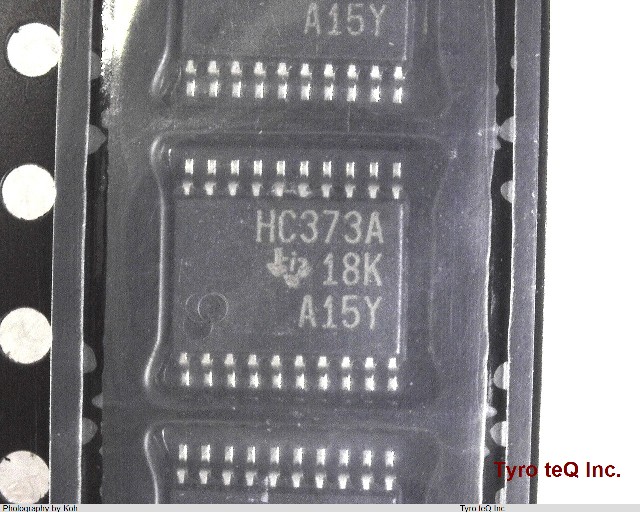

SN74HC373APWR データシート

Name: SN74HC373APWR
Brand: TI
SKU: 290001241-0000-0000-0000

SN74HC373APWR - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ： TSSOP | 梱包：Tape and reel

SN74HC373APWR の詳細情報

型番	SN74HC373APWR
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	6.5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	JBAR-KBAR FLIP-FLOP
Max I(ol)	0.006 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	31 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	FF/Latches
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
