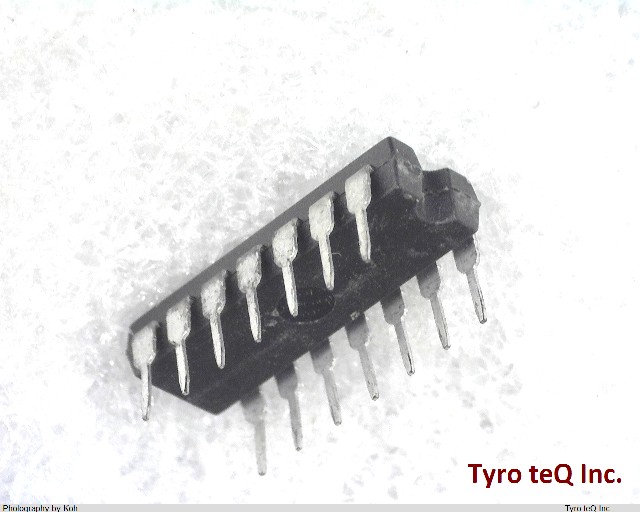

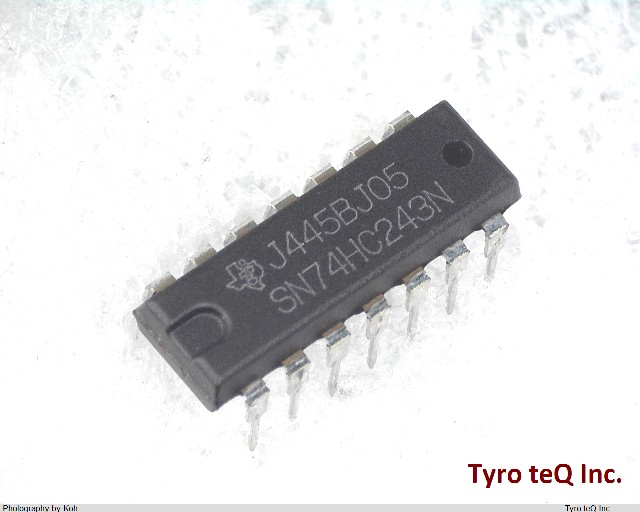

SN74HC243N データシート

Name: SN74HC243N
Brand: TI
SKU: 290035827-0000-0000-0000

SN74HC243N - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：PDIP | 梱包：Tube

SN74HC243N の詳細情報

型番	SN74HC243N
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
Control Type	INDEPENDENT CONTROL
Count Direction	BIDIRECTIONAL
Family	HC/UH
JESD-30 Code	R-PDIP-T14
Length	19.305 mm
Load Capacitance (CL)	150 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.0078 Amp
Number of Bits	4
Number of Functions	1
Number of Ports	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	38 ns
Propagation Delay (tpd)	38 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
