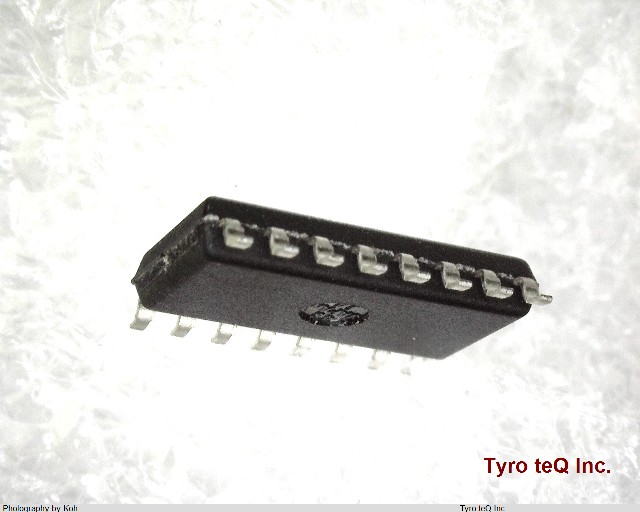

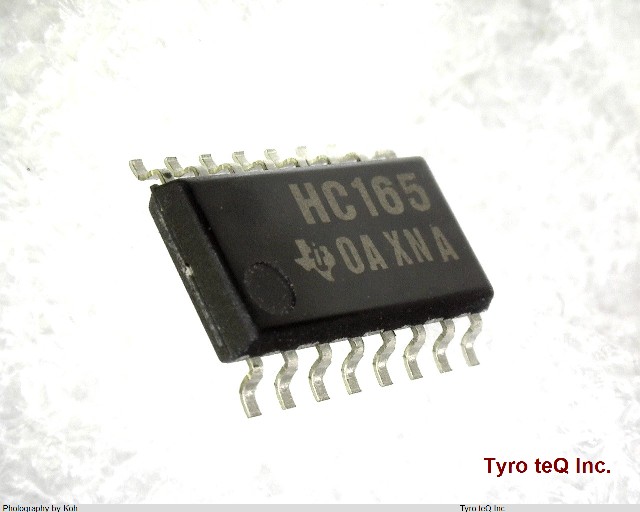

SN74HC165D データシート

Name: SN74HC165D
Brand: TI
SKU: 290012223-0000-0000-0000

SN74HC165D - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：SOIC | 梱包：Tube

SN74HC165D の詳細情報

型番	SN74HC165D
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	CLOCK INHIBIT
Count Direction	RIGHT
Family	HC/UH
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	6.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	PARALLEL IN SERIAL OUT
Max Frequency@Nom-Sup	21000000 Hz
Max I(ol)	0.0052 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.08 mA
Prop. Delay@Nom-Sup	38 ns
Propagation Delay (tpd)	38 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.75 mm
Sub Category	Shift Registers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	3.9 mm
fmax-Min	25 MHz
