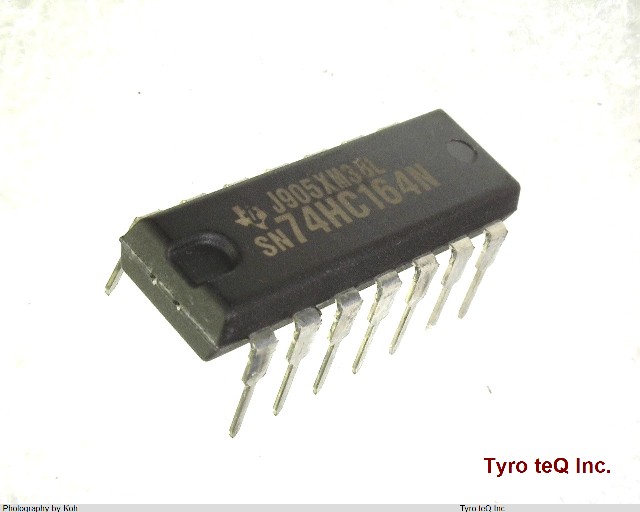

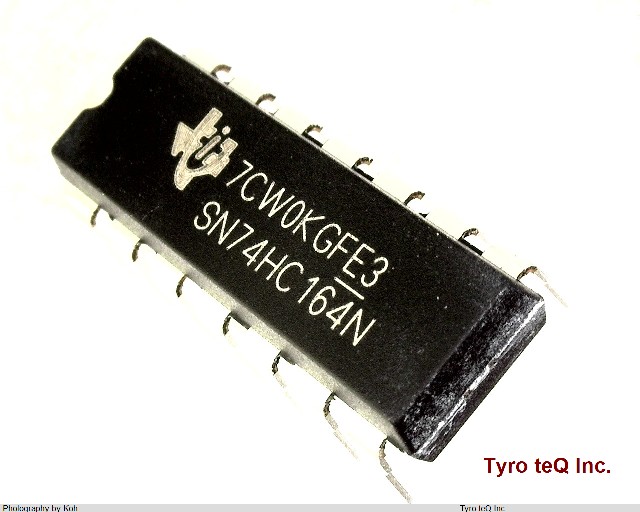

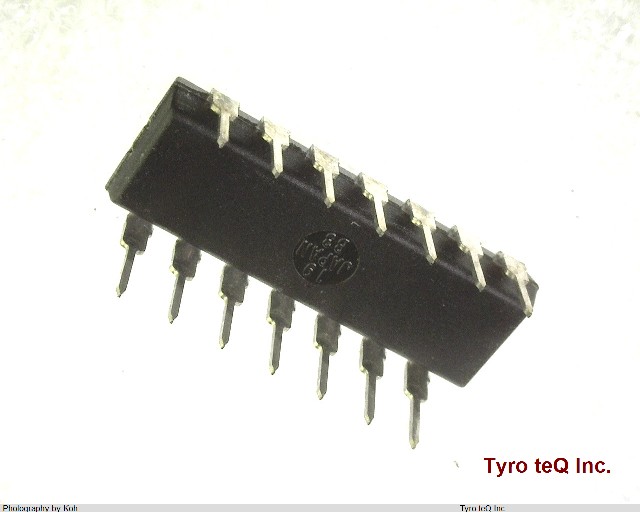

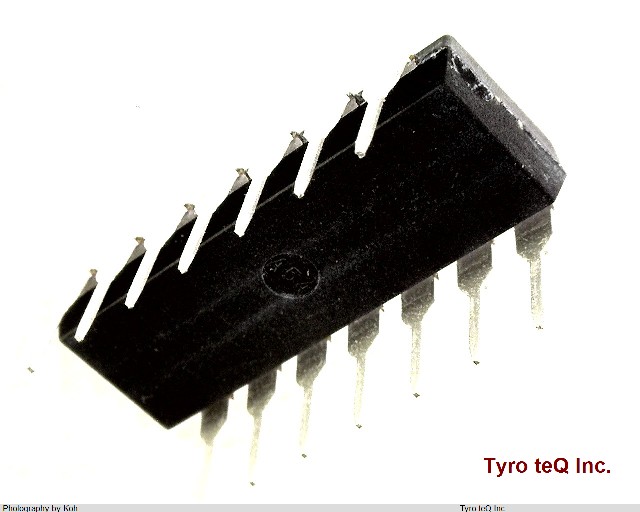

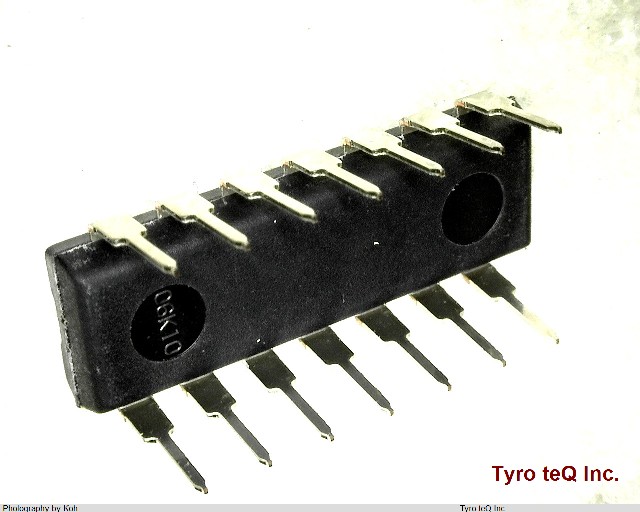

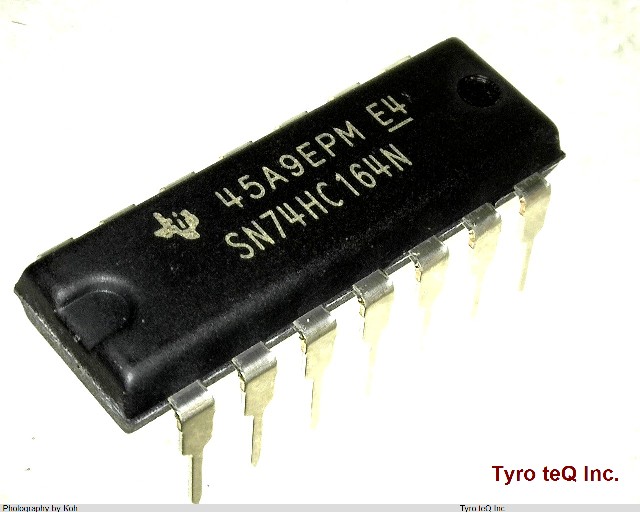

SN74HC164N データシート

Name: SN74HC164N
Brand: TI
SKU: 290035732-0000-0000-0000

SN74HC164N - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：PDIP | 梱包：Tube

SN74HC164N の詳細情報

型番	SN74HC164N
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	AND-GATED SERIAL INPUTS (A AND B)
Count Direction	RIGHT
Family	HC
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e3
Length	10.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup	5000000 Hz
Max I(ol)	0.0052 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.08 mA
Prop. Delay@Nom-Sup	38 ns
Propagation Delay (tpd)	44 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	2 mm
Sub Category	Shift Registers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	5.3 mm
fmax-Min	25 MHz
