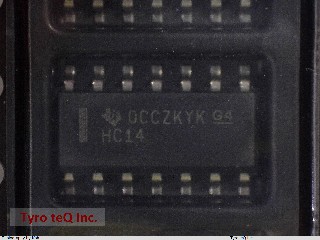

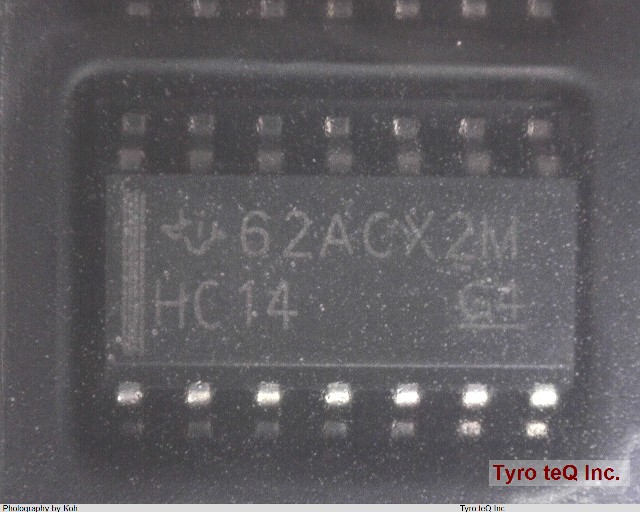

SN74HC14DR データシート

Name: SN74HC14DR
Brand: TI
SKU: 290012204-0000-0000-0000

SN74HC14DR - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：SOIC | 梱包：Tape and reel

SN74HC14DR の詳細情報

型番	SN74HC14DR
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	8.65 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.004 Amp
Moisture Sensitivity Level	1
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.02 mA
Prop. Delay@Nom-Sup	31 ns
Propagation Delay (tpd)	31 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.75 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
