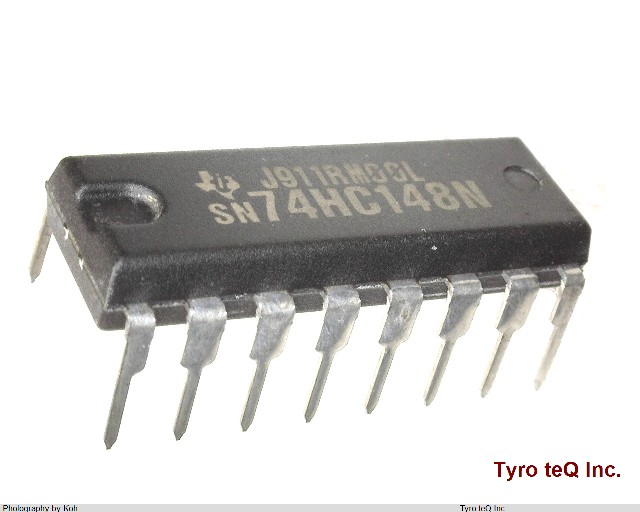

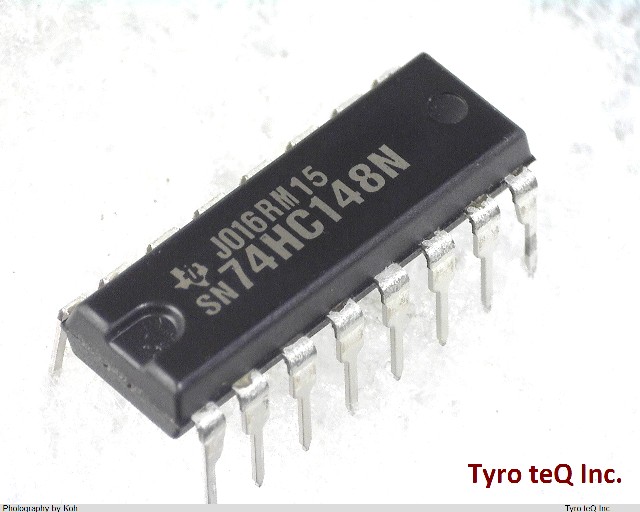

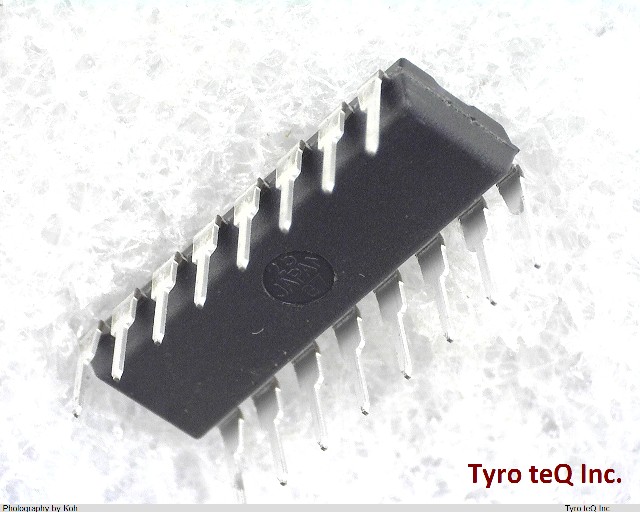

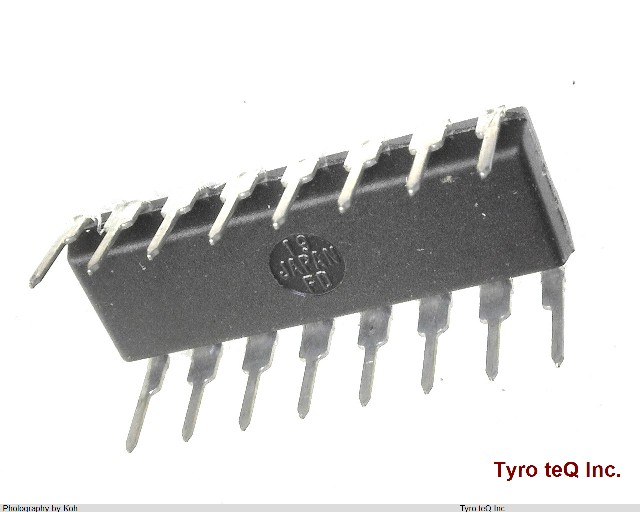

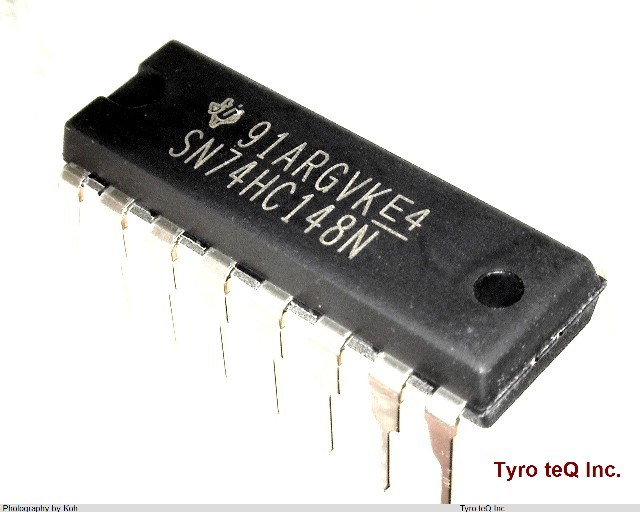

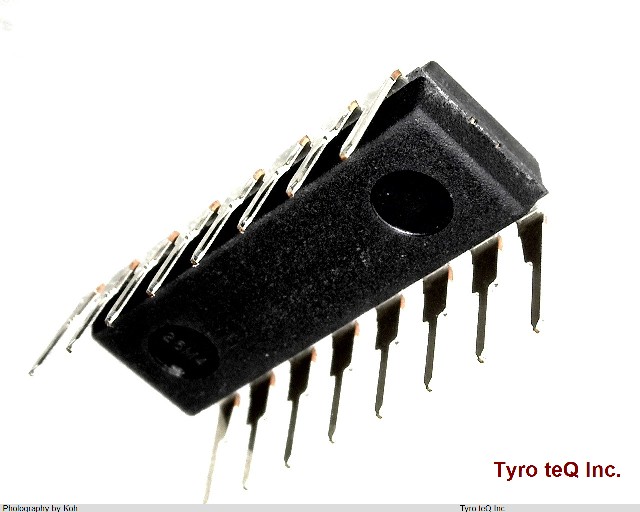

SN74HC148N データシート

Name: SN74HC148N
Brand: TI
SKU: 290016460-0000-0000-0000

SN74HC148N - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：PDIP | 梱包：Tube

SN74HC148N の詳細情報

型番	SN74HC148N
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	8 TO 3 LINE PRIORITY ENCODER; CASCADABLE; WITH GROUP SELECT OUTPUT
Family	HC
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	10.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	ENCODER
Max I(ol)	0.0052 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.08 mA
Prop. Delay@Nom-Sup	49 ns
Propagation Delay (tpd)	240 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Arithmetic Circuits
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
