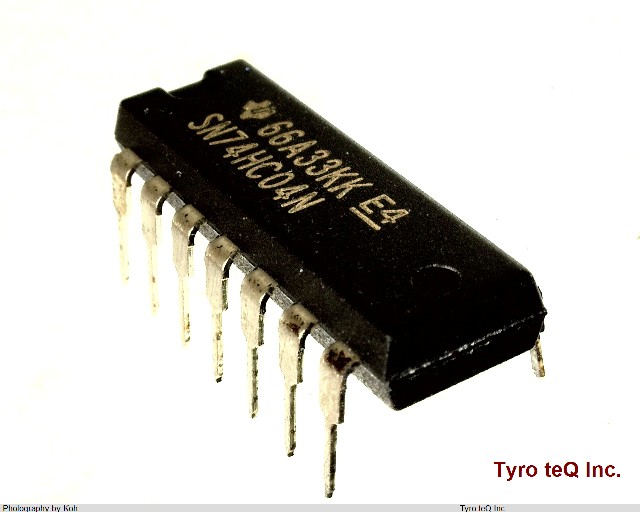

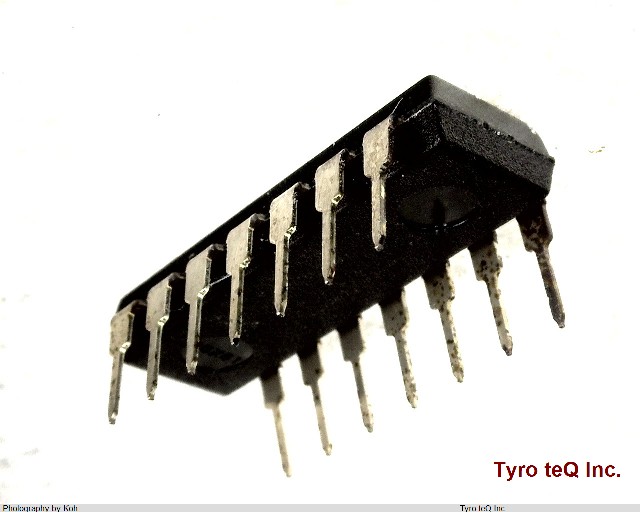

SN74HC04NE4 データシート

Name: SN74HC04NE4
Brand: TI
SKU: 290115579-0000-0000-0000

SN74HC04NE4 - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ： PDIP | Pb-Free(RoHS)

SN74HC04NE4 の詳細情報

型番	SN74HC04NE4
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Family	HC
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e3
Length	19.305 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.004 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.02 mA
Prop. Delay@Nom-Sup	24 ns
Propagation Delay (tpd)	120 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	5.08 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
