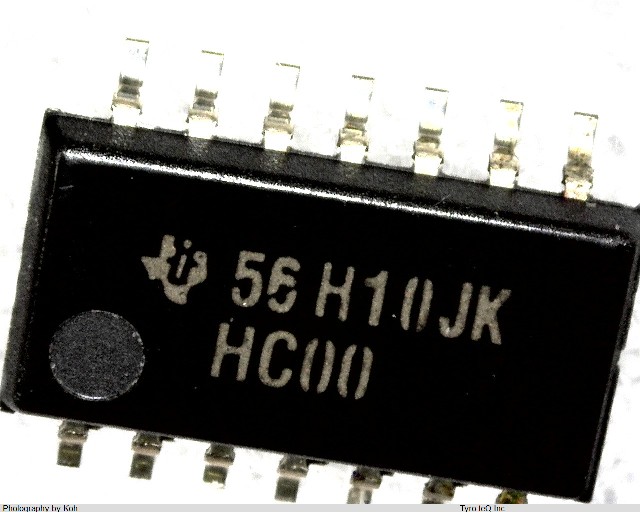

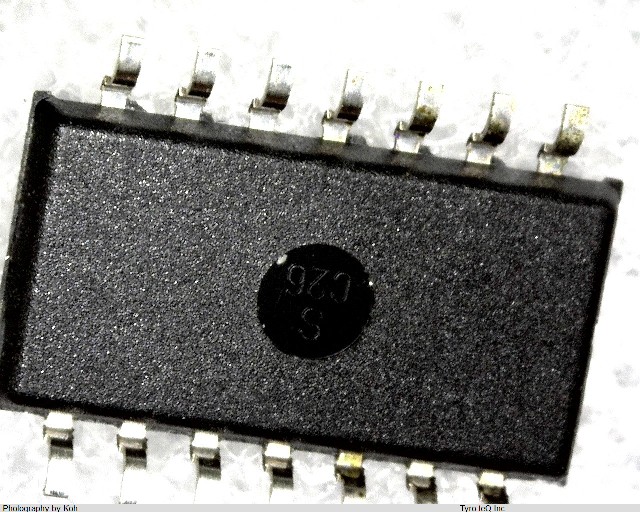

SN74HC00NS データシート

Name: SN74HC00NS
Brand: TI
SKU: 290016451-0000-0000-0000

SN74HC00NS - TI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC

SN74HC00NS の詳細情報

型番	SN74HC00NS
メーカー	TI
種別	高速CMOS標準ロジックIC
データシート
Family	HC
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	10.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NAND GATE
Max I(ol)	0.004 Amp
Moisture Sensitivity Level	1
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.02 mA
Prop. Delay@Nom-Sup	23 ns
Propagation Delay (tpd)	115 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	2 mm
Sub Category	Gate
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
