SN74CBT3306DR データシート

Name: SN74CBT3306DR
Brand: TI
SKU: 290035165-0000-0000-0000

SN74CBT3306DR - TI の商品詳細ページです。

２営業日以内に回答いたします

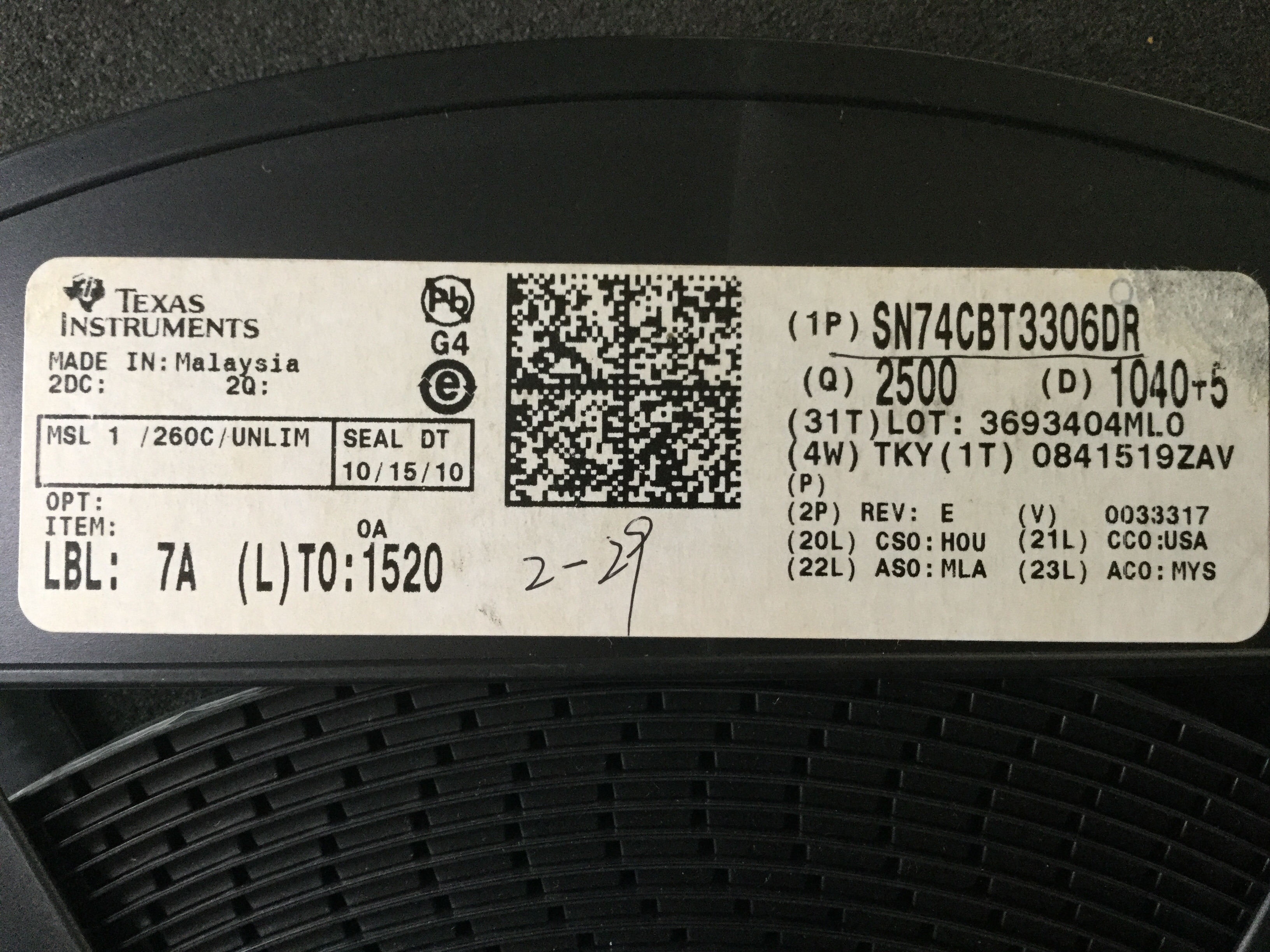

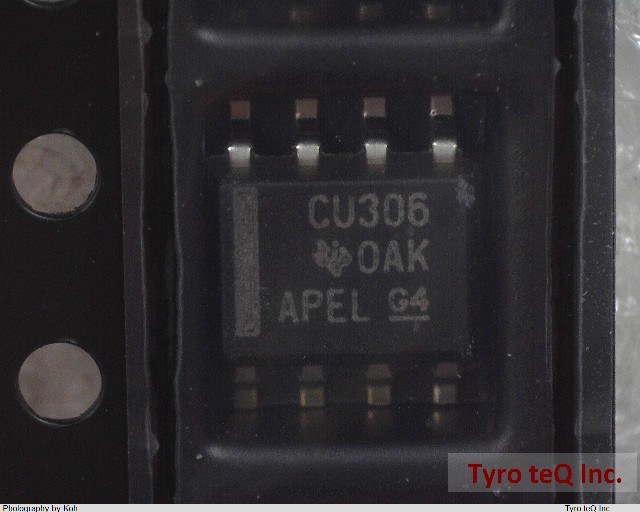

パッケージ：SOIC | 梱包：Tape and reel

SN74CBT3306DR の詳細情報

型番	SN74CBT3306DR
メーカー	TI
データシート
Additional Feature	BUS SWITCH
Control Type	ENABLE LOW
Count Direction	BIDIRECTIONAL
Family	CBT/FST/QS/5C/B
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	2
Number of Ports	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	0.003 mA
Prop. Delay@Nom-Sup	0.25 ns
Propagation Delay (tpd)	0.35 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Width	3.9 mm
