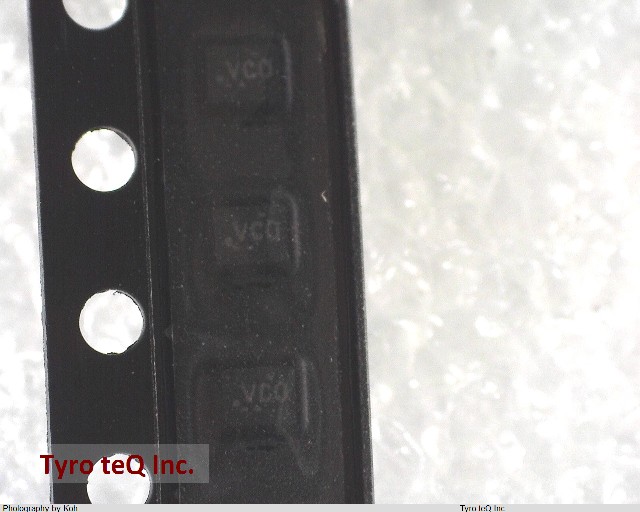

SN74AVC2T245RSWR データシート

Name: SN74AVC2T245RSWR
Brand: TI
SKU: 290254907-0000-0000-0000

SN74AVC2T245RSWR - TI の商品詳細ページです。

２営業日以内に回答いたします

SN74AVC2T245RSWR の詳細情報

型番	SN74AVC2T245RSWR
メーカー	TI
データシート
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	AVC
JESD-30 Code	R-PQCC-N10
JESD-609 Code	e4
Length	1.8 mm
Load Capacitance (CL)	15 pF
Logic IC Type	REGISTERED BUS TRANSCEIVER
Max I(ol)	0.012 Amp
Moisture Sensitivity Level	1
Number of Bits	2
Number of Functions	1
Number of Ports	2
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	VQCCN
Package Equivalence Code	LCC10,.06X.07,16
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, VERY THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	1.5/3.3 V
Power Supply Current-Max (ICC)	0.016 mA
Prop. Delay@Nom-Sup	5.1 ns
Propagation Delay (tpd)	5.1 ns
Qualification Status	Not Qualified
Seated Height-Max	0.55 mm
Sub Category	Bus Driver/Transceiver
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.2 V
Supply Voltage-Nom (Vsup)	1.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	1.5/3.3V&1.5/3.3V
Width	1.4 mm
