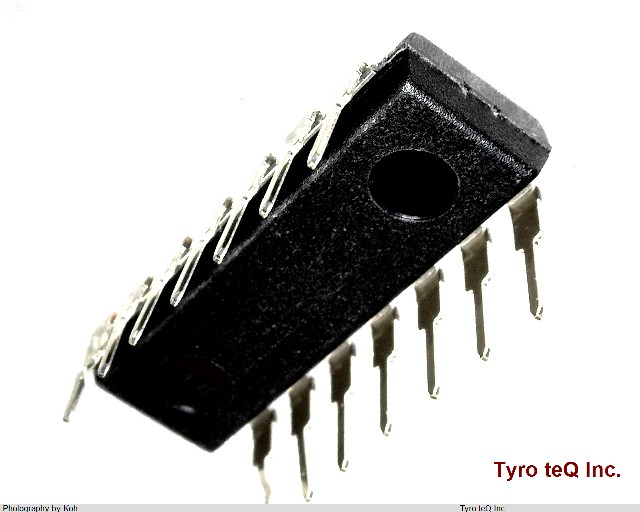

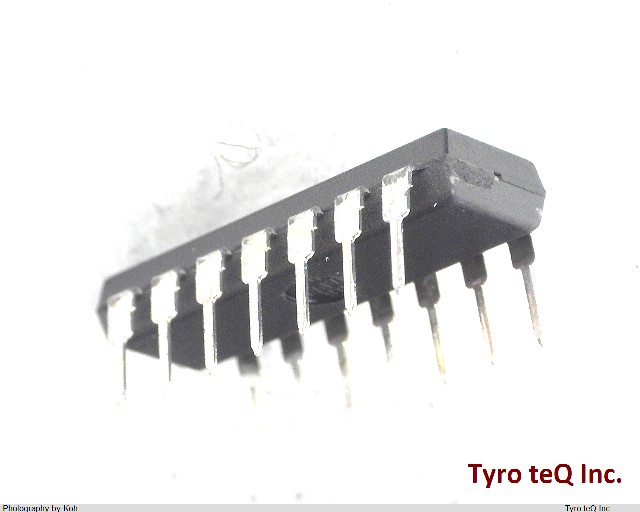

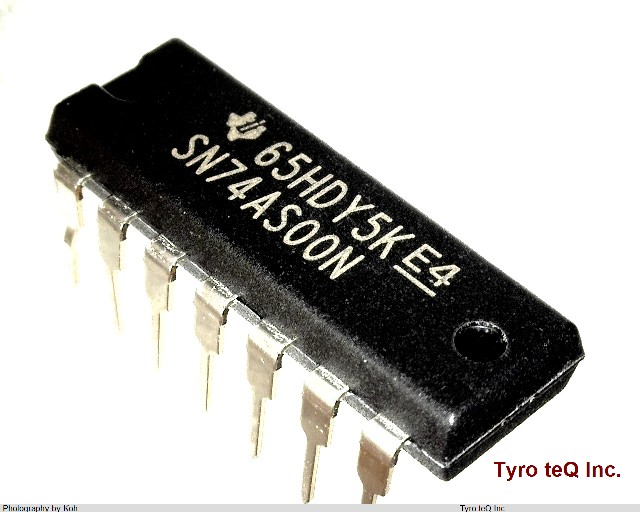

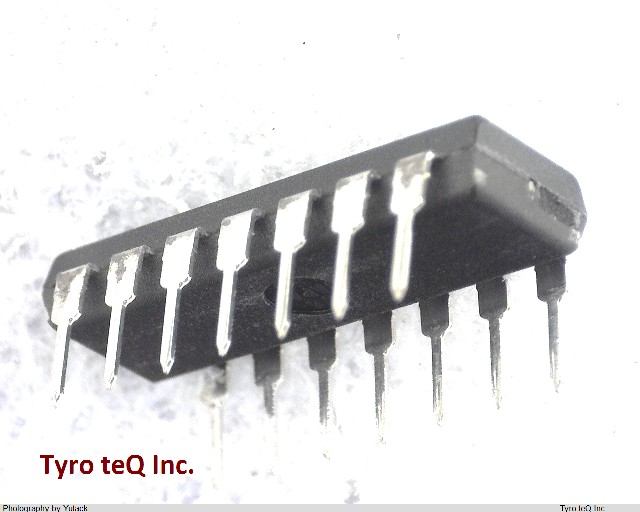

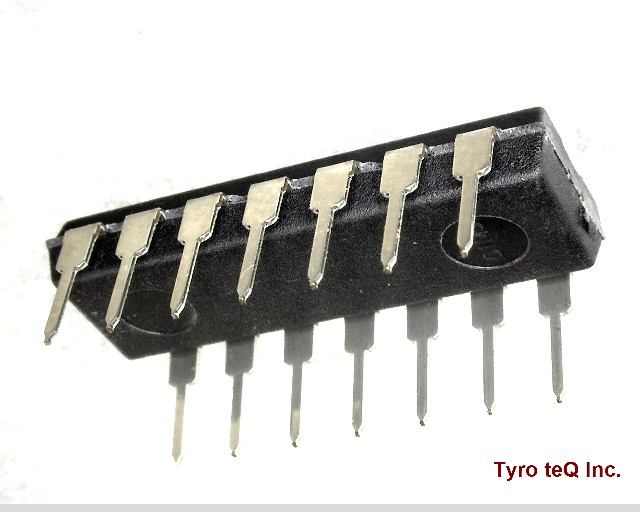

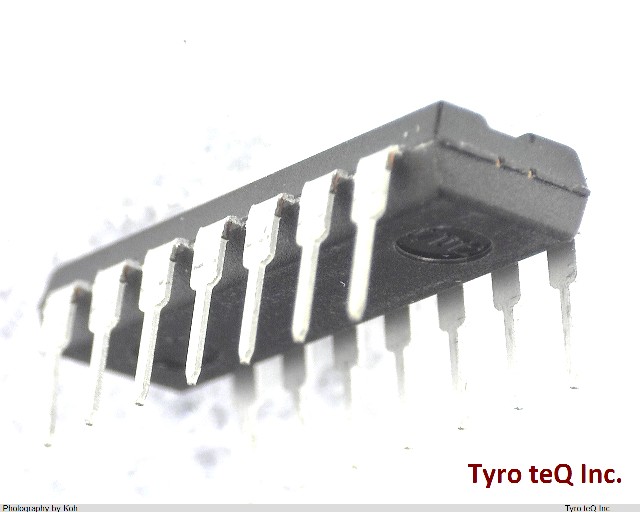

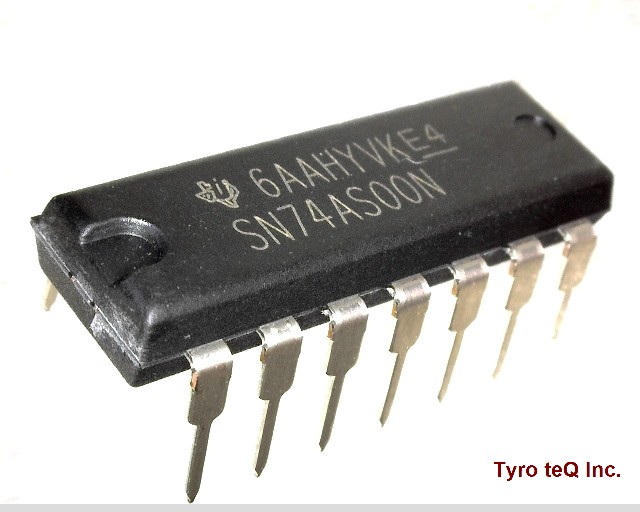

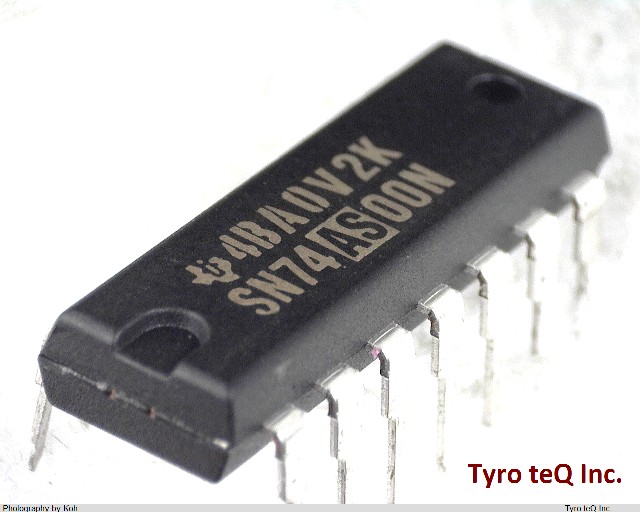

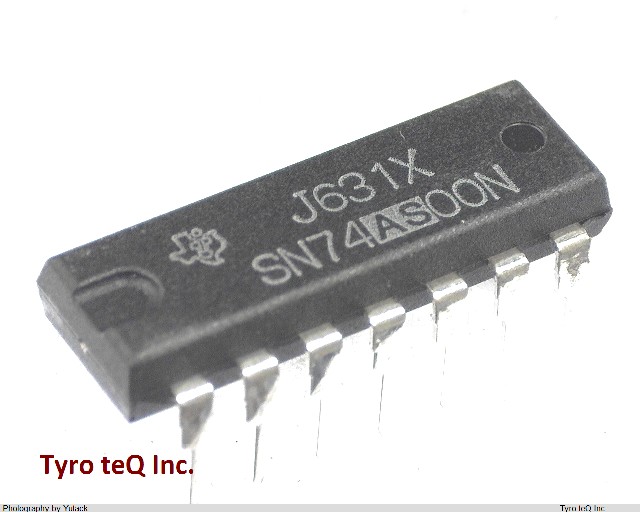

SN74AS00N データシート

Name: SN74AS00N
Brand: TI
SKU: 290011634-0000-0000-0000

SN74AS00N - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストショットキー|パッケージ：PDIP | 梱包：Tube

SN74AS00N の詳細情報

型番	SN74AS00N
メーカー	TI
種別	アドバンストショットキー
データシート
Family	AS
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e4
Length	10.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NAND GATE
Max I(ol)	0.02 Amp
Moisture Sensitivity Level	1
Number of Functions	1
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	17.4 mA
Prop. Delay@Nom-Sup	4.5 ns
Propagation Delay (tpd)	4 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
