SN74ALVC164245DGGR データシート

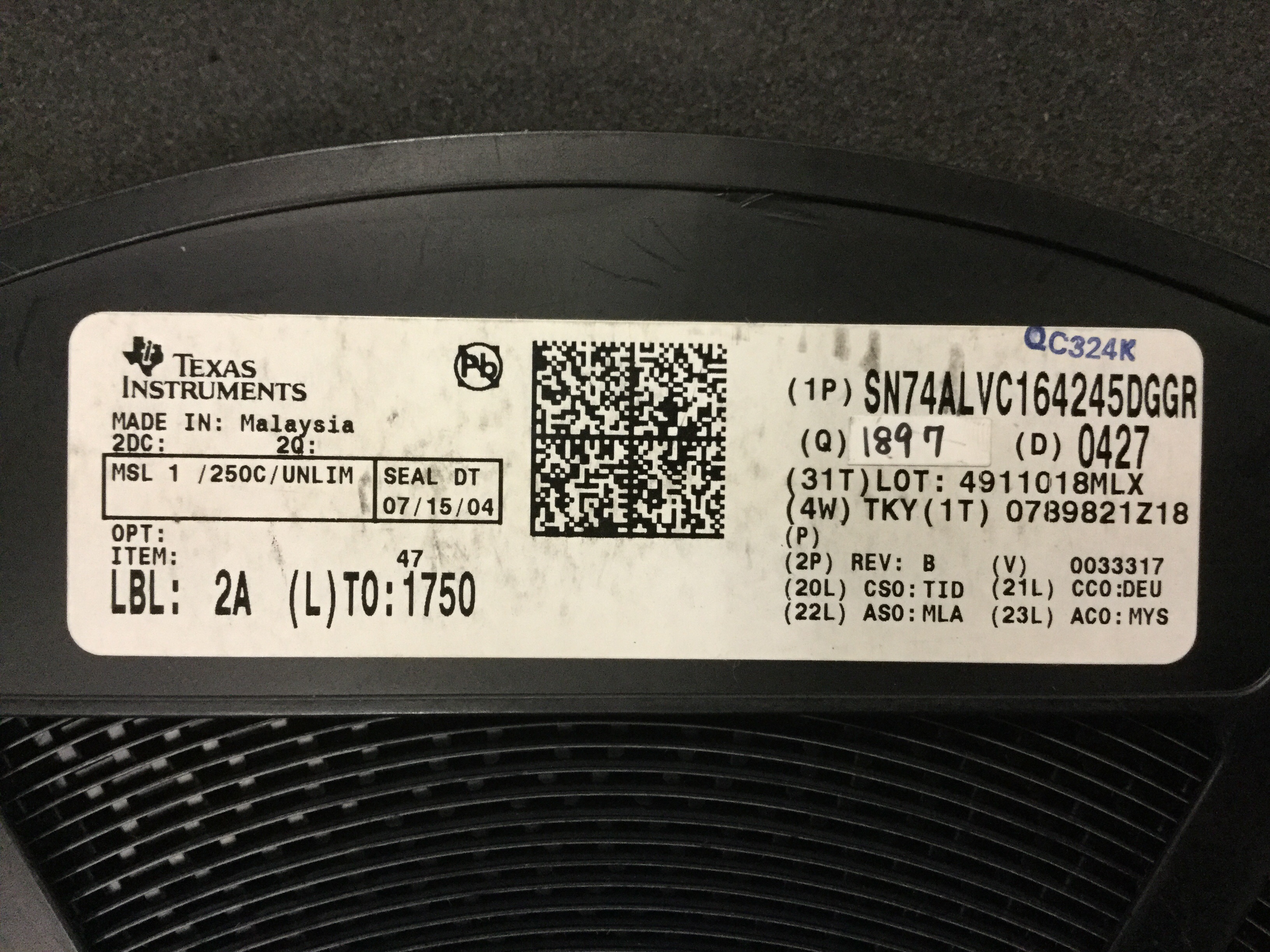

Name: SN74ALVC164245DGGR
Brand: TI
SKU: 290034636-0000-0000-0000

SN74ALVC164245DGGR - TI の商品詳細ページです。

２営業日以内に回答いたします

Advanced 低電圧CMOS

SN74ALVC164245DGGR の詳細情報

型番	SN74ALVC164245DGGR
メーカー	TI
種別	Advanced 低電圧CMOS
データシート
Additional Feature	ALSO REQUIRES 3.3V TO 5.5V SUPPLY FOR PORT B
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	ALVC/VCX/A
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e4
Length	12.5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	2
Number of Ports	2
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP48,.3,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3,5 V
Power Supply Current-Max (ICC)	0.04 mA
Prop. Delay@Nom-Sup	5.8 ns
Propagation Delay (tpd)	7.6 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.5 V
Supply Voltage-Nom (Vsup)	2.7 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	3V & 5V
Width	6.1 mm
