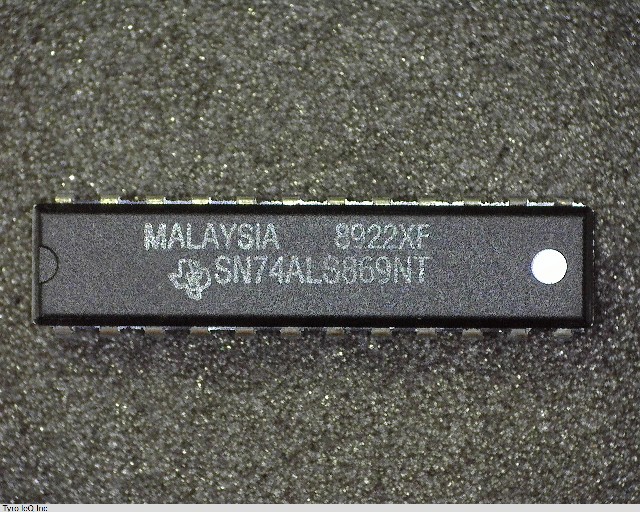

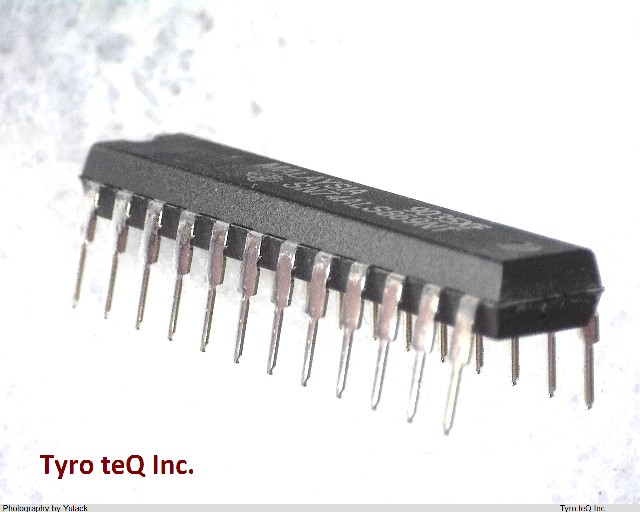

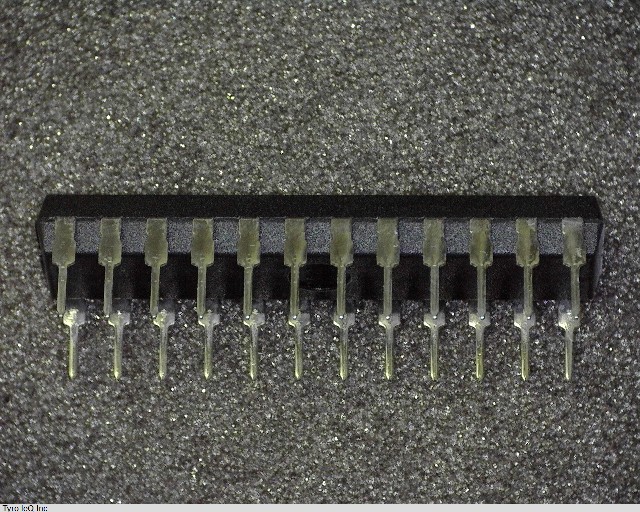

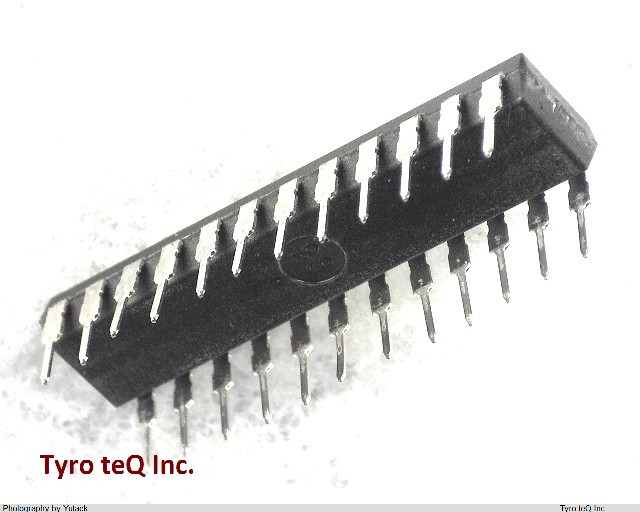

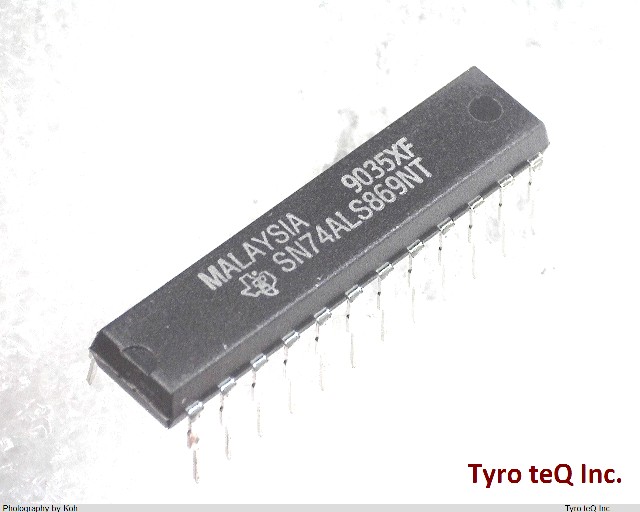

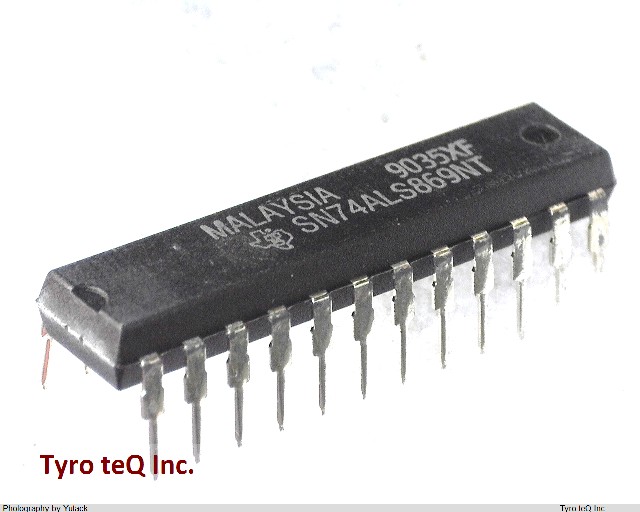

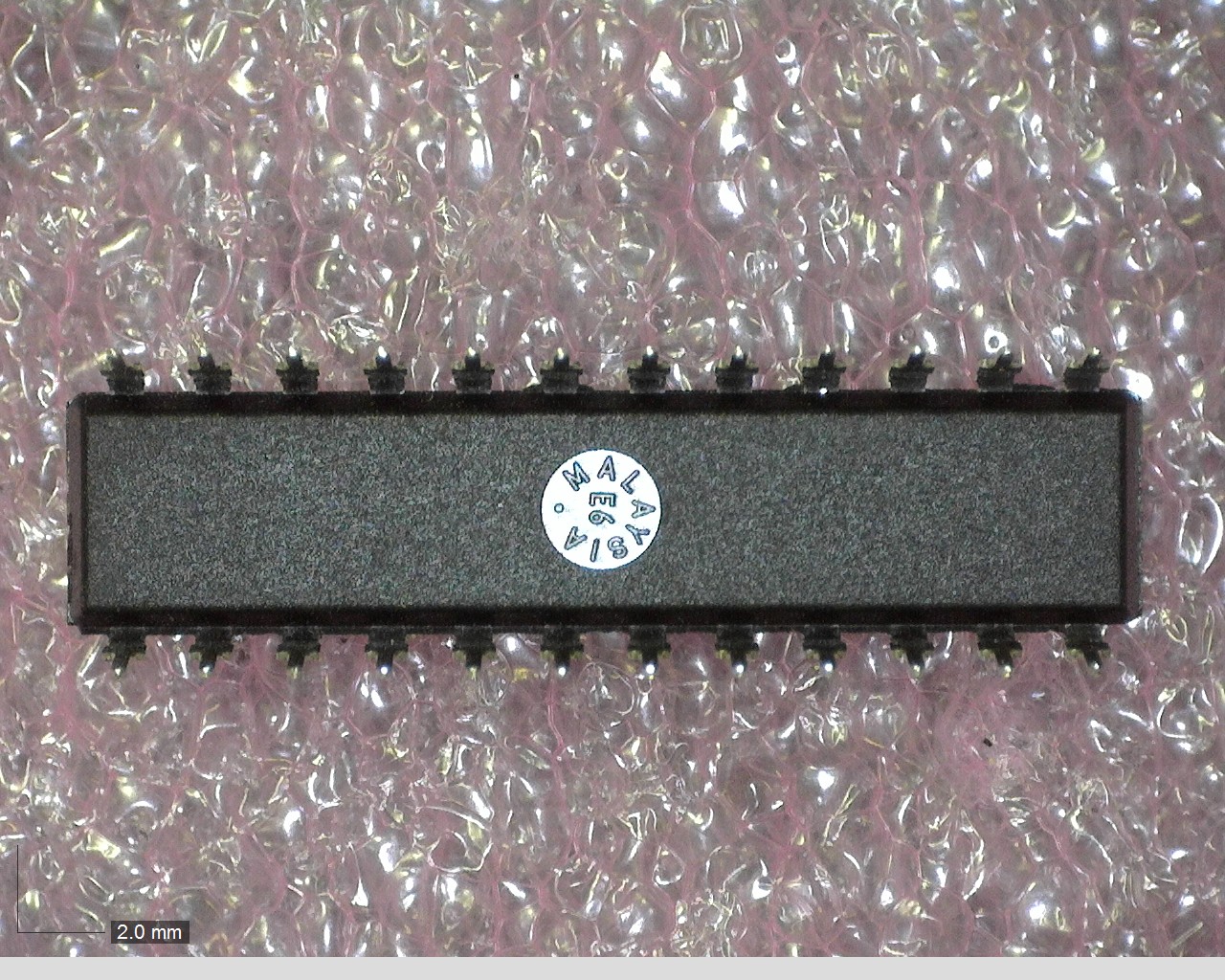

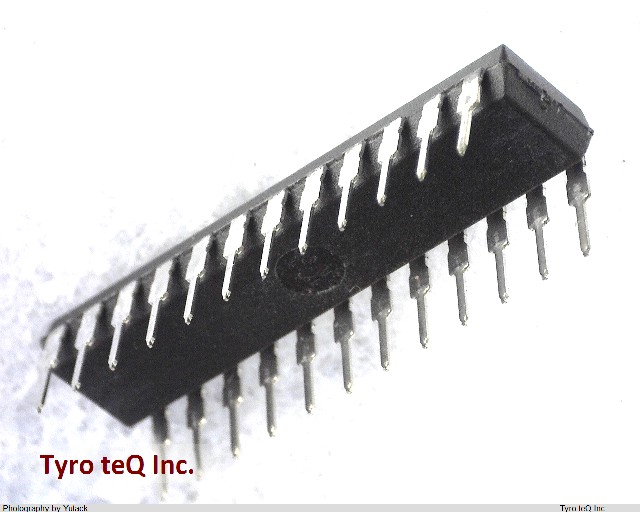

SN74ALS869NT データシート

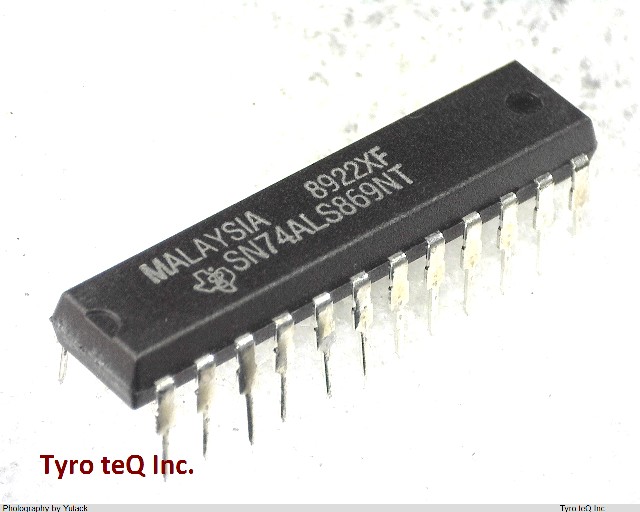

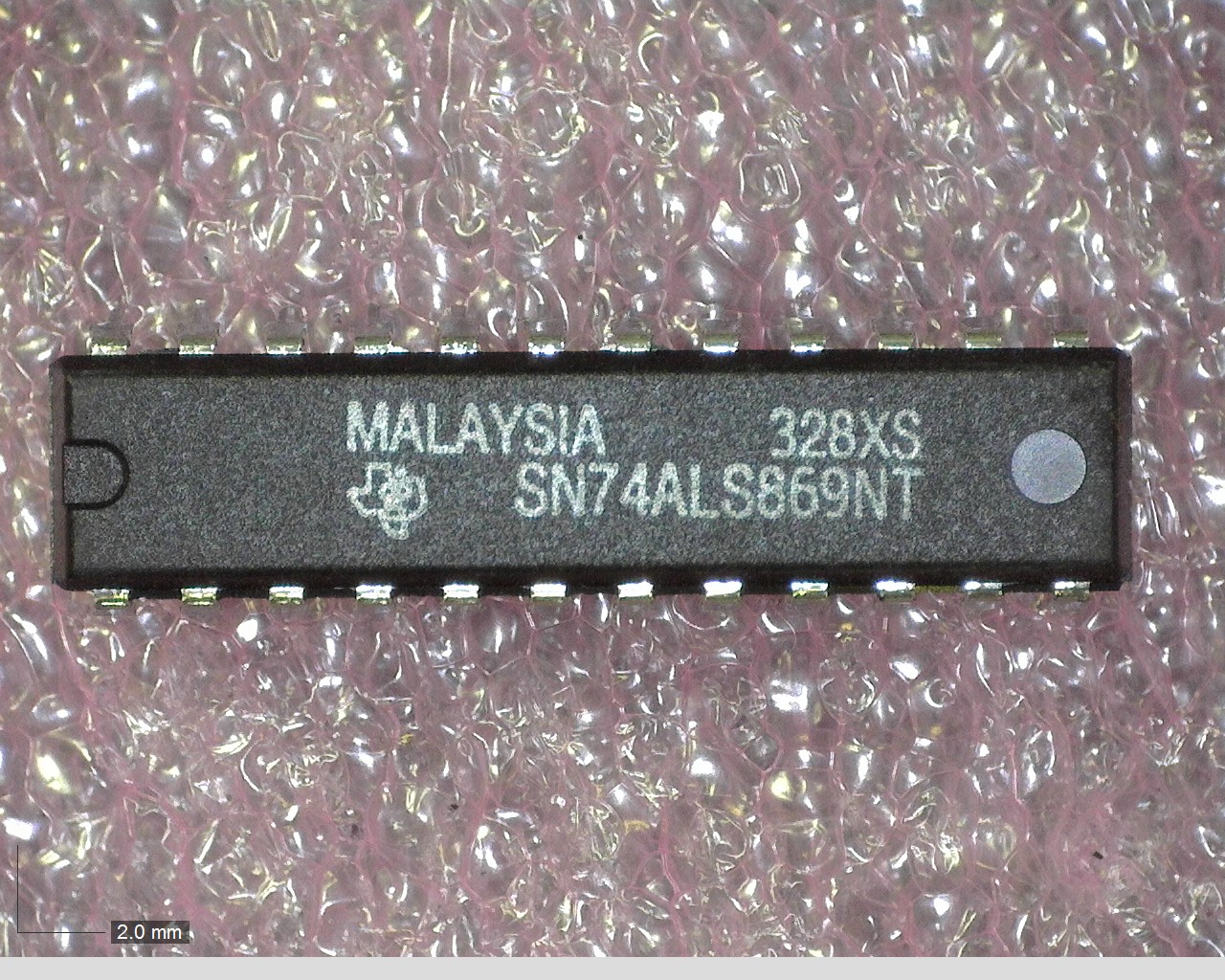

Name: SN74ALS869NT
Brand: TI
SKU: 290011539-0000-0000-0000

SN74ALS869NT - TI の商品詳細ページです。

２営業日以内に回答いたします

SN74ALS869NT の詳細情報

型番	SN74ALS869NT
メーカー	TI
データシート
Additional Feature	TCO OUTPUT; COUNT ENABLE INPUTS
Count Direction	BIDIRECTIONAL
Family	ALS
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e4
Length	31.64 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	YES
Logic IC Type	BINARY COUNTER
Max I(ol)	0.008 Amp
Mode of Operation	SYNCHRONOUS
Number of Bits	8
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supply Current-Max (ICC)	45 mA
Propagation Delay (tpd)	16 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	7.62 mm
fmax-Min	35 MHz
