SN74ALS564BNSR データシート

Name: SN74ALS564BNSR
Brand: TI
SKU: 290221694-0000-0000-0000

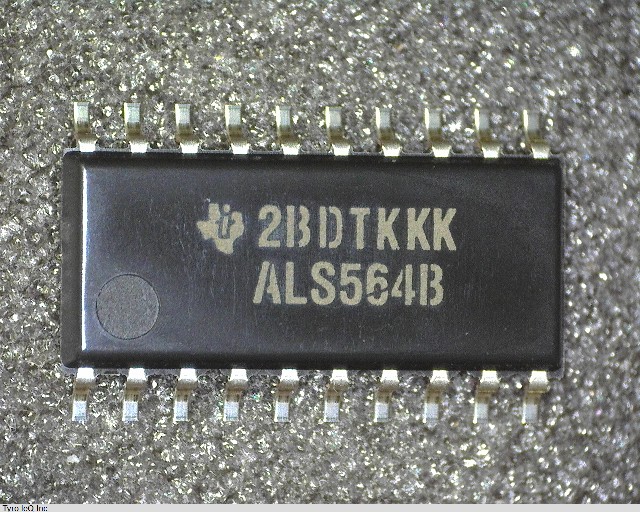

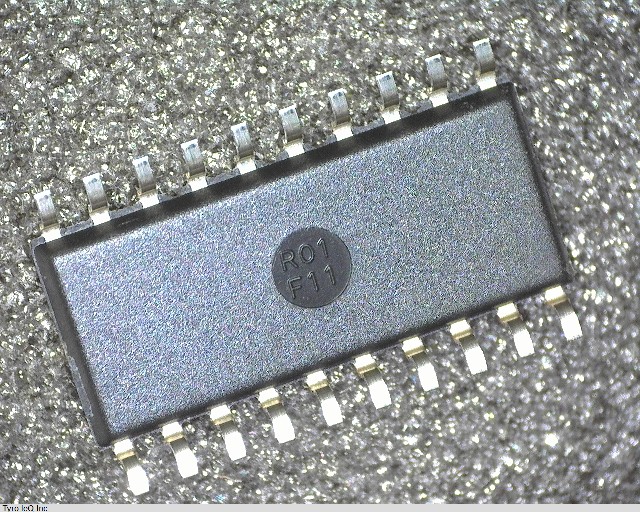

SN74ALS564BNSR - TI の商品詳細ページです。

２営業日以内に回答いたします

パッケージ：SOP | 梱包：Tape and reel

SN74ALS564BNSR の詳細情報

型番	SN74ALS564BNSR
メーカー	TI
データシート
Control Type	INDEPENDENT CONTROL
Count Direction	UNIDIRECTIONAL
Family	ALS
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	12.6 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max Frequency@Nom-Sup	30000000 Hz
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	30 mA
Prop. Delay@Nom-Sup	14 ns
Propagation Delay (tpd)	14 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Trigger Type	POSITIVE EDGE
Width	5.3 mm
