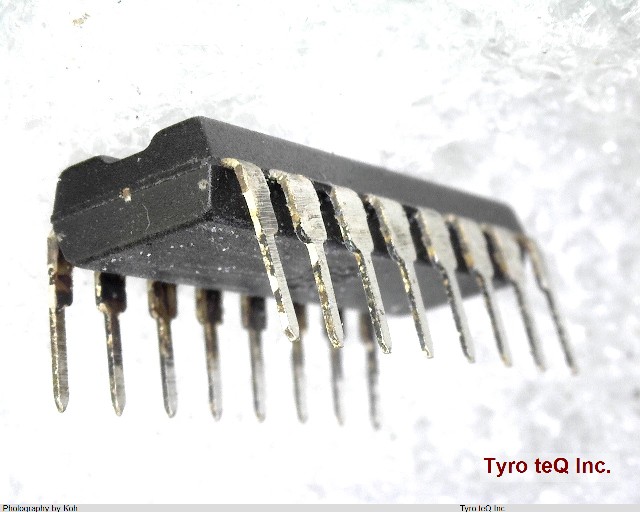

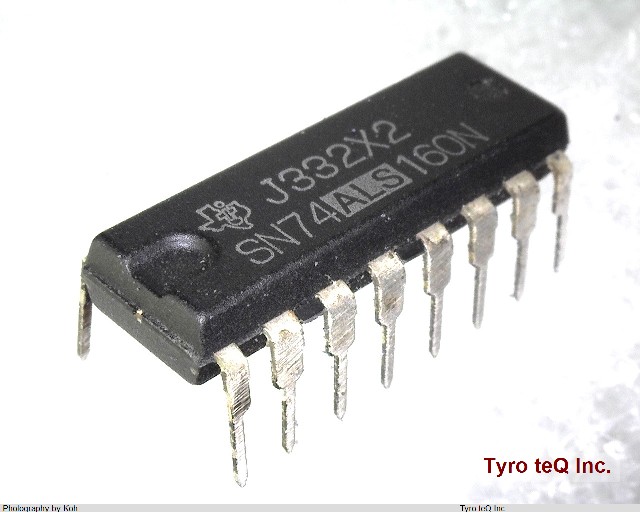

SN74ALS160N
1
-
- 個
２営業日以内に回答いたします
SN74ALS160N の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | SN74ALS160N |
|---|---|
| メーカー | TI |
| Count Direction | UP |
| Family | ALS |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Length | 19.175 mm |
| Load/Preset Input | YES |
| Logic IC Type | DECADE COUNTER |
| Max Frequency@Nom-Sup | 30000000 Hz |
| Mode of Operation | SYNCHRONOUS |
| Number of Bits | 4 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Propagation Delay (tpd) | 28 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.44 mm |
| Sub Category | Counters |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Width | 7.62 mm |
| fmax-Min | 30 MHz |
| 会社名称 | Texas Instruments Incorporated. |
|---|---|
| 設立 | 1930 |
| 資本金 | USD 816 million |
| 所在地 | 12500 TI Boulevard Dallas, Texas 75243 USA |
| URL | http://www.ti.com/ |
