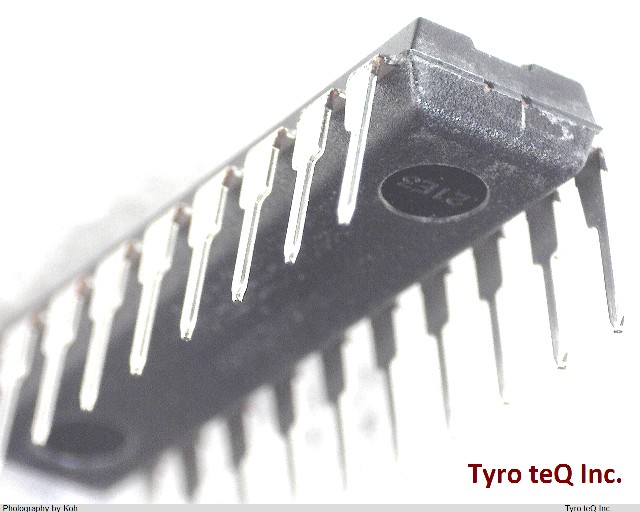

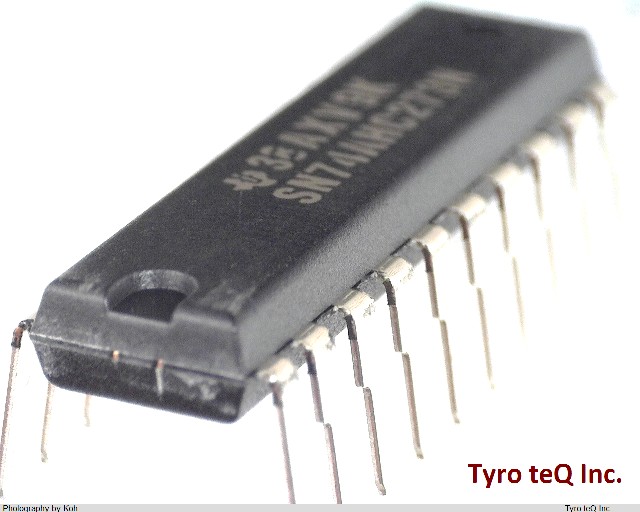

SN74AHC273N データシート

Name: SN74AHC273N
Brand: TI
SKU: 290111468-0000-0000-0000

SN74AHC273N - TI の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ：PDIP | 梱包：Tube

SN74AHC273N の詳細情報

型番	SN74AHC273N
メーカー	TI
種別	Advanced CMOSロジックIC
データシート
Family	AHC/VHC/H/U/V
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e4
Length	12.6 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	70000000 Hz
Max I(ol)	0.008 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/5.5 V
Power Supply Current-Max (ICC)	0.04 mA
Prop. Delay@Nom-Sup	12.5 ns
Propagation Delay (tpd)	19.5 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	5.3 mm
fmax-Min	100 MHz
