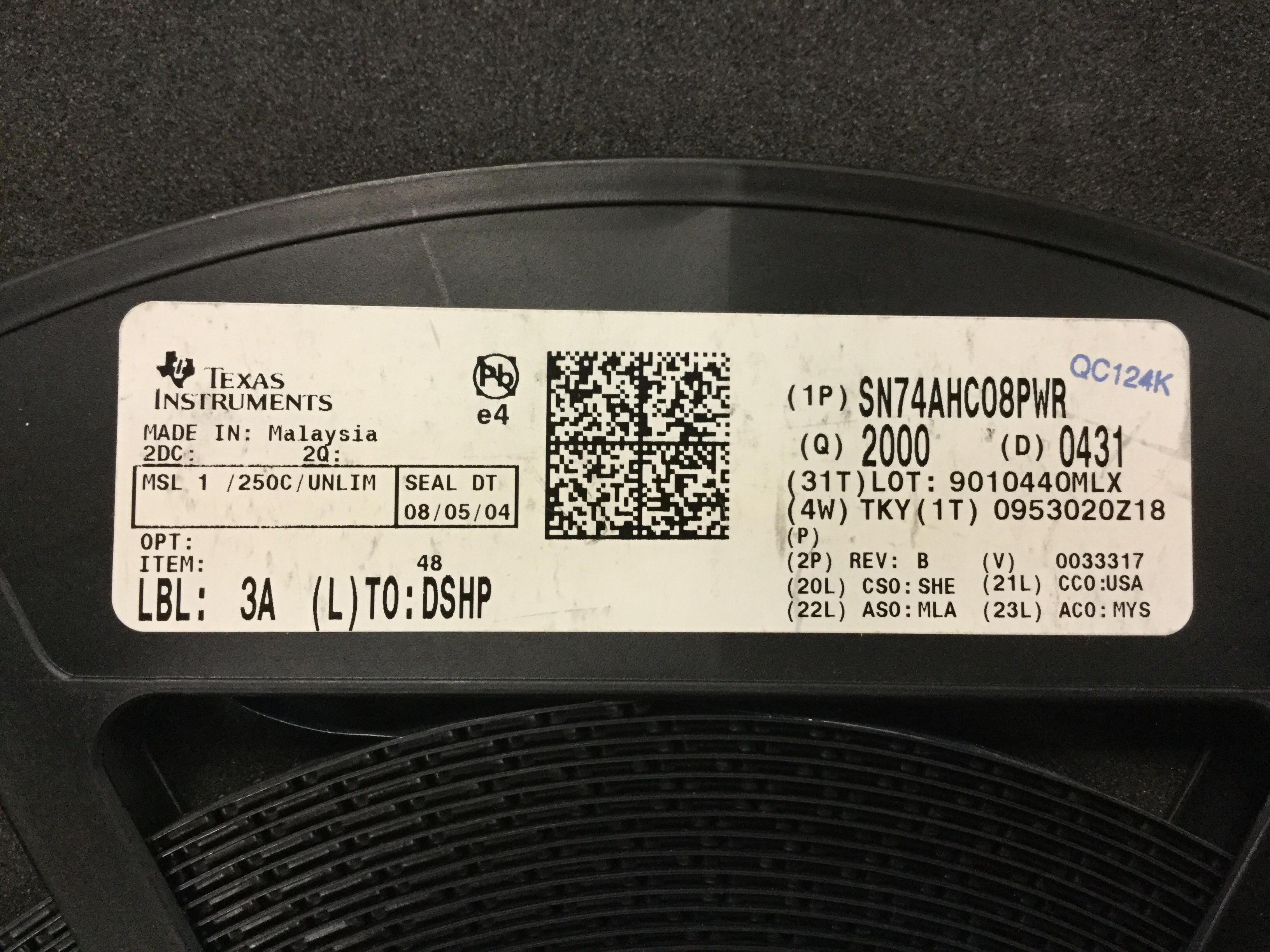

SN74AHC08PWR

Name: SN74AHC08PWR
Brand: TI
SKU: 290011232-0000-0000-0000

SN74AHC08PWR - TI の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ： TSSOP | 梱包：Tape and reel

SN74AHC08PWR の詳細情報

型番	SN74AHC08PWR
メーカー	TI
種別	Advanced CMOSロジックIC
Additional Feature	IT CAN ALSO OPERATE AT 5 V NOMINAL
Family	AHC/VHC/H/U/V
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	AND GATE
Max I(ol)	0.008 Amp
Moisture Sensitivity Level	1
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	2/5.5 V
Power Supply Current-Max (ICC)	0.002 mA
Prop. Delay@Nom-Sup	9 ns
Propagation Delay (tpd)	14 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.2 mm
Sub Category	Gate
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
