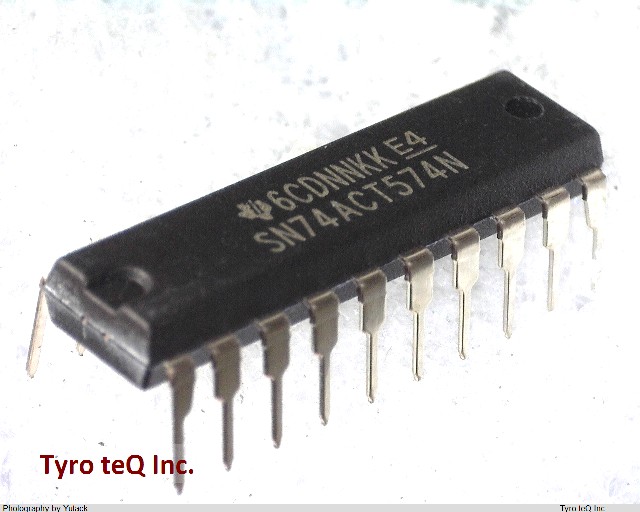

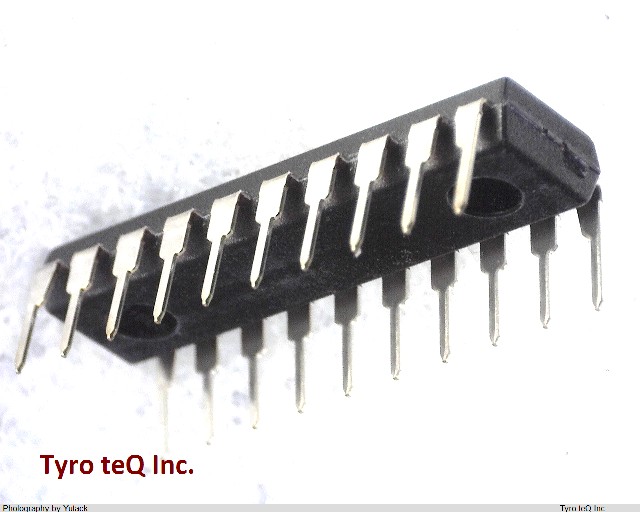

SN74ACT574N データシート

Name: SN74ACT574N
Brand: TI
SKU: 290033720-0000-0000-0000

SN74ACT574N - TI の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ：PDIP | 梱包：Tube

SN74ACT574N の詳細情報

型番	SN74ACT574N
メーカー	TI
種別	Advanced CMOSロジックIC
データシート
Additional Feature	BROADSIDE VERSION OF 374
Control Type	INDEPENDENT CONTROL
Count Direction	UNIDIRECTIONAL
Family	ACT
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e4
Length	12.6 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max Frequency@Nom-Sup	85000000 Hz
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	0.04 mA
Prop. Delay@Nom-Sup	12 ns
Propagation Delay (tpd)	12 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Bus Driver/Transceiver
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Trigger Type	POSITIVE EDGE
Width	5.3 mm
