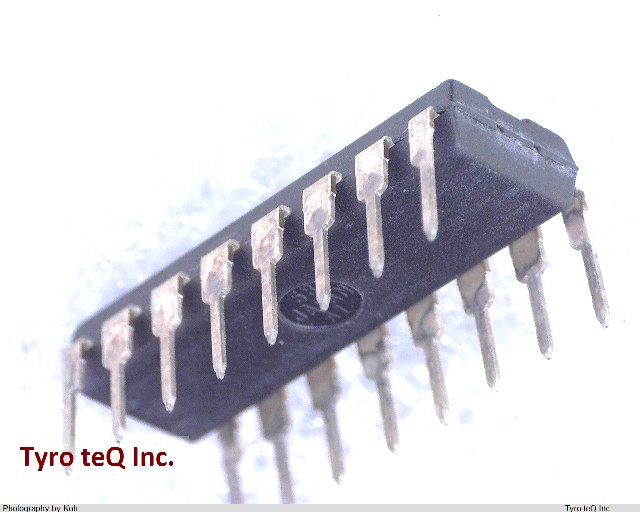

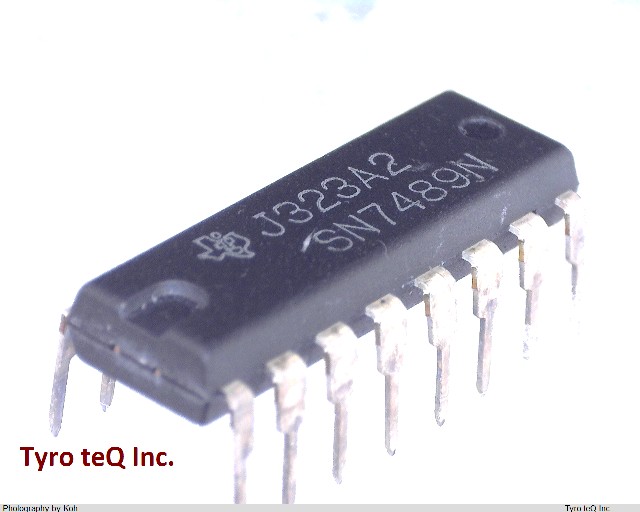

SN7489N データシート

Name: SN7489N
Brand: TI
SKU: 290033290-0000-0000-0000

SN7489N - TI の商品詳細ページです。

２営業日以内に回答いたします

標準TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN7489N の詳細情報

型番	SN7489N
メーカー	TI
種別	標準TTL
データシート
Access Time-Max	60 ns
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Memory Density	64 bit
Memory IC Type	MEMORY CIRCUIT
Memory Width	4
Number of Functions	1
Number of Terminals	16
Number of Words	16 words
Number of Words Code	16
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	16X4
Output Characteristics	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Sub Category	SRAMs
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
