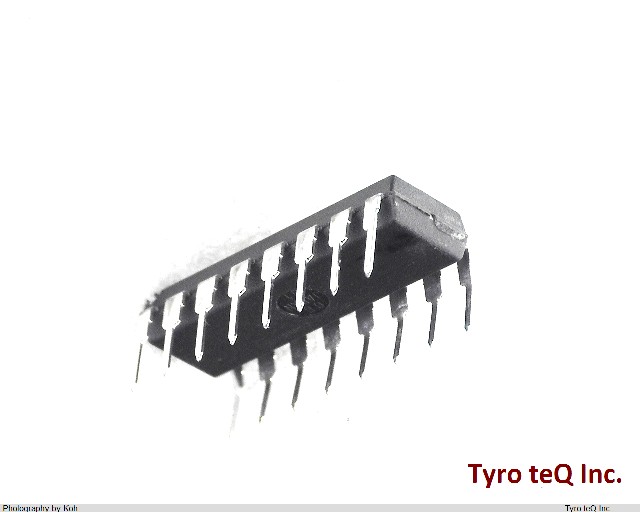

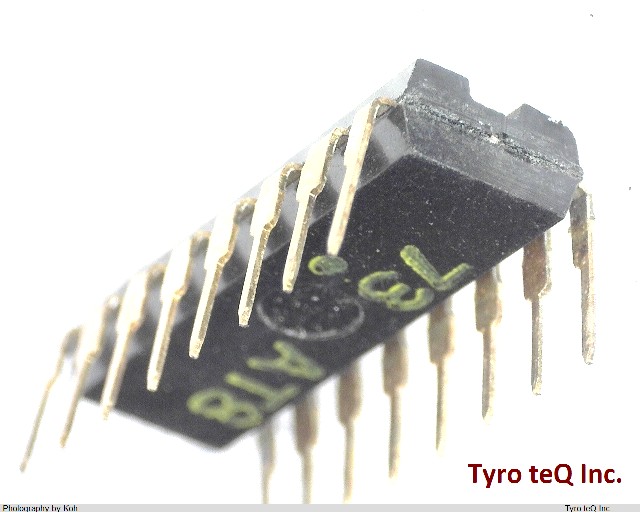

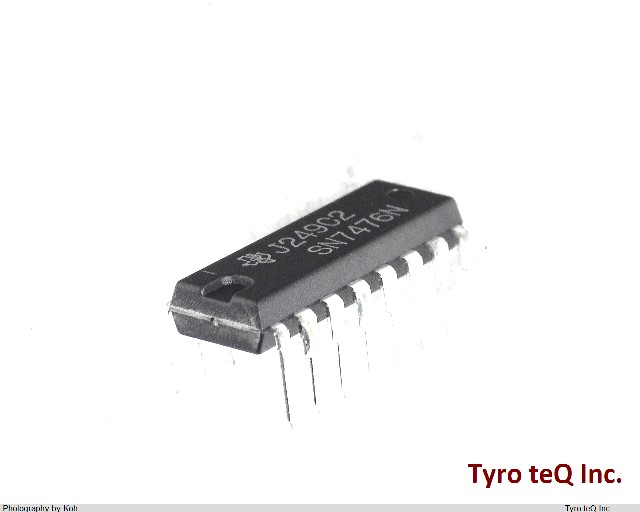

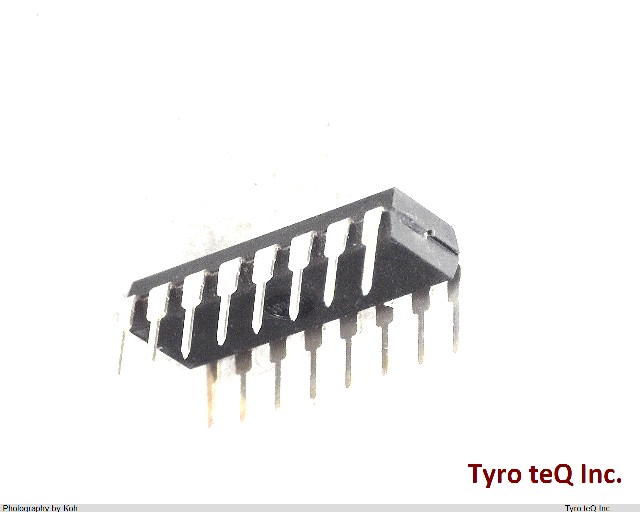

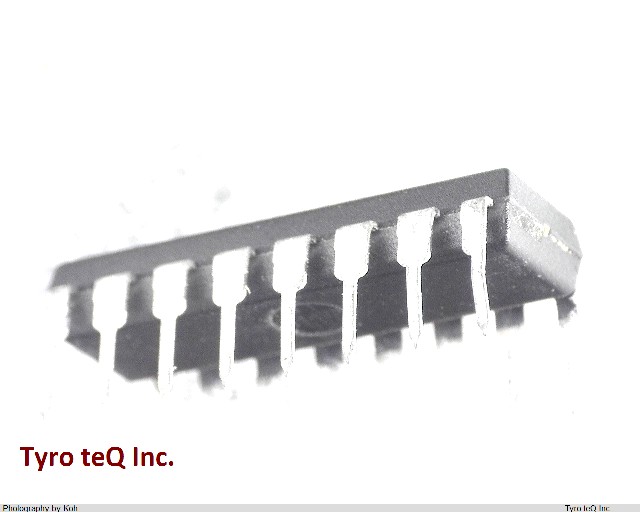

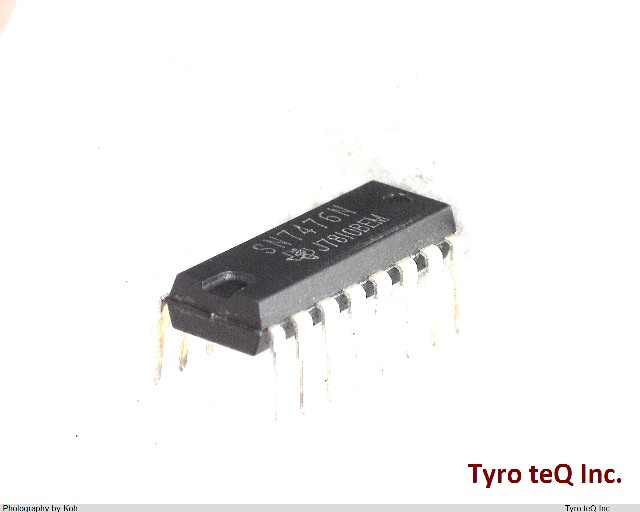

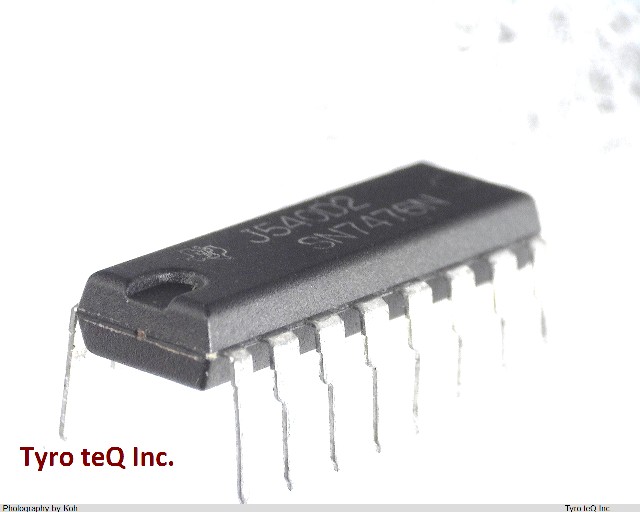

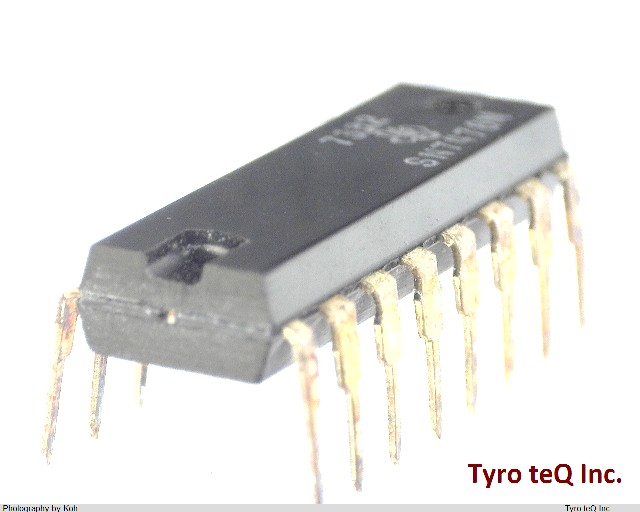

SN7476N データシート

Name: SN7476N
Brand: TI
SKU: 290033280-0000-0000-0000

SN7476N - TI の商品詳細ページです。

２営業日以内に回答いたします

標準TTL　トランジスタ・トランジスタ・ロジック|2回路JK-フリップフロップ(PRESET/CLR付き)|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN7476N の詳細情報

型番	SN7476N
メーカー	TI
種別	標準TTL
データシート
Additional Feature	MASTER SLAVE OPERATION
Family	7476
JESD-30 Code	R-PDIP-T16
Length	19.305 mm
Load Capacitance (CL)	15 pF
Logic IC Type	J-K FLIP-FLOP
Number of Bits	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	20 mA
Propagation Delay (tpd)	40 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	MASTER-SLAVE
Width	7.62 mm
fmax-Min	15 MHz
