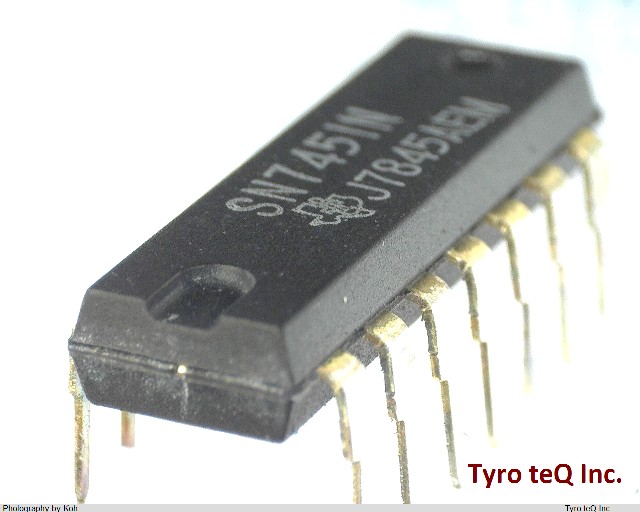

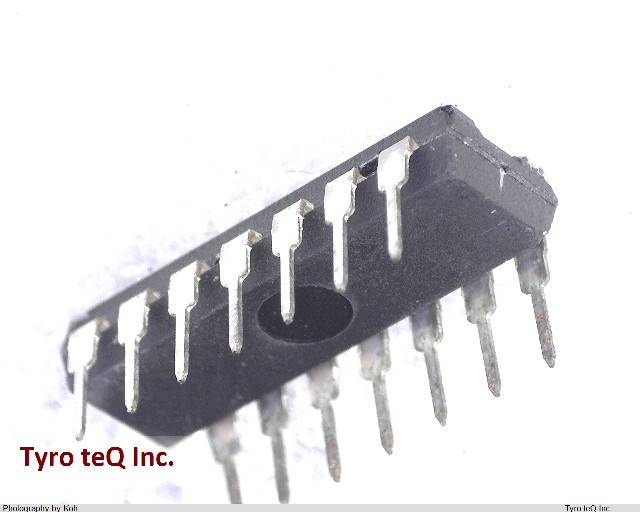

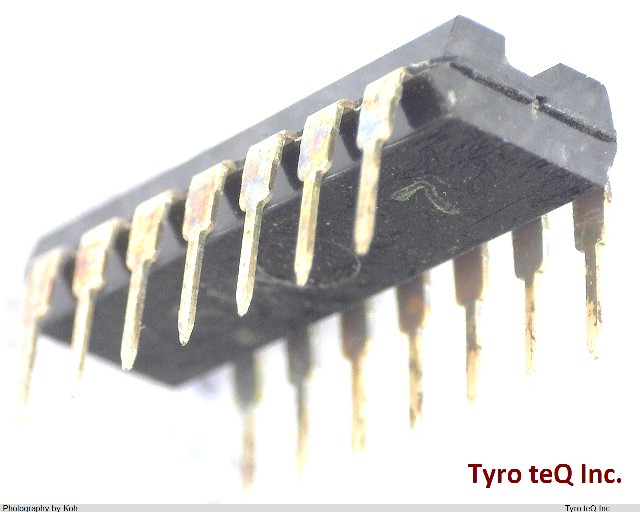

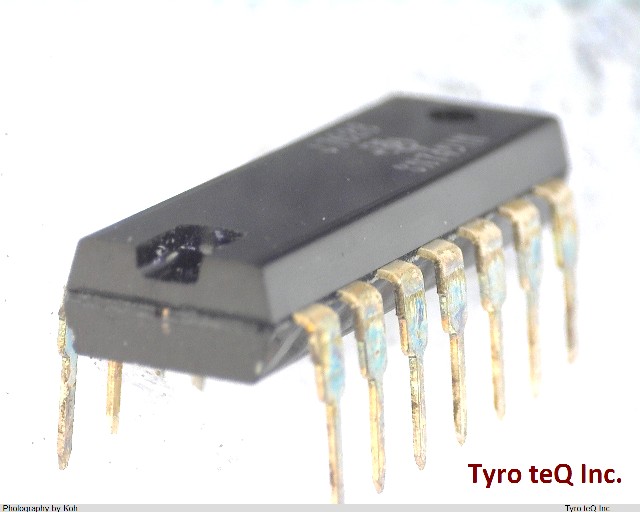

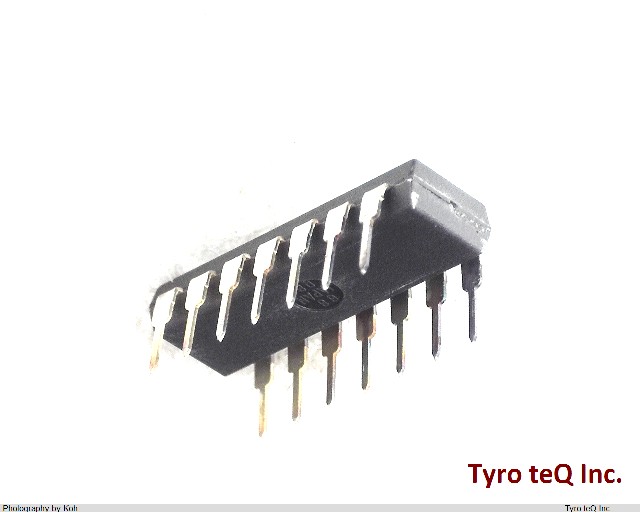

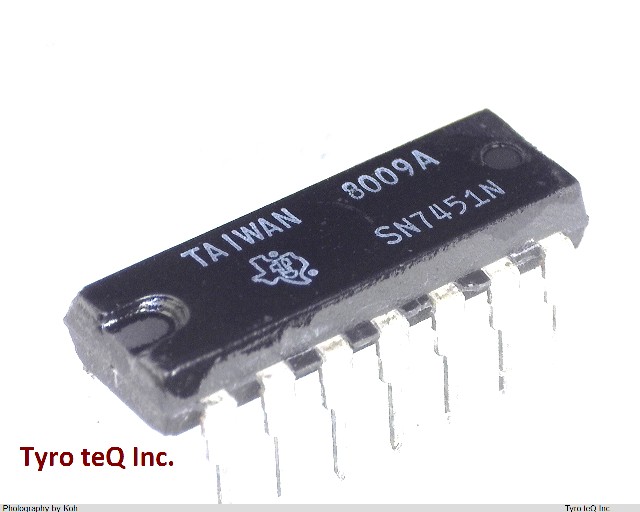

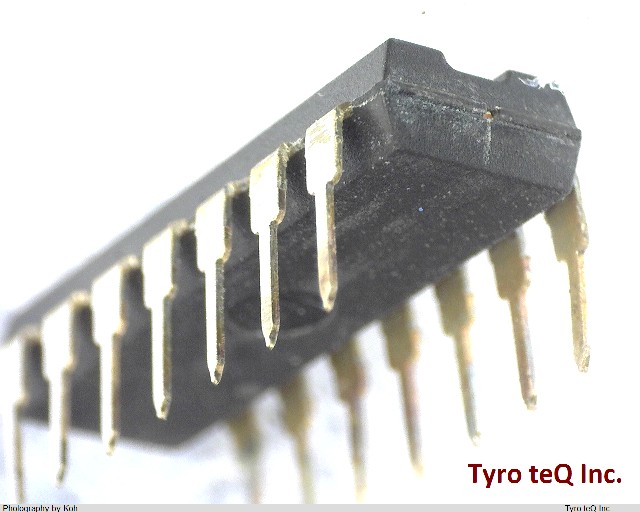

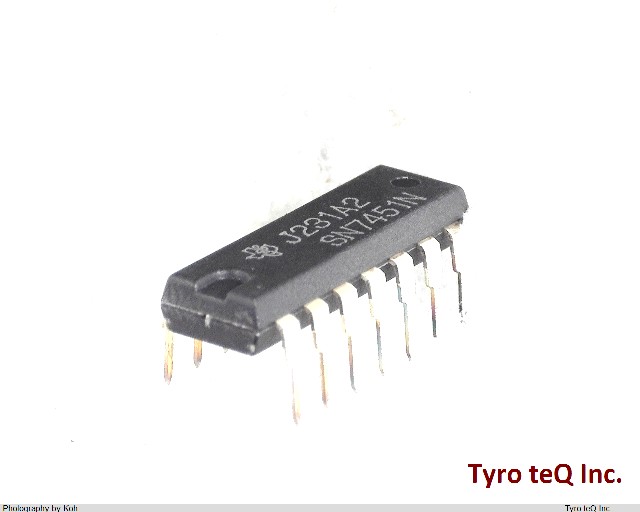

SN7451N

Name: SN7451N
Brand: TI
SKU: 290033272-0000-0000-0000

SN7451N - TI の商品詳細ページです。

２営業日以内に回答いたします

標準TTL　トランジスタ・トランジスタ・ロジック|AND-NORゲート|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN7451N の詳細情報

型番	SN7451N
メーカー	TI
種別	標準TTL
Additional Feature	ANOTHER FUNCTION HAS 6 INPUT
Family	TTL/H/L
JESD-30 Code	R-PDIP-T14
Length	19.305 mm
Load Capacitance (CL)	15 pF
Logic IC Type	AND-OR-INVERT GATE
Number of Functions	2
Number of Inputs	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	14 mA
Propagation Delay (tpd)	15 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	5.08 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
