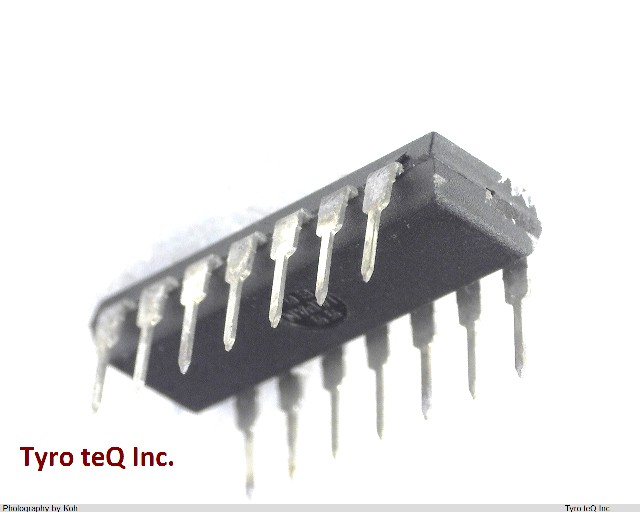

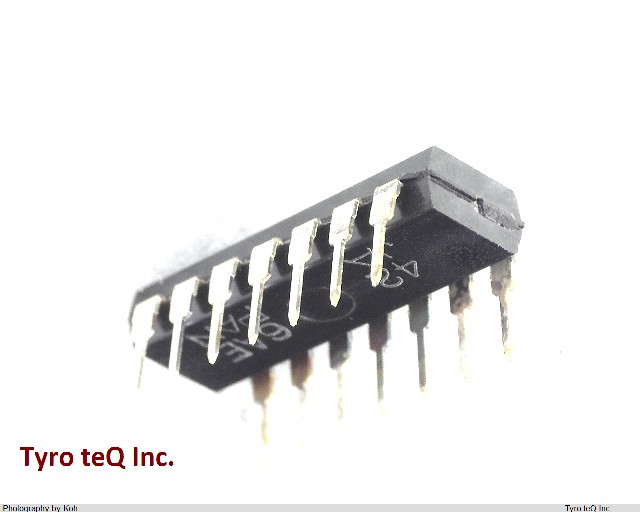

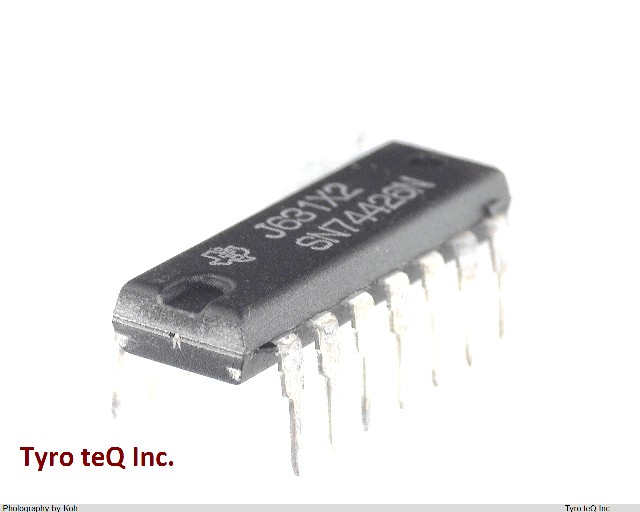

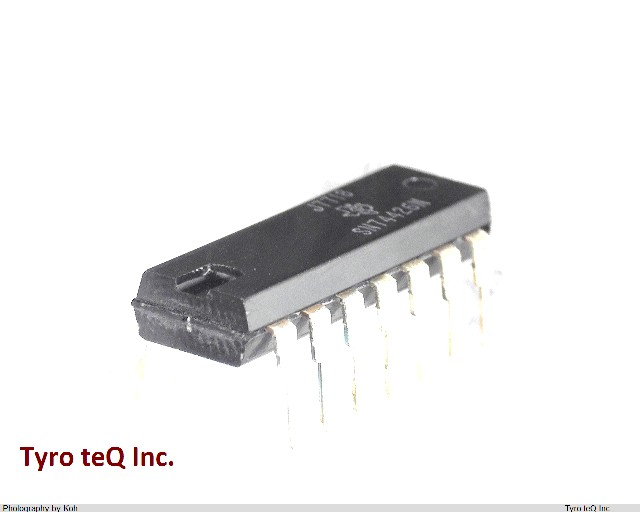

SN74426N データシート

Name: SN74426N
Brand: TI
SKU: 290287634-0000-0000-0000

SN74426N - TI の商品詳細ページです。

２営業日以内に回答いたします

標準TTL　トランジスタ・トランジスタ・ロジック|BCD-十進4-10デコーダ|4回路双方向バストランシーバ|パッケージ：PDIP | 梱包：Tube

SN74426N の詳細情報

型番	SN74426N
メーカー	TI
種別	標準TTL
データシート
Control Type	ENABLE HIGH
Family	TTL/H/L
JESD-30 Code	R-PDIP-T14
Length	19.305 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Number of Bits	4
Number of Functions	1
Number of Ports	2
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supply Current-Max (ICC)	62 mA
Propagation Delay (tpd)	18 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
