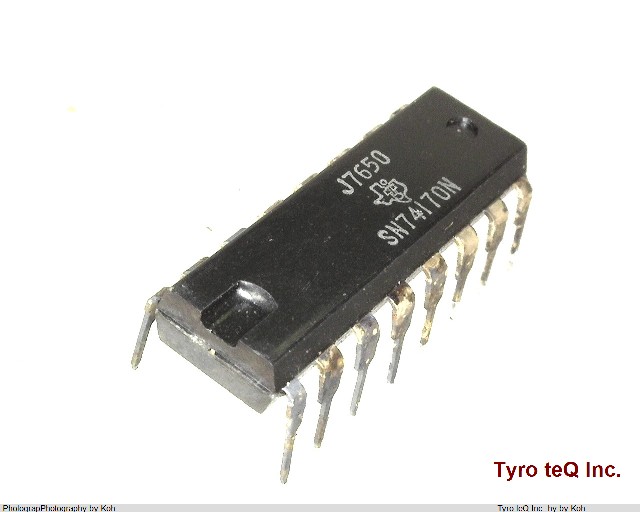

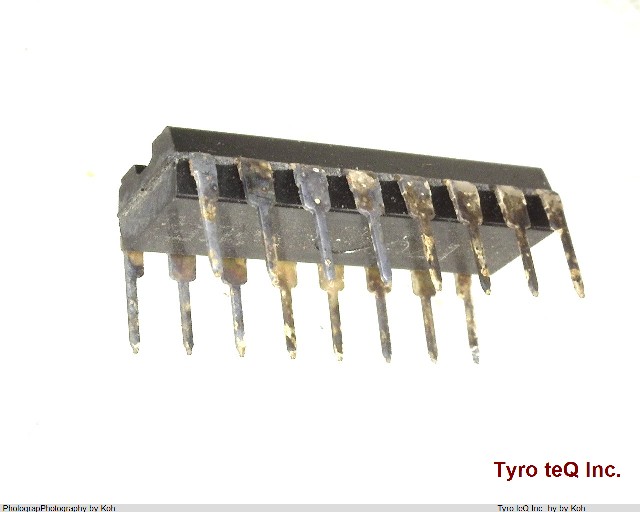

SN74170N データシート

Name: SN74170N
Brand: TI
SKU: 290182408-0000-0000-0000

SN74170N - TI の商品詳細ページです。

２営業日以内に回答いたします

標準TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube

SN74170N の詳細情報

型番	SN74170N
メーカー	TI
種別	標準TTL
データシート
Access Time-Max	40 ns
JESD-30 Code	R-PDIP-T16
Length	19.305 mm
Memory Density	16 bit
Memory IC Type	STANDARD SRAM
Memory Width	4
Number of Functions	1
Number of Ports	1
Number of Terminals	16
Number of Words	4 words
Number of Words Code	4
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4X4
Output Characteristics	OPEN-COLLECTOR
Output Enable	NO
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Other Memory ICs
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
