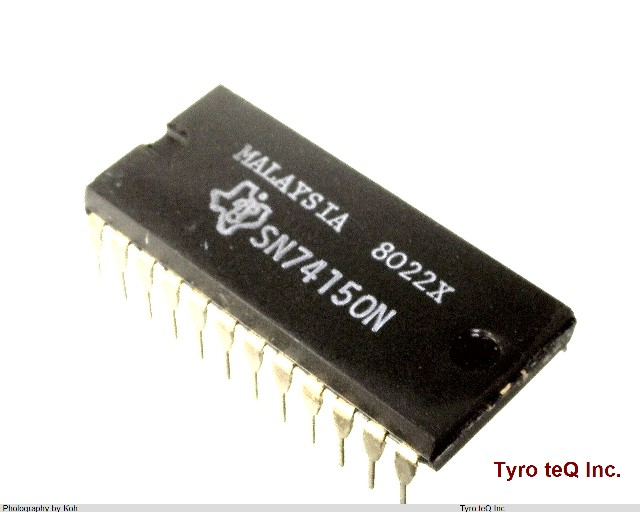

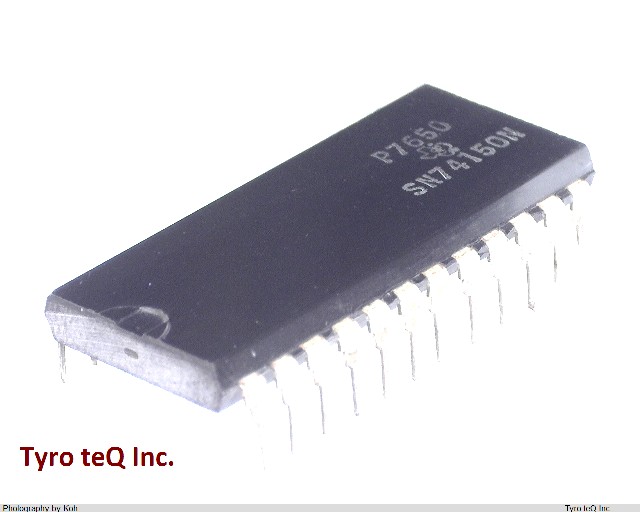

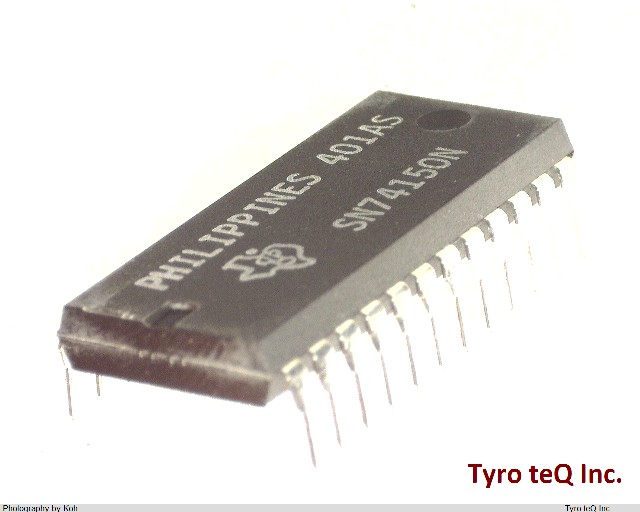

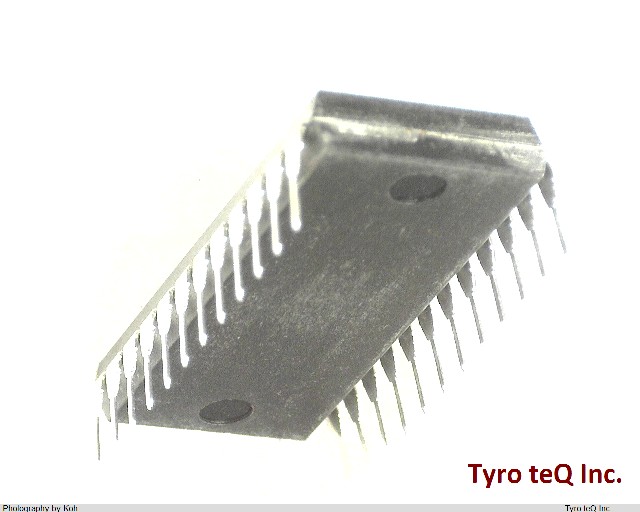

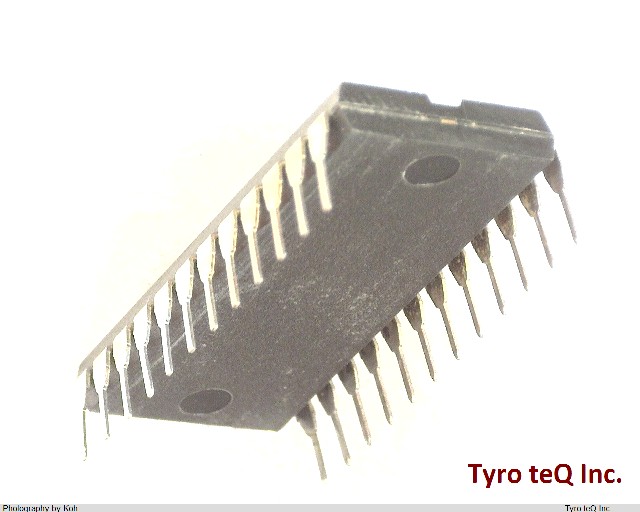

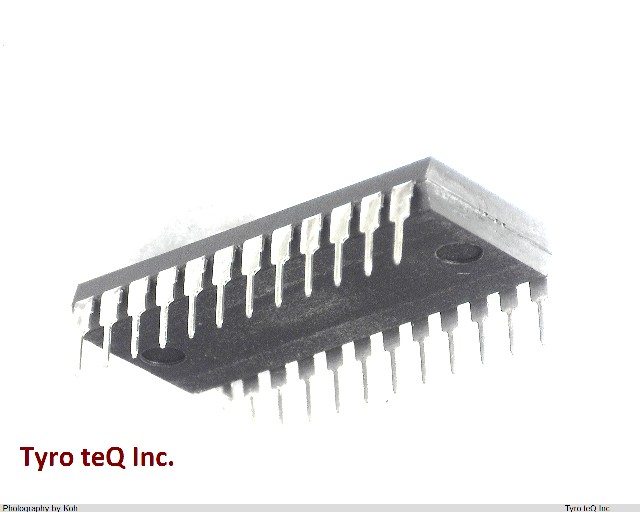

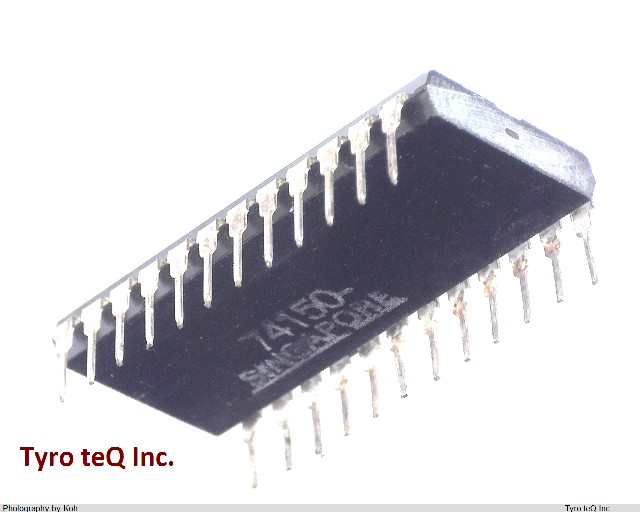

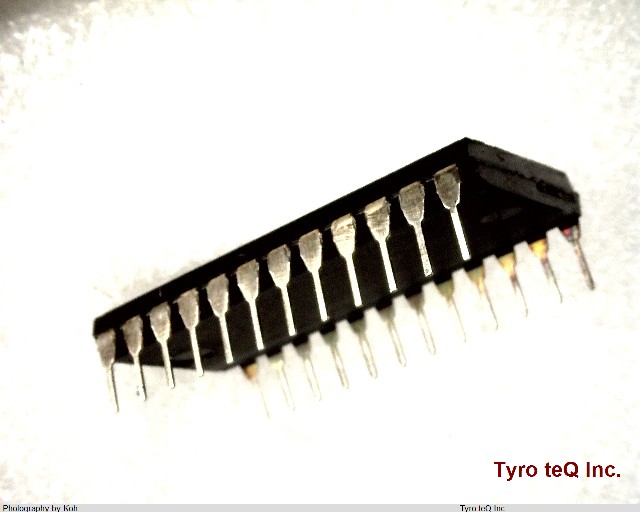

SN74150N データシート

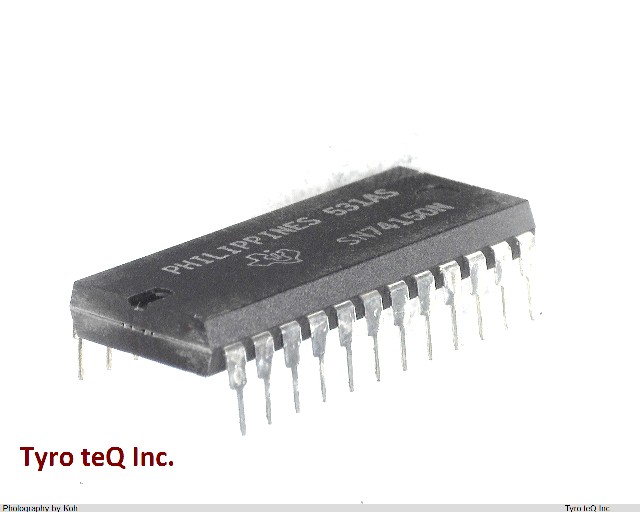

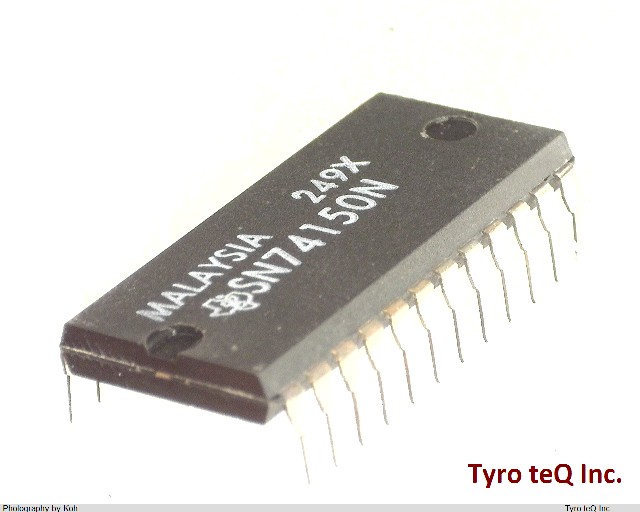

Name: SN74150N
Brand: TI
SKU: 290033159-0000-0000-0000

SN74150N - TI の商品詳細ページです。

２営業日以内に回答いたします

標準TTL　トランジスタ・トランジスタ・ロジック|4ビット-16入力データセレクタ|パッケージ：PDIP | 梱包：Tube

SN74150N の詳細情報

型番	SN74150N
メーカー	TI
種別	標準TTL
データシート
Additional Feature	SN54S15J, SNJ54S15J THIS PARTS ARE REMOVED BECAUSE OF LEAF CLASS ISSUE
Family	TTL/H/L
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e4
Length	31.75 mm
Load Capacitance (CL)	15 pF
Logic IC Type	MULTIPLEXER
Number of Functions	1
Number of Inputs	16
Number of Outputs	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	68 mA
Propagation Delay (tpd)	20 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Multiplexer/Demultiplexers
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
