SN7406N データシート

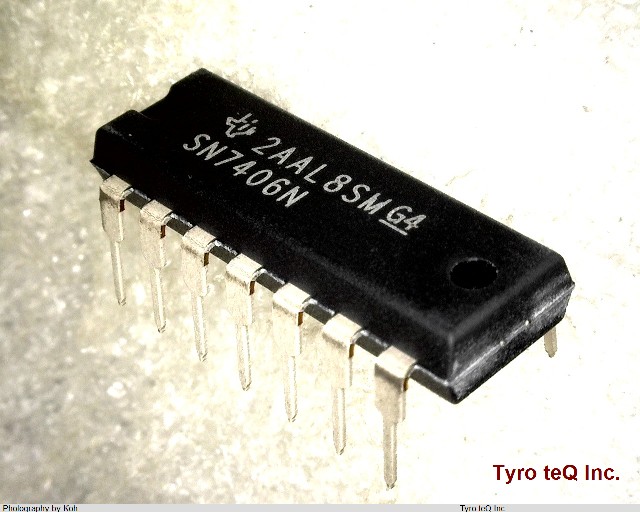

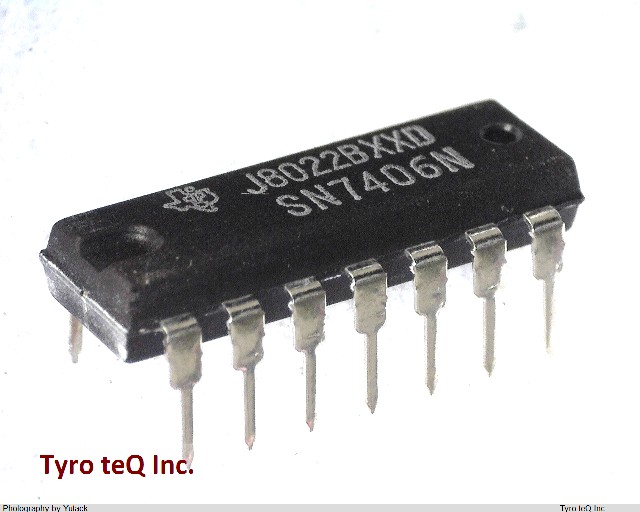

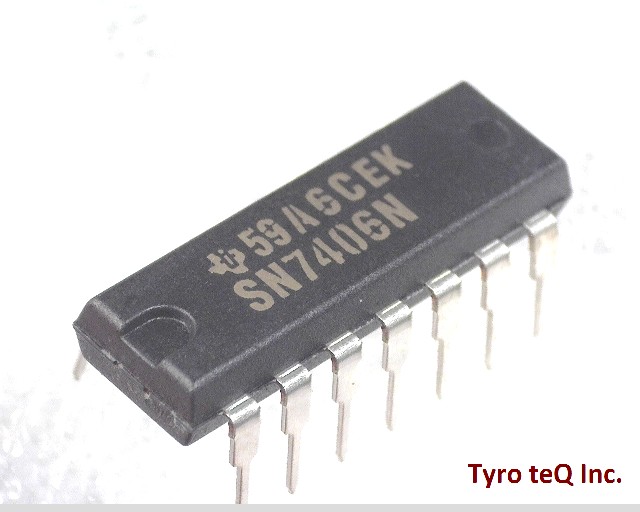

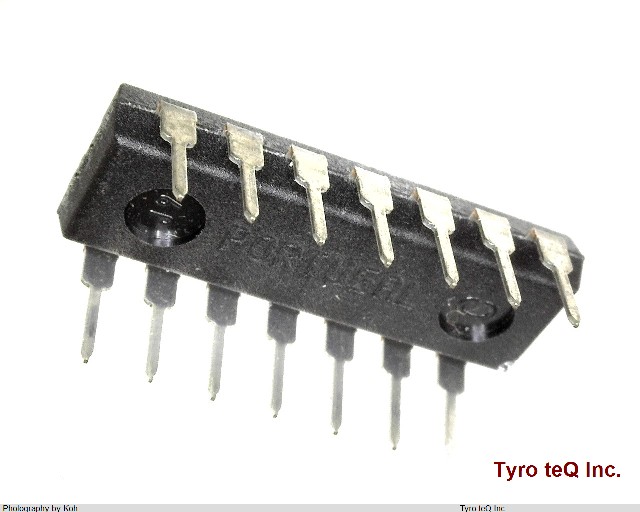

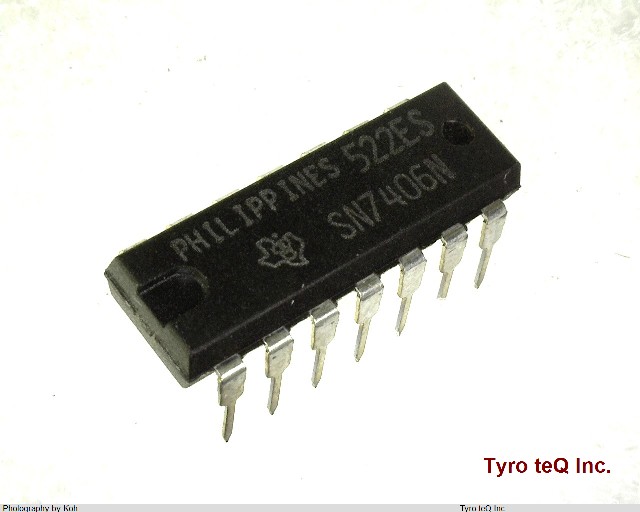

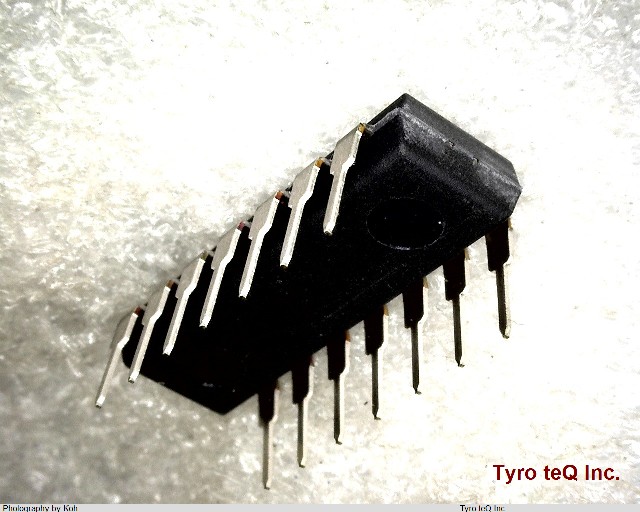

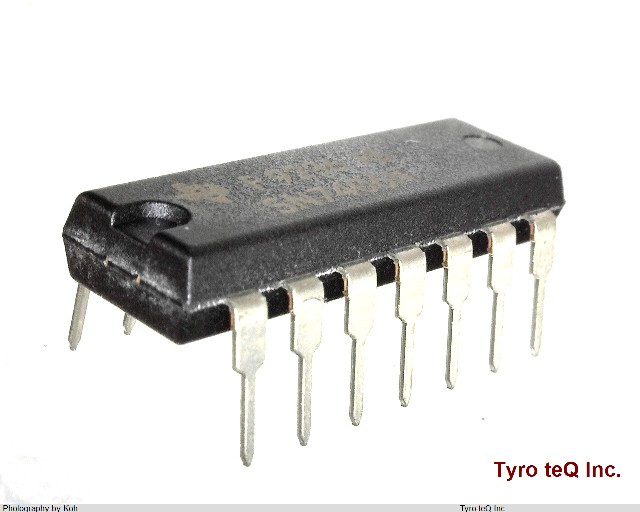

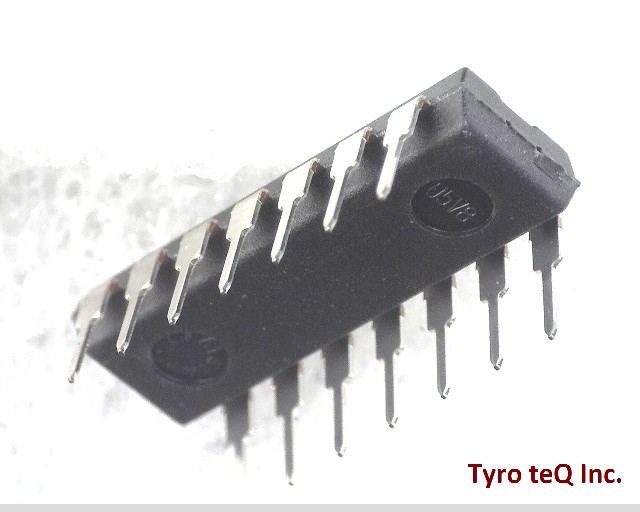

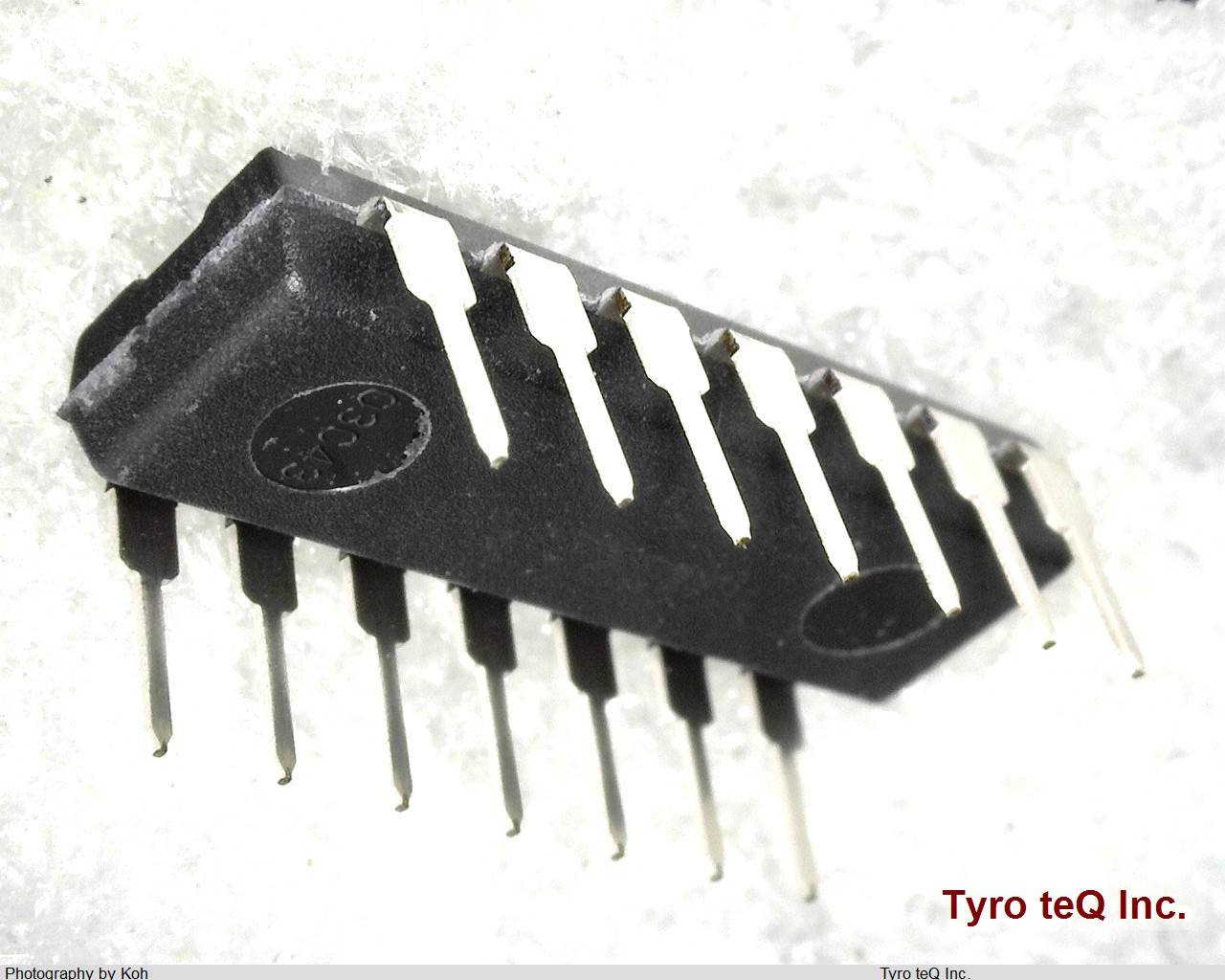

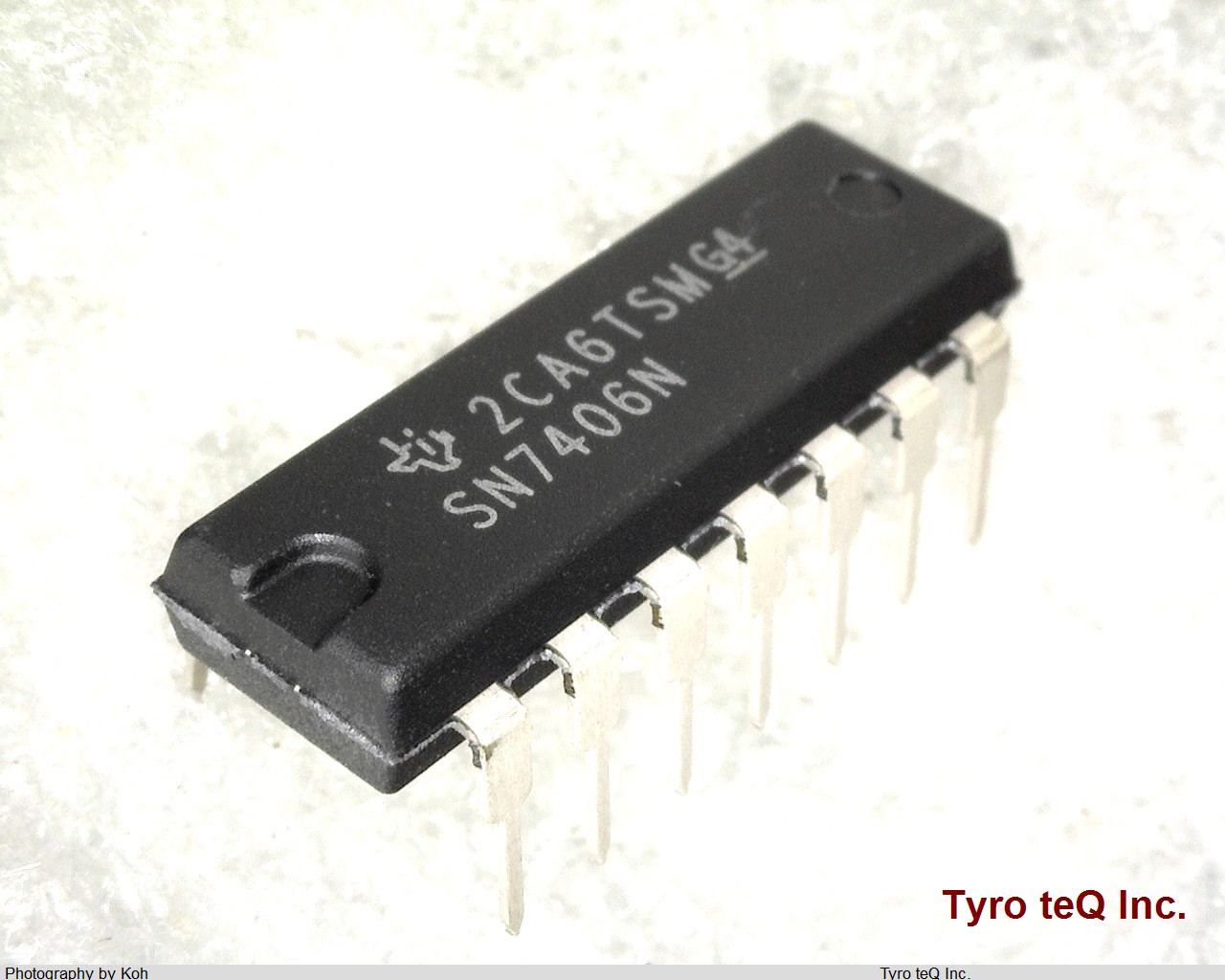

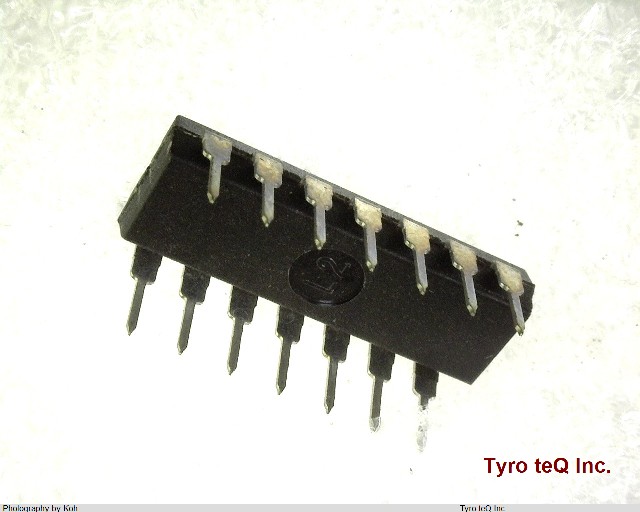

Name: SN7406N
Brand: TI
SKU: 290000307-0000-0000-0000

SN7406N - TI の商品詳細ページです。

２営業日以内に回答いたします

標準TTL　トランジスタ・トランジスタ・ロジック|6回路Inverter(出力がオープンコレクタ、高電圧対応)|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN7406N の詳細情報

型番	SN7406N
メーカー	TI
種別	標準TTL
データシート
Additional Feature	IOL = 40MA @ VOL = 0.7V; IOH = 0.25MA @ VOH = 30V
Family	7406
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e4
Length	10.2 mm
Load Capacitance (CL)	15 pF
Logic IC Type	INVERTER
Max I(ol)	0.016 Amp
Moisture Sensitivity Level	1
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	51 mA
Prop. Delay@Nom-Sup	23 ns
Propagation Delay (tpd)	23 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
