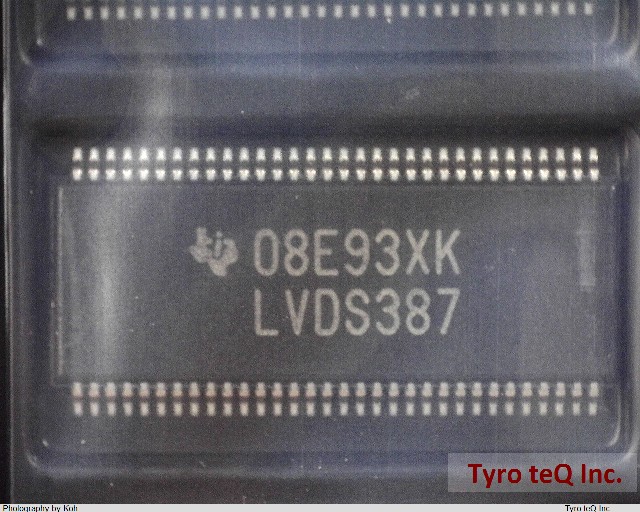

SN65LVDS387DGG データシート

Name: SN65LVDS387DGG
Brand: TI
SKU: 290109440-0000-0000-0000

SN65LVDS387DGG - TI の商品詳細ページです。

２営業日以内に回答いたします

SN65LVDS387DGG の詳細情報

型番	SN65LVDS387DGG
メーカー	TI
データシート
Differential Output	YES
Driver Number of Bits	16
High Level Input Current-Max	2.0E-5 Amp
Input Characteristics	STANDARD
Interface IC Type	LINE DRIVER
Interface Standard	EIA-644; TIA-644
JESD-30 Code	R-PDSO-G64
JESD-609 Code	e4
Length	17 mm
Moisture Sensitivity Level	2
Number of Functions	16
Number of Terminals	64
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	0.247 V
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP64,.32,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	1.2 mm
Sub Category	Line Driver or Receivers
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Supply Voltage1-Max	3.6 V
Supply Voltage1-Min	3 V
Supply Voltage1-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	2.9 ns
Width	6.1 mm
