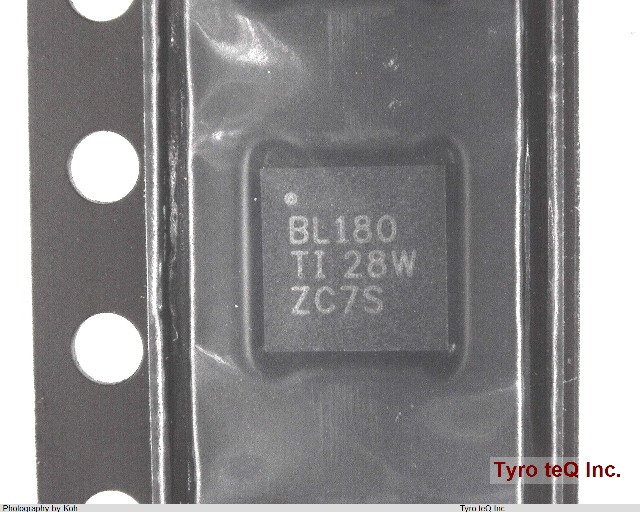

SN65LBC180RSAT データシート

Name: SN65LBC180RSAT
Brand: TI
SKU: 290109100-0000-0000-0000

SN65LBC180RSAT - TI の商品詳細ページです。

２営業日以内に回答いたします

SN65LBC180RSAT の詳細情報

型番	SN65LBC180RSAT
メーカー	TI
データシート
Additional Feature	TRISTATABLE RECEIVER; 1 RECEIVER ACTIVE UNDER SHUTDOWN
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max	0.0001 Amp
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-485; ISO 8482
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e4
Length	4 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	1.1 V
Output Characteristics	3-STATE
Output Low Current-Max	0.008 Amp
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC16,.16SQ,25
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	33 ns
Receiver Number of Bits	1
Seated Height-Max	1 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	4 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.25 V
Supply Voltage1-Min	4.75 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	18 ns
Width	4 mm
