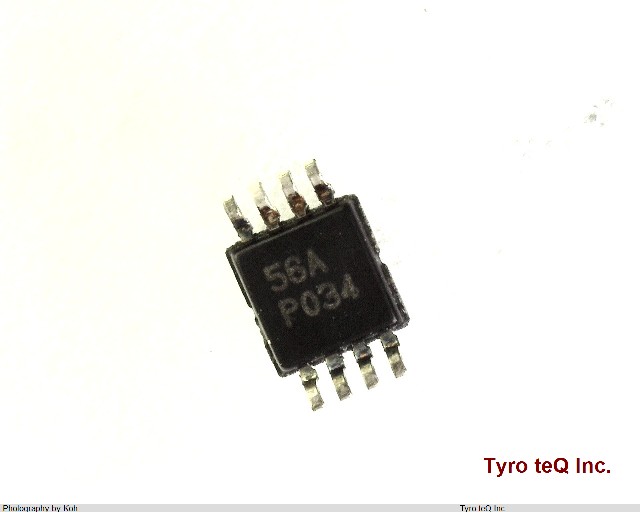

SN65HVD75DGKR

Name: SN65HVD75DGKR
Brand: TI
SKU: 290454644-0000-0000-0000

SN65HVD75DGKR - TI の商品詳細ページです。

２営業日以内に回答いたします

SN65HVD75DGKR の詳細情報

型番	SN65HVD75DGKR
メーカー	TI
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	1.5 V
Output Low Current-Max	0.008 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	70 ns
Receiver Number of Bits	1
Seated Height-Max	1.1 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	0.95 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Supply Voltage1-Max	3.6 V
Supply Voltage1-Min	3 V
Supply Voltage1-Nom	3.3 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	17 ns
Width	3 mm
