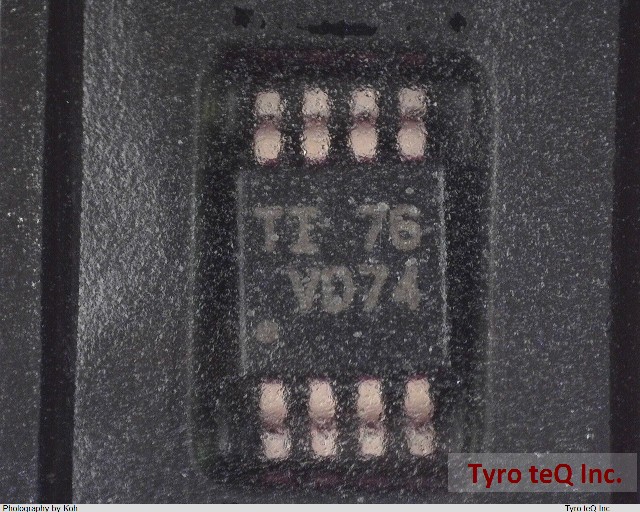

SN65HVD74DGKR

Name: SN65HVD74DGKR
Brand: TI
SKU: 290470301-0000-0000-0000

SN65HVD74DGKR - TI の商品詳細ページです。

２営業日以内に回答いたします

SN65HVD74DGKR の詳細情報

型番	SN65HVD74DGKR
メーカー	TI
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-485
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Receive Delay-Max	90 ns
Receiver Number of Bits	1
Seated Height-Max	1.1 mm
Supply Current-Max	1.1 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Supply Voltage1-Max	3.6 V
Supply Voltage1-Min	3 V
Supply Voltage1-Nom	3.3 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	20 ns
Width	3 mm
