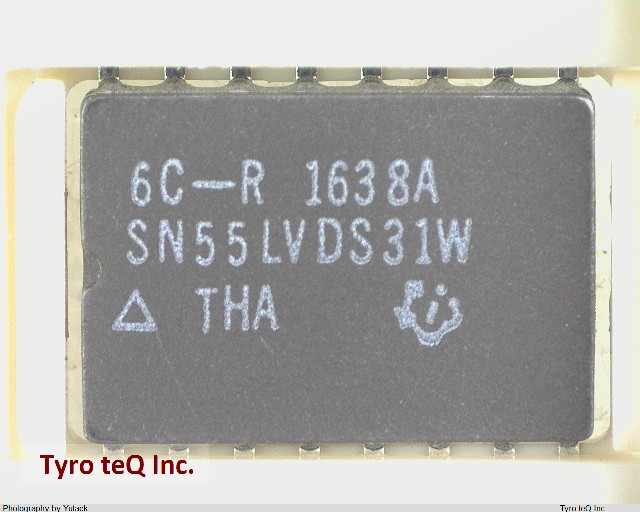

SN55LVDS31W データシート

Name: SN55LVDS31W
Brand: TI
SKU: 290108540-0000-0000-0000

SN55LVDS31W - TI の商品詳細ページです。

２営業日以内に回答いたします

SN55LVDS31W の詳細情報

型番	SN55LVDS31W
メーカー	TI
データシート
Differential Output	YES
Driver Number of Bits	4
High Level Input Current-Max	2.0E-5 Amp
Input Characteristics	STANDARD
Interface IC Type	LINE DRIVER
Interface Standard	EIA-644; TIA-644
JESD-30 Code	R-GDFP-F16
JESD-609 Code	e0
Length	10.16 mm
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Out Swing-Min	0.247 V
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DFP
Package Equivalence Code	FL16,.25
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	2.03 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	35 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Supply Voltage1-Max	3.6 V
Supply Voltage1-Min	3 V
Supply Voltage1-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	FLAT
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	4.5 ns
Width	6.73 mm
