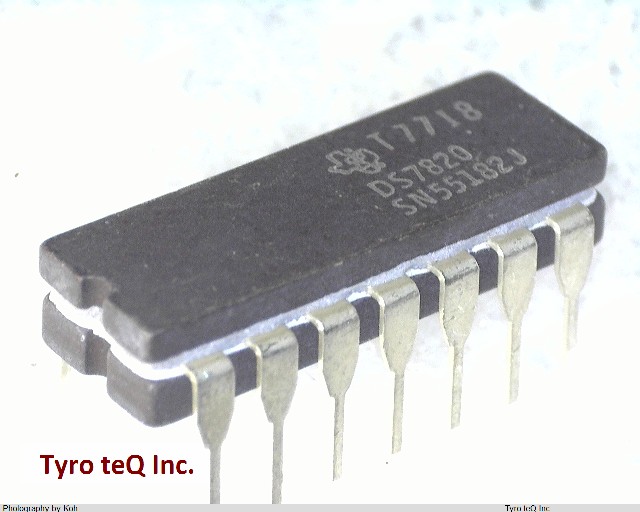

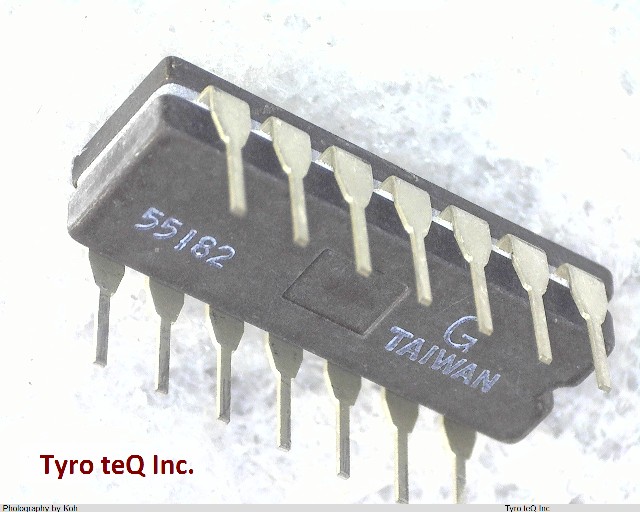

SN55182J データシート

Name: SN55182J
Brand: TI
SKU: 290216015-0000-0000-0000

SN55182J - TI の商品詳細ページです。

２営業日以内に回答いたします

SN55182J の詳細情報

型番	SN55182J
メーカー	TI
データシート
Additional Feature	BUILT-IN LINE TERMINATION; RESPONSE CONTROL
Differential Output	NO
Input Characteristics	DIFFERENTIAL
Interface IC Type	LINE RECEIVER
Interface Standard	GENERAL PURPOSE
JESD-30 Code	R-GDIP-T14
JESD-609 Code	e0
Length	19.56 mm
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Characteristics	TOTEM-POLE
Output Low Current-Max	0.016 Amp
Output Polarity	TRUE
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	45 ns
Receiver Number of Bits	2
Seated Height-Max	5.08 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	28 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
