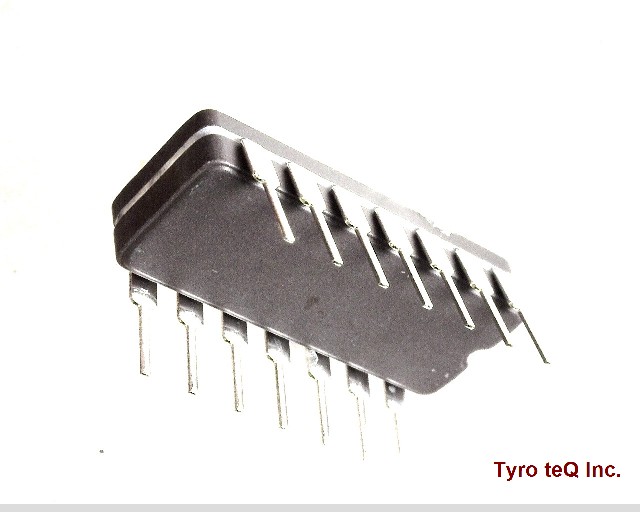

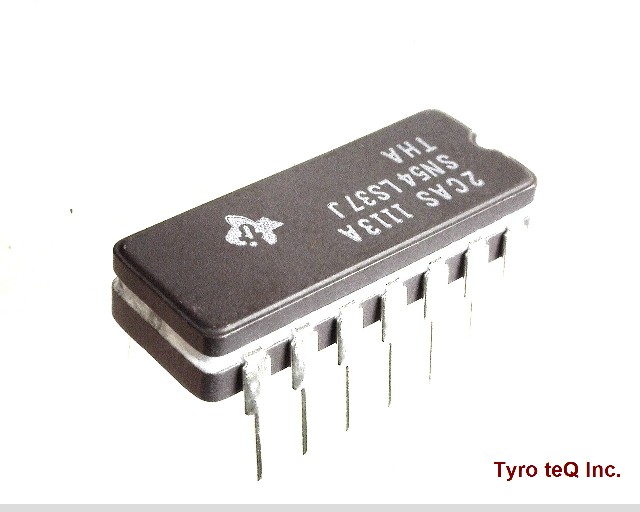

SN54LS37J

Name: SN54LS37J
Brand: TI
SKU: 290455699-0000-0000-0000

SN54LS37J - TI の商品詳細ページです。

２営業日以内に回答いたします

CDIP チューブ品動作温度 -55℃ to 125℃

SN54LS37J の詳細情報

型番	SN54LS37J
メーカー	TI
Additional Feature	IOH = 1.2MA @ VOH = 3.5V; IOL = 12MA @ VOL = 0.4V
Family	LS
JESD-30 Code	R-GDIP-T14
JESD-609 Code	e0
Length	19.495 mm
Load Capacitance (CL)	45 pF
Logic IC Type	NAND GATE
Max I(ol)	0.0012 Amp
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	12 mA
Prop. Delay@Nom-Sup	24 ns
Propagation Delay (tpd)	24 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Screening Level	38535Q/M;38534H;883B
Seated Height-Max	5.08 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	MILITARY
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
