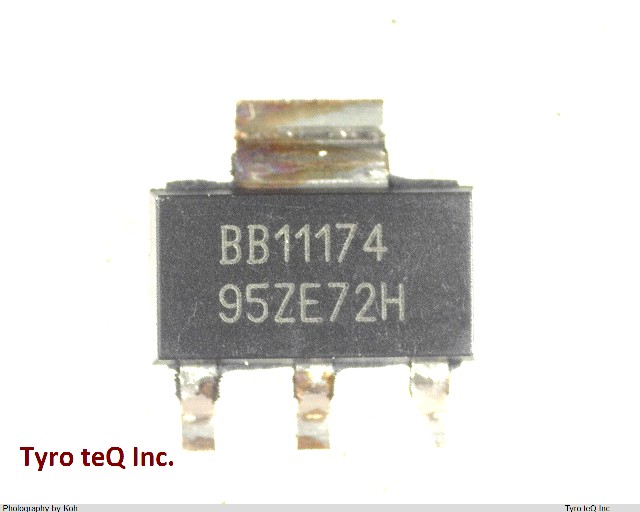

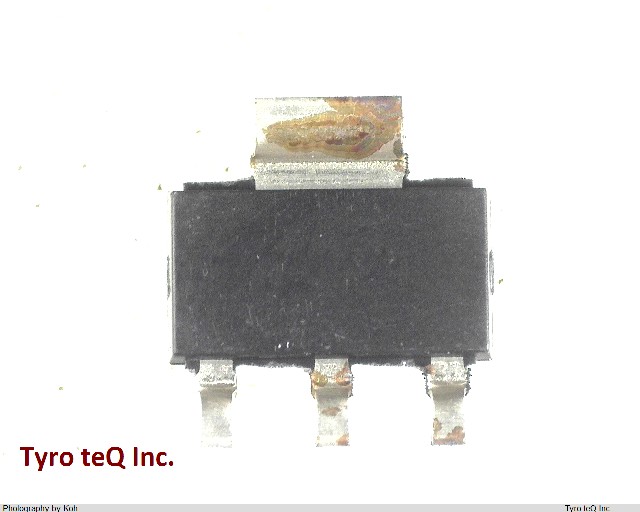

REG1117-3.3 データシート

Name: REG1117-3.3
Brand: TI
SKU: 280412374-0000-0000-0000

REG1117-3.3 - TI の商品詳細ページです。

２営業日以内に回答いたします

この商品のお問い合わせ

REG1117-3.3 の詳細情報

仕様・詳細
メーカー情報

型番	REG1117-3.3
メーカー	TI
カテゴリ	レギュレータ
データシート
Additional Features
Adjustability	FIXED
Description	シングル出力 LDO、800mA、固定(3.3V)、内部電流制限、過熱過負荷保護
Dropout Voltage1-Max	1.2 V
Dropout Voltage1-Nom	1.1 V
Estimated Package Size (WxL)(mm2)	[pf]4SOT-223[/pf]: 3.5 x 6.5: 36 mm2, [pf]3DDPAK/TO-263[/pf]: 8.41 x 10.18: 106 mm2
Fixed Output Options(V)	3.3
Input Voltage Absolute-Max	15 V
Input Voltage-Max	10 V
Input Voltage-Min	4.8 V
Iout(Max)(A)	0.8
JESD-30 Code	R-PDSO-G4
JESD-609 Code	e0
Length	6.5 mm
Line Regulation-Max	0.007 %
Load Regulation-Max	0.012 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature Range(C)
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.8 A
Output Options	Adjustable Output, Fixed Output
Output Voltage1-Max	3.36 V
Output Voltage1-Min	3.24 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Rating	Catalog
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.8 mm
Status	ACTIVE
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Vin(Max)(V)	15
Vin(Min)(V)	3.8
Voltage Tolerance-Max	1.8 %
Vout(Max)(V)	3.3
Vout(Min)(V)	3.3
Width	3.5 mm
