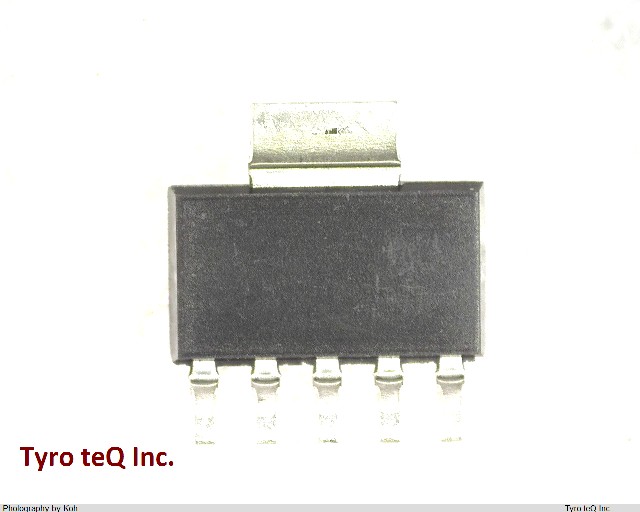

REG104GA-5 データシート

Name: REG104GA-5
Brand: TI
SKU: 280000683-0000-0000-0000

REG104GA-5 - TI の商品詳細ページです。

２営業日以内に回答いたします

REG104GA-5 の詳細情報

型番	REG104GA-5
メーカー	TI
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.5 V
Dropout Voltage1-Nom	0.23 V
Input Voltage Absolute-Max	16 V
Input Voltage-Max	15 V
Input Voltage-Min	5.5 V
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	6.5 mm
Line Regulation-Max	0.175 %
Load Regulation-Max	0.175 %
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature, TJ-Max	85 Cel
Operating Temperature, TJ-Min	-55 Cel
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	1 A
Output Voltage1-Max	5.15 V
Output Voltage1-Min	4.825 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223-5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	NMOS
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	2 %
Width	3.5 mm
