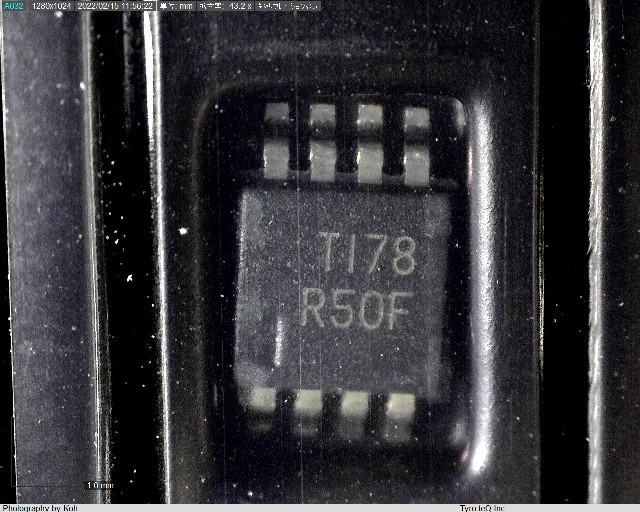

REF5050IDGKT データシート

Name: REF5050IDGKT
Brand: TI
SKU: 280281888-0000-0000-0000

REF5050IDGKT - TI の商品詳細ページです。

２営業日以内に回答いたします

REF5050IDGKT の詳細情報

型番	REF5050IDGKT
メーカー	TI
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	5.005 V
Output Voltage-Min	4.995 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	2.7 V
Surface Mount	YES
Temp Coef of Voltage-Max	3 ppm/Cel
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trim/Adjustable Output	YES V
Voltage Tolerance-Max	0.1 %
Width	3 mm
