REF102BP の詳細情報

  • 仕様・詳細
  • メーカー情報

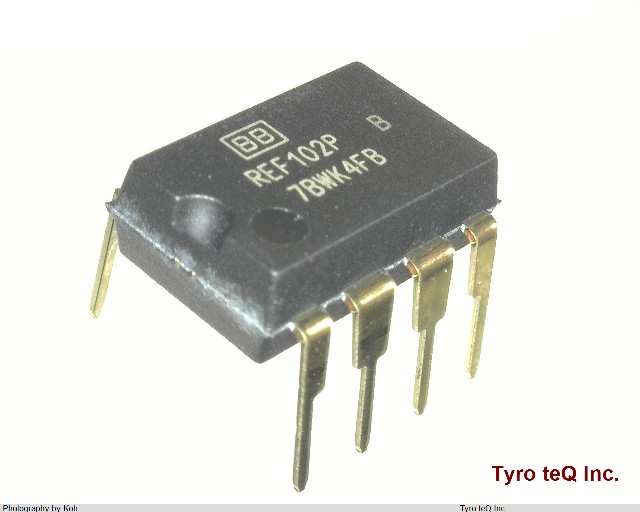

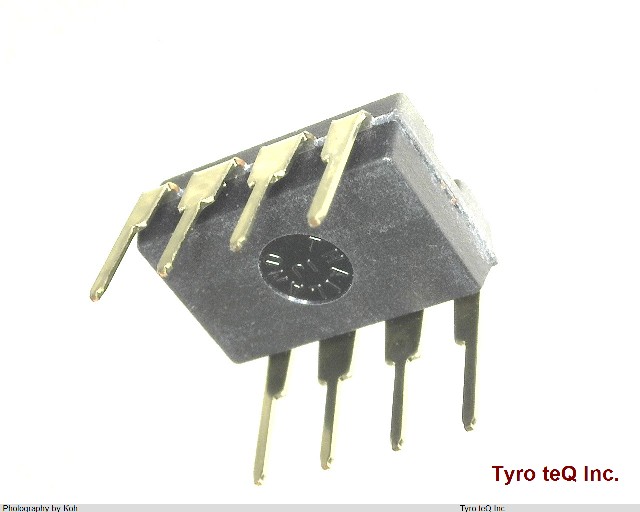

型番REF102BP
メーカーTI
データシートProduct_list_pdf
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.81 mm
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -25 Cel
Output Voltage-Max 10.005 V
Output Voltage-Min 9.995 V
Output Voltage-Nom 10 V
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Voltage References
Supply Current-Max (Isup) 1.4 mA
Supply Voltage-Max (Vsup) 36 V
Supply Voltage-Min (Vsup) 11.4 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Temp Coef of Voltage-Max 5 ppm/Cel
Temperature Grade OTHER
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trim/Adjustable Output NO V
Voltage Tolerance-Max 0.05 %
Width 7.62 mm
