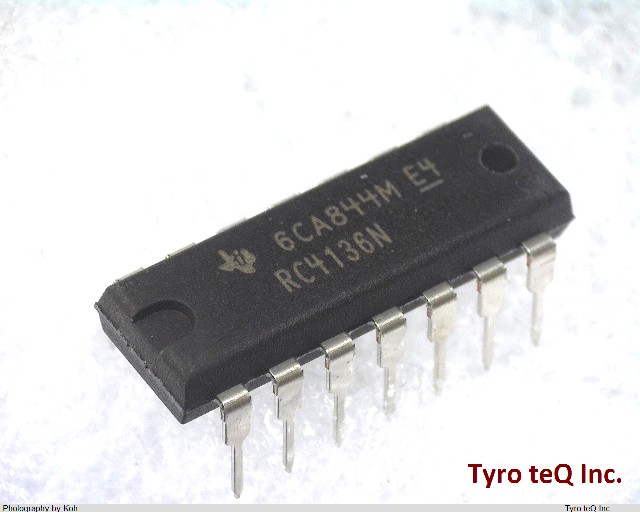

RC4136N

Name: RC4136N
Brand: TI
SKU: 280415878-0000-0000-0000

RC4136N - TI の商品詳細ページです。

２営業日以内に回答いたします

RC4136N の詳細情報

型番	RC4136N
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.5 uA
Bias Current-Max (IIB) @25C	0.5 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.2 uA
Input Offset Voltage-Max	6000 uV
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	10.2 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Slew Rate-Nom	1 V/us
Sub Category	Operational Amplifier
Supply Current-Max	11.28 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	3000 kHz
Voltage Gain-Min	15000
Wideband	NO
Width	5.3 mm
