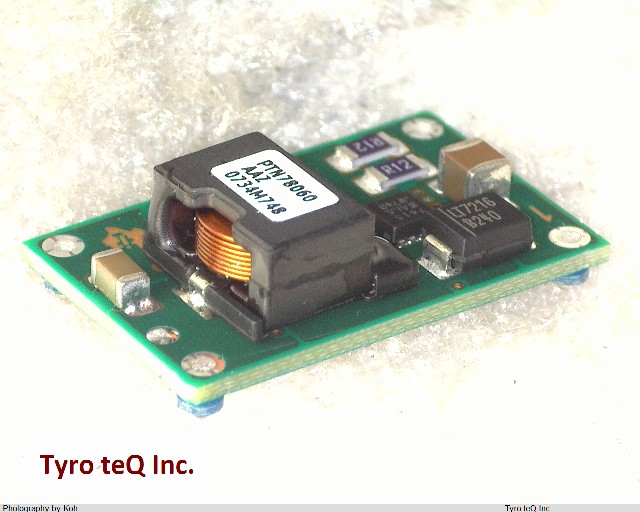

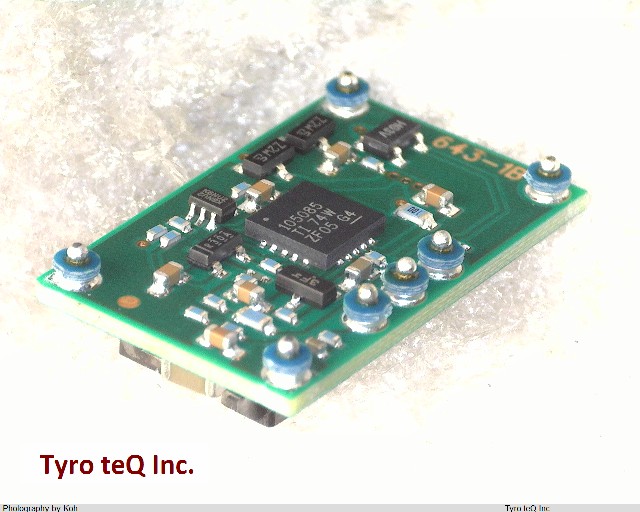

PTN78060AAZ データシート

Name: PTN78060AAZ
Brand: TI
SKU: 260071055-0000-0000-0000

PTN78060AAZ - TI の商品詳細ページです。

２営業日以内に回答いたします

PTN78060AAZ の詳細情報

型番	PTN78060AAZ
メーカー	TI
データシート
Additional Feature	OUTPUT VOLTAGE ADJUST RANGE -15V TO -3V
Analog IC - Other Type	SWITCHING REGULATOR
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	29 V
Input Voltage-Min	9 V
Input Voltage-Nom	20 V
JESD-30 Code	R-PDMA-B7
JESD-609 Code	e1
Length	25.27 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	7
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Output Voltage-Max	-3 V
Output Voltage-Min	-15 V
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	9.57 mm
Surface Mount	YES
Switcher Configuration	INVERTER
Switching Frequency-Max	0.66 kHz
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	BALL
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.75 mm
