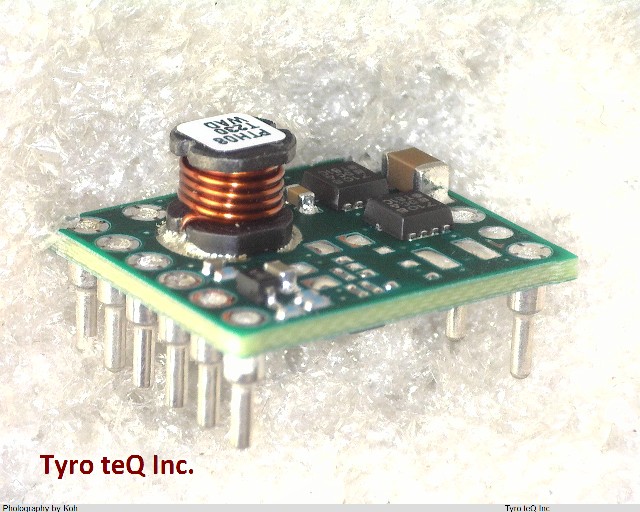

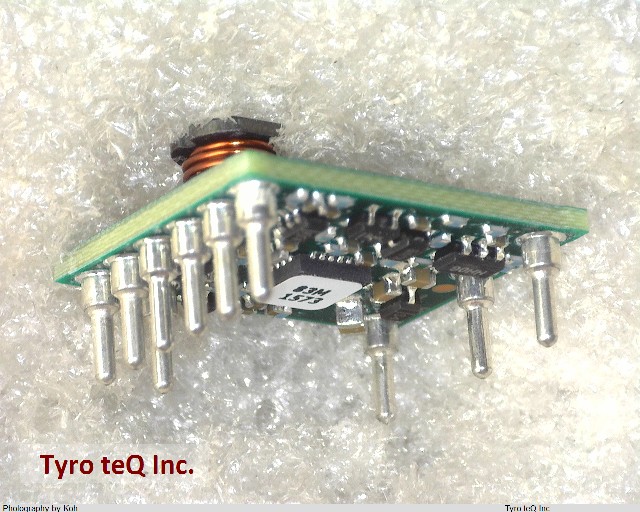

PTH08T230WAD データシート

Name: PTH08T230WAD
Brand: TI
SKU: 260070611-0000-0000-0000

PTH08T230WAD - TI の商品詳細ページです。

２営業日以内に回答いたします

PTH08T230WAD の詳細情報

型番	PTH08T230WAD
メーカー	TI
データシート
Additional Feature	REMOTE SHUTDOWN
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Approvals	UL, CSA V
Control Mode	CURRENT-MODE
Efficiency (Main Output)	95 %
Height	7.5 mm
Input Voltage-Max	14 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-XDMA-T10
JESD-609 Code	e3
Length	18.92 mm
Line Regulation-Max	0.09 %
Load Regulation-Max	0.06 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	6 A
Output Voltage-Max	5.5 V
Output Voltage-Min	0.7 V
Output Voltage-Nom	3.3 V
Package Body Material	UNSPECIFIED
Package Code	XMA
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Protection(s)	OUTPUT OVER CURRENT;THERMAL V
Qualification Status	Not Qualified
Ripple Voltage (Main Out)	0.01167 Vrms
Seated Height-Max	8 mm
Sub Category	Power Supply Modules
Surface Mount	NO
Switcher Configuration	BUCK
Switching Frequency-Max	400 kHz
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	19.8 W
Trim/Adjustable Output	YES V
Width	15.75 mm
