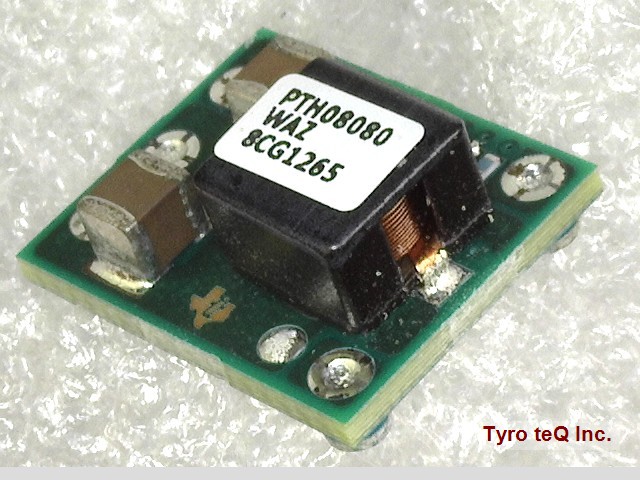

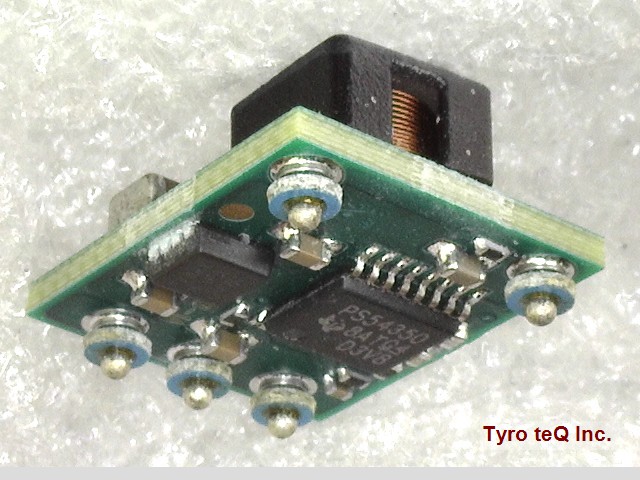

PTH08080WAZ データシート

Name: PTH08080WAZ
Brand: TI
SKU: 260070594-0000-0000-0000

PTH08080WAZ - TI の商品詳細ページです。

２営業日以内に回答いたします

PTH08080WAZ の詳細情報

型番	PTH08080WAZ
メーカー	TI
データシート
Additional Feature	OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 18V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Input Voltage-Max	18 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDMA-P5
JESD-609 Code	e1
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2.25 A
Output Voltage-Max	5.5 V
Output Voltage-Min	0.9 V
Output Voltage-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Surface Mount	NO
Switcher Configuration	BUCK
Switching Frequency-Max	300 kHz
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	PIN/PEG
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
